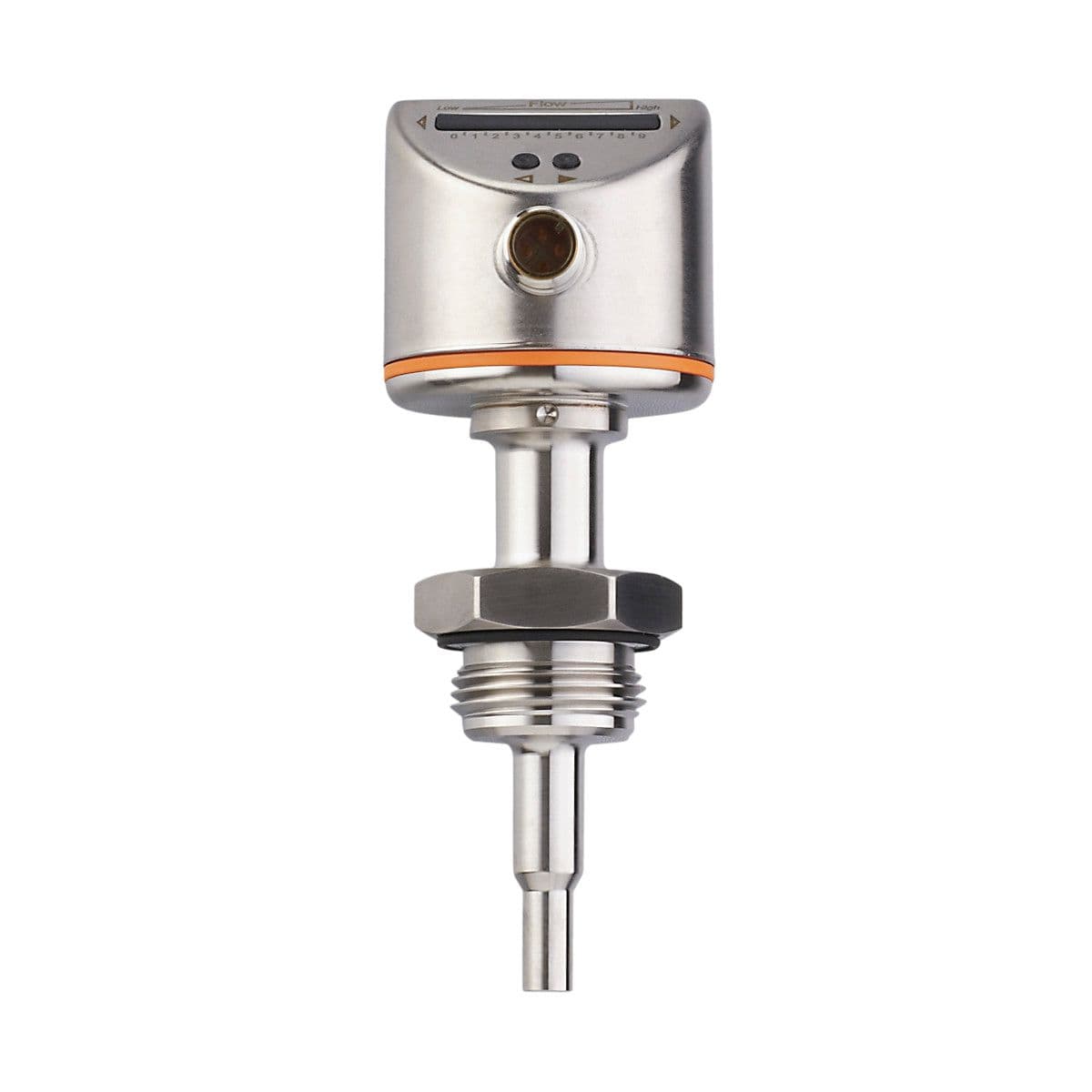

SI6200 ifm Electronic Electronic Components
Part#:SI6200
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Flow monitor, Hygienic design for the requirements of the food and beverage industry, Number of inputs and outputs: Number of digital outputs: 1, Process connection: Aseptoflex, System: gold-plated contacts, Application: hygienic systems, Medium temperatu
Product Details
- Short-circuit protection yes
- Protection class III
- Output function normally open / closed; (configurable)
- Number of inputs and outputs Number of digital outputs: 1
- Output signal switching signal
- Medium temperature [°C] -25...95; (for SIP process: ...140 °C)
- Total number of outputs 1
- Operating voltage [V] 19...36 DC
- Max. voltage drop switching output DC [V] 2.5
- Pressure rating [bar] 30
- Electrical design PNP
- Overload protection yes
- Power-on delay time [s] 10
- Reverse polarity protection yes
- Application hygienic systems
- Process connection Aseptoflex
- Current consumption [mA] < 60
- Permanent current rating of switching output DC [mA] 250
- System gold-plated contacts
- Number of digital outputs 1
- Type of short-circuit protection yes (non-latching)
