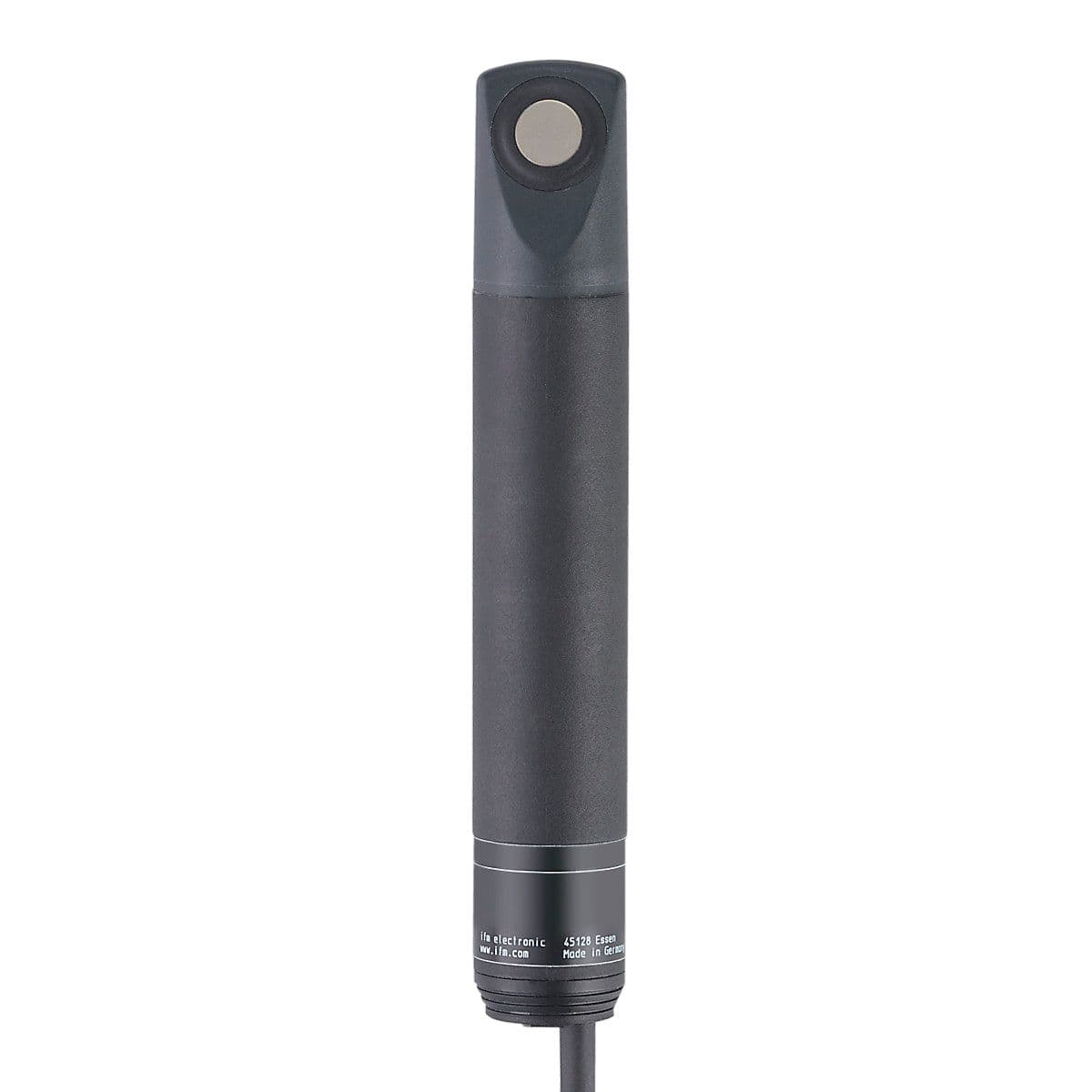

SL5102 ifm Electronic Electronic Components
Part#:SL5102
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Airflow monitor, Reliable airflow monitoring, Number of inputs and outputs: Number of relay outputs: 1, Process connection: Ø 23 mm, Medium temperature [°C]: -10...50, Pressure rating [bar]: 1
Product Details
- Switching function flow monitoring relay de-energized when flow is present
- Process connection Ø 23 mm
- Contact rating 3 A (30 V DC / 250 V AC)
- Pressure rating [bar] 1
- Output signal switching signal
- Power-on delay time [s] 60
- Operating voltage tolerance [%] -25...25
- Operating voltage [V] 24 DC
- Min. insulation resistance [MΩ] 100; (500 V DC)
- Number of inputs and outputs Number of relay outputs: 1
- Number of relay outputs 1
- Medium temperature [°C] -10...50
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
