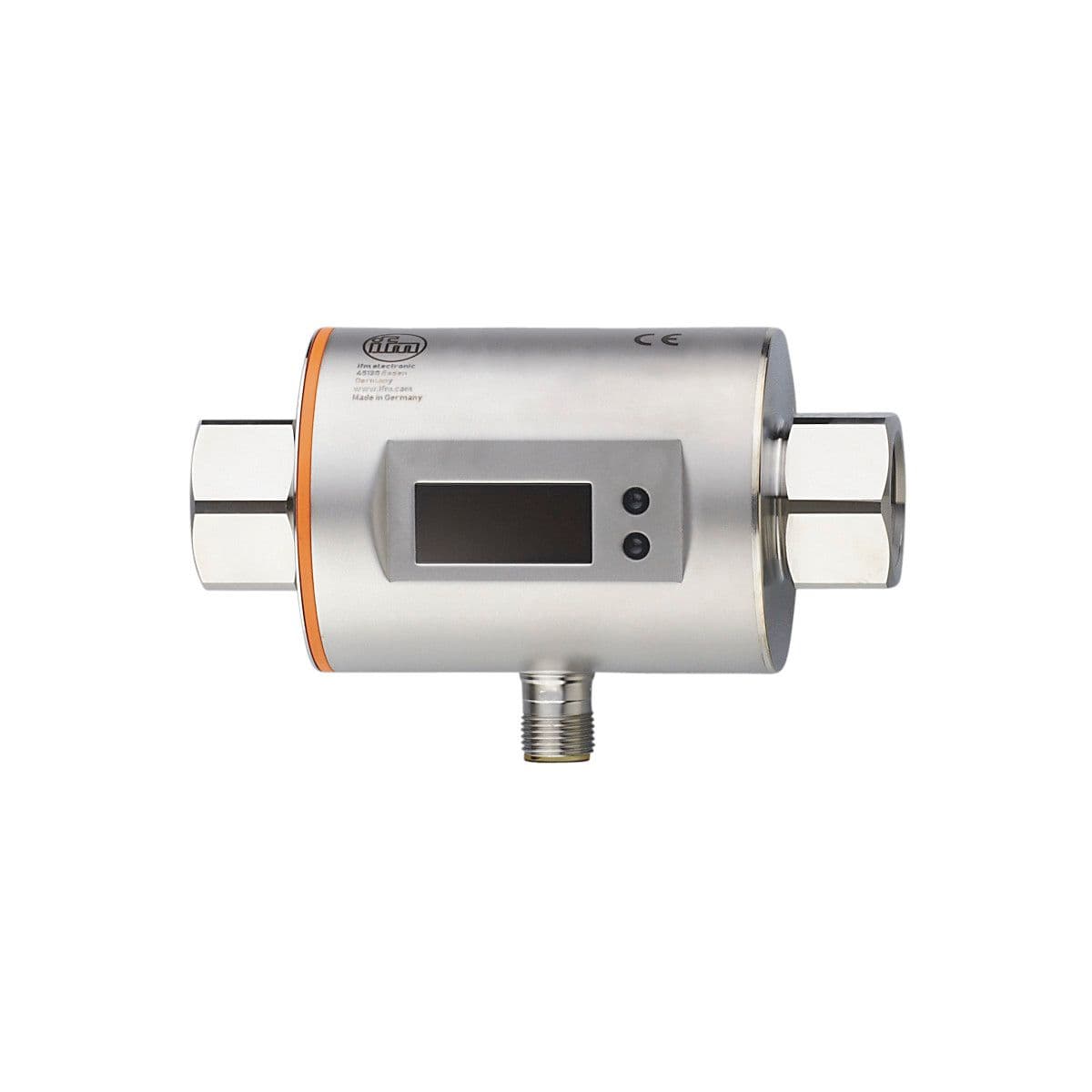

SM6604 ifm Electronic Electronic Components
Part#:SM6604
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Magnetic-inductive flow meter, Precise measurement of flow, consumption and medium temperature, Number of inputs and outputs: Number of analog outputs: 2, Measuring range: 0.1...25 l/min 0.03...6.6 gpm, Process connection: threaded connection 1/2" NPT DN1
Product Details
- Process connection threaded connection 1/2" NPT DN15
- Total number of outputs 2
- Medium temperature [°C] -10...70
- System gold-plated contacts
- Analog current output [mA] 4...20; (scalable)
- Pressure rating [Mpa] 1.6
- Note on media conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
- Reverse polarity protection yes
- Media Conductive liquids; water; water-based media
- Protection class III
- Measuring range 0.1...25 l/min 0.03...6.6 gpm
- MAWP (for applications according to CRN) [bar] 17.7
- Output signal analog signal
- Overload protection yes
- Pressure rating [bar] 16
- Power-on delay time [s] 5
- Number of analog outputs 2
- Application for industrial applications
- Current consumption [mA] 120; (24 V)
- Max. load [Ω] 500
- Number of inputs and outputs Number of analog outputs: 2
- Operating voltage [V] 20...30 DC; (according to EN 50178 SELV/PELV)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
