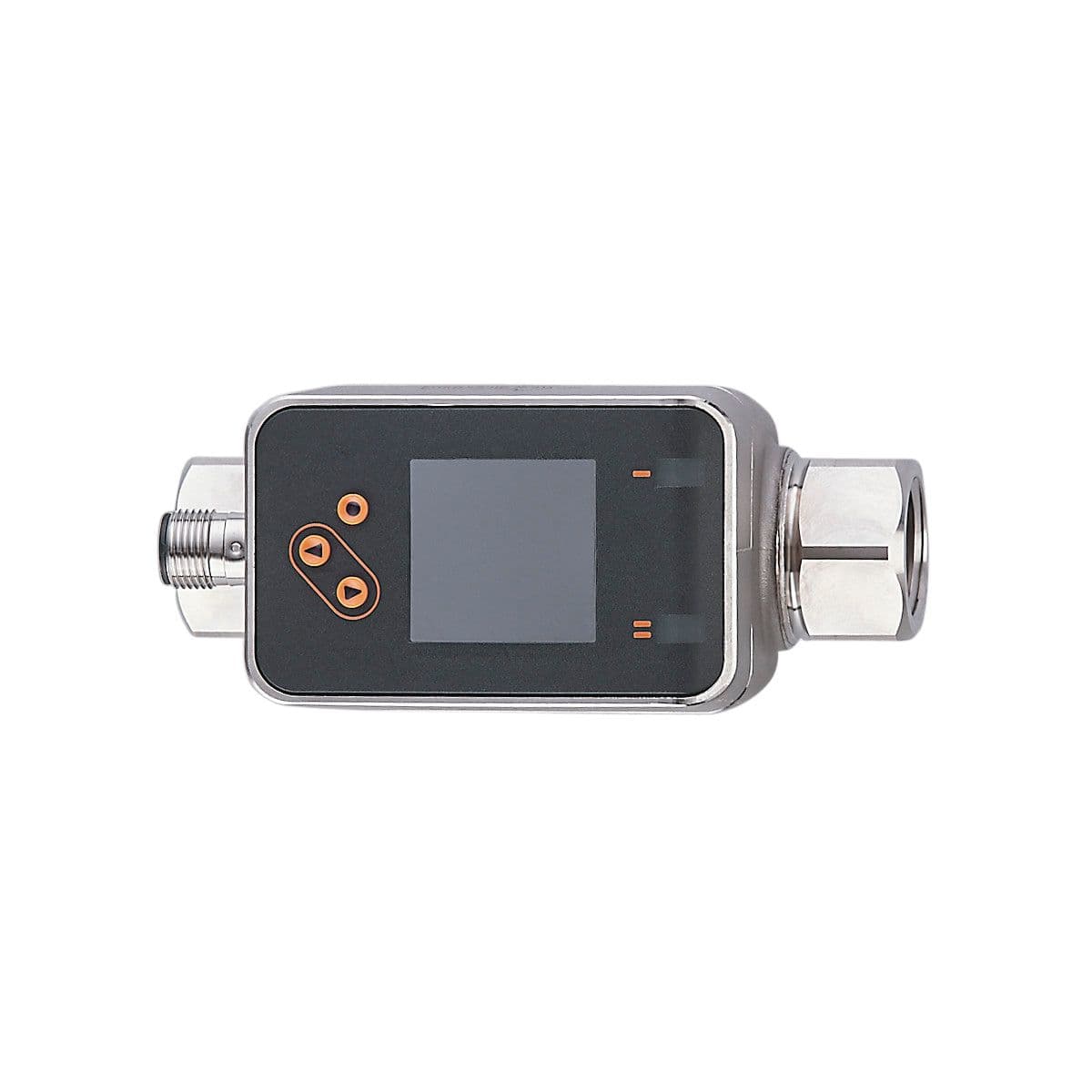

SM6621 ifm Electronic Electronic Components

Product Details

• Media
  Conductive liquids; water; water-based media
• Inputs
  counter reset
• Number of analog outputs
  1
• Overload protection
  yes
• Note on media
  conductivity: ≥ 20 µS/cm viscosity: < 70 mm²/s (40 °C)
• Permanent current rating of switching output DC [mA]
  100
• Protection class
  III
• Output function
  normally open / closed; (configurable)
• Analog current output [mA]
  4...20; (scalable)
• System
  gold-plated contacts
• Reverse polarity protection
  yes
• Short-circuit protection
  yes
• Process connection
  1/2" NPT DN15
• Electrical design
  PNP/NPN
• Type of short-circuit protection
  yes (non-latching)
• Operating voltage [V]
  18...30 DC; (according to EN 50178 SELV/PELV)
• Measuring range
  0.05...35 l/min 0.003...2.1 m³/h 0.6...555 gph 0.01...9.25 gpm
• Pressure rating [Mpa]
  1.6
• Number of digital outputs
  2
• Max. voltage drop switching output DC [V]
  2
Medium temperature [°F]
-4...194
Power-on delay time [s]
5
Max. load [Ω]
500
Output signal
switching signal; analog signal; pulse signal; IO-Link; frequency signal; (configurable)
Pulse output
flow rate meter
Total number of outputs
2
Current consumption [mA]
< 80
Number of inputs and outputs
Number of digital outputs: 2; Number of analog outputs: 1
Pressure rating [bar]
16
