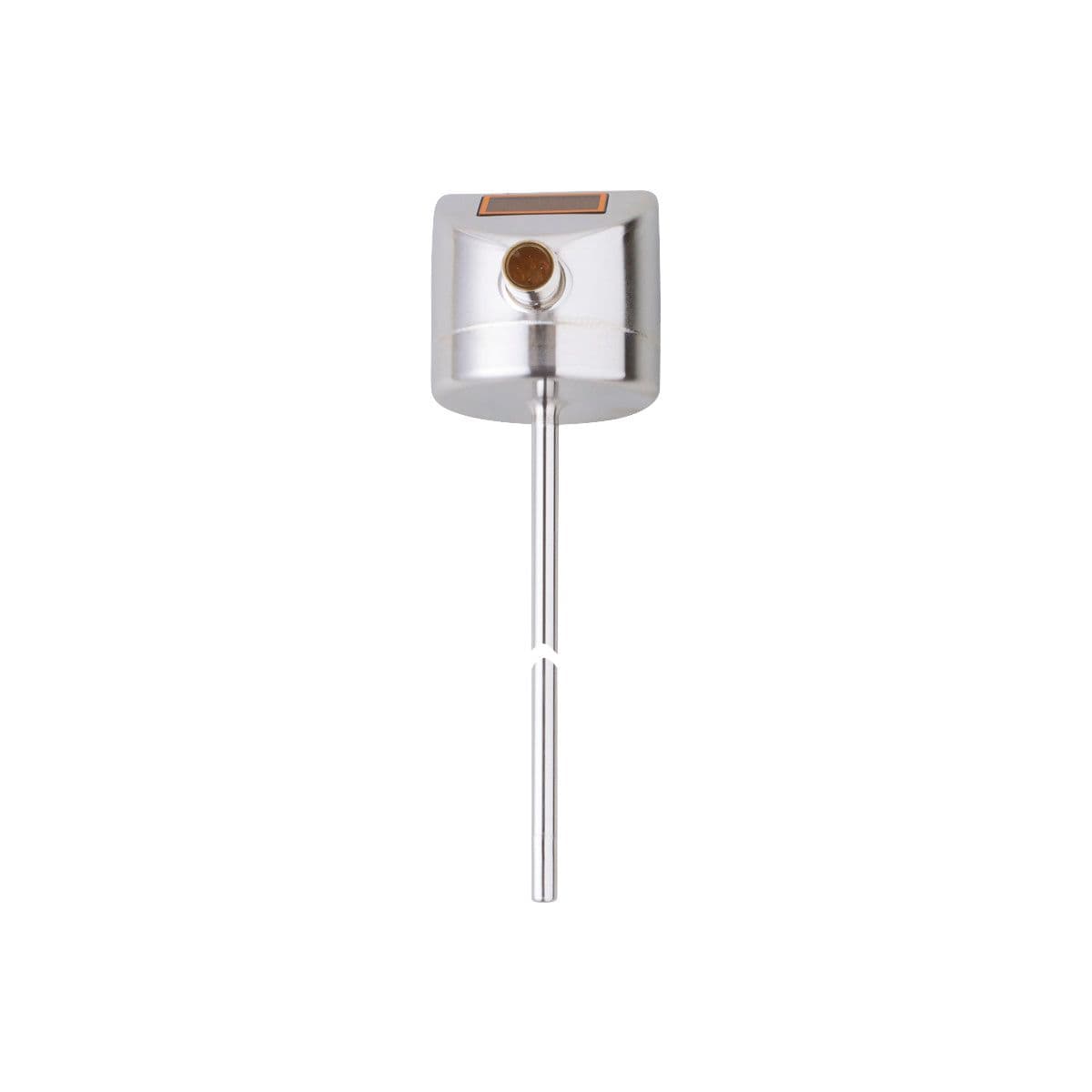

TD2213 ifm Electronic Electronic Components
Part#:TD2213
Manufacturer:ifm Electronic
Category:Electronic Components
Product Lifecycle:Active
Product description
Temperature Transmitter with Display, Hygienic design for the requirements of the food and beverage industry, Number of inputs and outputs: Number of analog outputs: 1, Measuring range: -50...150 °C -58...302 °F, Process connection: Diameter Ø 6 mm, Insta
Product Details
- Measuring element 1 x Pt 1000; (to DIN EN 60751, class A)
- Measuring range -50...150 °C -58...302 °F
- Analog current output [mA] 4...20
- Total number of outputs 1
- Pressure rating [bar] 160
- Output signal analog signal; IO-Link; (configurable)
- Operating voltage [V] 18...32 DC; (cULus - Class 2 source required)
- Installation length EL [mm] 50
- Current consumption [mA] < 50
- Protection class III
- Number of inputs and outputs Number of analog outputs: 1
- Max. load [Ω] 300
- Process connection Diameter Ø 6 mm
- Power-on delay time [s] 2
- Short-circuit protection yes
- Media liquids and gases
- Reverse polarity protection yes
- Overload protection yes
- Vacuum resistance [mbar] -1000
- Number of analog outputs 1
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
Manufacturer warranty
TD2213 ifm Electronic
