LFL32 Leeson Mechanical Components

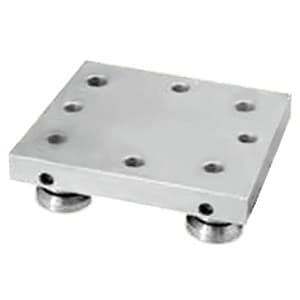

LFL32 on Advantage Electric Supply
Leeson

Part#:LFL32

Alt. Part#:4054364120993

Manufacturer:Leeson

Category:Mechanical Components

Product Lifecycle:Active

Product description

Series LF; 90MM Overall Length; 80MM Overall Width; 30MM Overall Height; Track Roller; 4 Track Rollers; 32MM Rail Width; Solid Section; Aluminum; Rect

Product Details

  • Material
    Aluminum
  • Rail Width
    1.26 Inch | 32 Millimeter
  • Overall Height
    1.181 Inch | 30 Millimeter
  • Overall Length
    3.543 Inch | 90 Millimeter
  • Shape
    Rectangular
  • Inch - Metric
    Metric
  • Other Features
    Open Carriage | Clearance Free | Optional Corrosion Resistance
  • Overall Width
    3.15 Inch | 80 Millimeter
  • Track Roller Yes/No
    Yes
  • Number of Track Rollers
    4
  • Section
    Solid
  • Weight / LBS
    0.882
  • Series
    LF
  • Product Type
    Track Roller Round Rail
  • Track Roller Number
    LFR50/8-KDD
  • Minimum Buy Quantity
    N/A
  • UNSPSC
    23153000
  • Weight / Kilogram
    0.4
  • Product Name
    Carriage
  • Brand
    INA

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

Manufacturer warranty
