RMEO35-XL Leeson Mechanical Components

Name: RMEO35-XL
Brand: Leeson

Part#:RMEO35-XL

Manufacturer:Leeson

Category:Mechanical Components

Product Lifecycle:Active

Product description

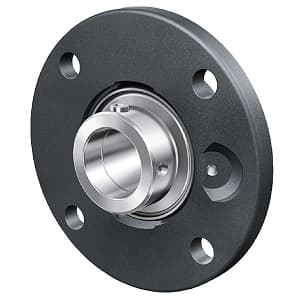

Flange Block Bearing; 4 Bolt Round Flange Cartridge; 35MM Bore; 143.5MM Bolt Circle Diameter; 99MM Bolt Spacing; 1 Piece Solid; Eccentric Collar; Cast Iron; Ball Bearing; Relubricatable; Double Lip Contact Land Riding Rubber Seal

Product Details

Cartridge Pilot Depth
0.276 Inch | 7 Millimeter
Bore
1.378 Inch | 35 Millimeter
Cartridge Pilot Diameter
3.937 Inch | 100 Millimeter
Bolt Spacing
3.898 Inch | 99 Millimeter
Other Features
Single Row | Centering Spigot
Length Thru Bore
2.031 Inch | 51.6 Millimeter
UNSPSC
31171501
Expansion / Non-expansion
Non-Expansion
Weight / Kilogram
2.5
Pilot Configuration
With Pilot
Mounting Method
Eccentric Collar
Weight / LBS
5.29
Housing Style
4 Bolt Round Flange Cartridge
Insert Part Number
GNE35KRRB
Number of Mounting Holes
4
Relubricatable
Yes
Brand
INA
Inch - Metric
Metric
Rolling Element
Ball Bearing
Seals
Double Lip Contact Land Riding Rubber

Housing Material

Cast Iron

Housing Configuration

1 Piece Solid

Minimum Buy Quantity

N/A

Mounting Bolts

19 Millimeter

Nominal Bolt Circle Diameter Round

5.6 Inch | 143.5 Millimeter

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
