H220945 Mersen Fuses
Product Details
- Current Rating 750 A
- Terminal Type End Contact with Threaded Holes
- Weight 1985.796 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Max. Rated Breaking Capacity DC 100kA
- Design Details gRB
- Sell Pack Length 7.95 in
- Indication System Yes
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Weight 4.374 lb
- Ampere Rating 750 A
- Product Length 5.16 in
- Sell Pack Height 3.62 in
- Fuse Size 123
- Catalogue No. D123GB75V750TF
- Product Height 3.03 in
- Indication System Type Striker
- Product Width 2.87 in
- Mounting Bolted
- Product Weight 4.374 lb
- Speed/Characteristic gR
- Body/Insulating Material Ceramic
- Sell Pack Quantity 1 EACH
- Rated voltage DC IEC 750 V
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Width 5 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of H220945 on Advantage Electric Supply is $2,981.40. Order now.
About the product

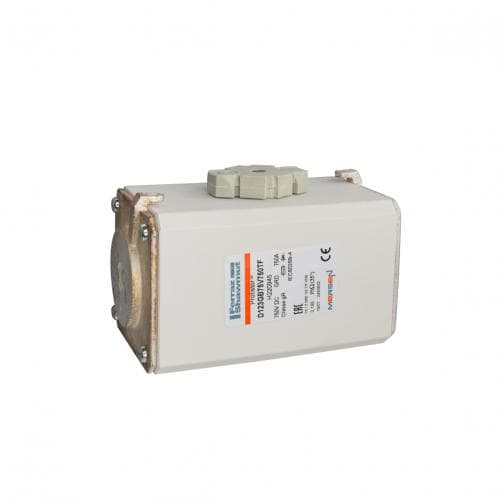

H220945 Mersen - Square Body High-Speed Fuse Protistor® Size 123 gR 750VDC IEC 750A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
*Multiple body sizes and terminals or blades combination
*Very low I²t
*Extremely fast acting
*Eliminate all overloads
*Excellent cycling capability
