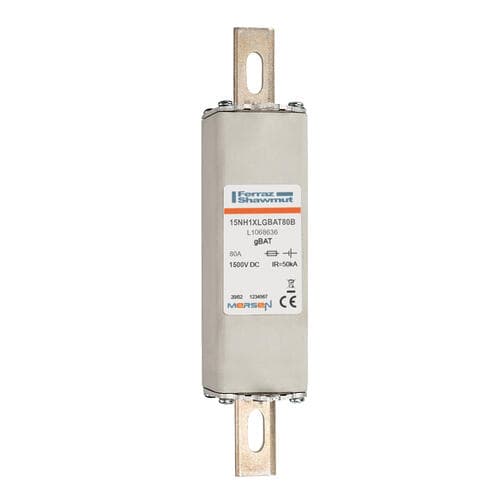

L1068636 Mersen Electronic Components
Part#:L1068636
Alt. Part#:3605340612042
Manufacturer:Mersen
Category:Electronic Components
Product Lifecycle:Active
Product description
NH-fuse-links gBAT 1500VDC direct mounting 1 80A
Product Details
- Speed/Characteristic gBAT
- Product Height 2.07 in
- Max. Rated Breaking Capacity DC 50 kA @ 1500 V, L/R = 2 ms
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Quantity 1 EACH
- Power Dissipation at Rated Current Value 25.5 W
- Ampere Rating 80 A
- Sell Pack Weight 1.521 lb
- Rated voltage DC IEC 1500 V
- Product Width 1.56 in
- Sell Pack Length 9.06 in
- Power Dissipation at Intermediate Current Value 10.3W @ 0.7 In W
- Catalogue No. 15NH1XLGBAT80B
- Product Weight 1.521 lb
- Mounting Clip
- Product Length 7.56 in
- Sell Pack Height 4.33 in
- Fuse Size 1XL
- Connection/Terminal Type DIN Type Blades
- Sell Pack Width 4.53 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
