Q300463 Mersen Fuses
Product Details
- Current Rating 400 A
- Terminal Type End Contact with Threaded Holes
- Weight 603.82 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Rated voltage AC IEC 690 V
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Quantity 3 EACH
- Indication System Type Striker
- Product Height 2.56 in
- Rated voltage AC UL 700 V
- AC Max I.R./Breaking Capacity: I1 200 kA
- Body/Insulating Material Ceramic
- Clearing I2t At Rated Voltage 90 kA²s
- Melting I2t 15 kA²s
- Product Weight 1.33 lb
- Sell Pack Weight 3.99 lb
- Speed/Characteristic aR
- Power Dissipation at Rated Current Value 72 W
- Product Width 2.32 in
- Mounting Bolted
- ROHS Compliant Yes
- Catalogue No. A070UD32TTI400
- Sell Pack Height 3.54 in
- Ampere Rating 400 A
- Indication System Yes
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Length 9.65 in
- Fuse Size 32
- Design Details Standard Terminal
- Product Length 1.99 in
- Sell Pack Width 5.71 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

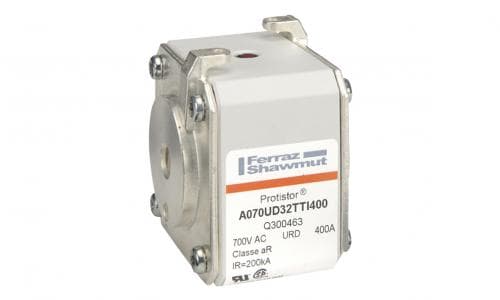

Q300463 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 400A With Striker Flush ends UNC threads
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
