STXT600Y10A Mersen Electronic Components

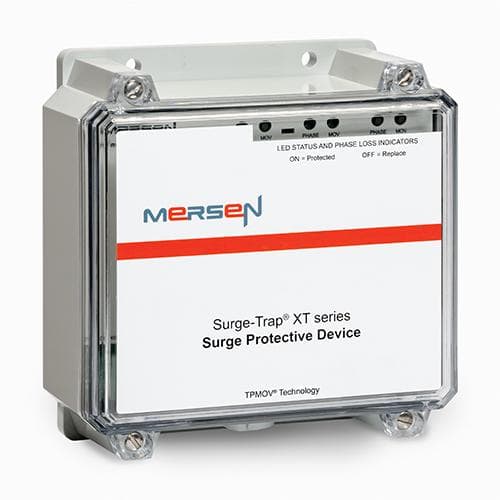

Mersen STXT600Y10A SPD - Type 1 ST-XT 600Y/347V L-L VPR 2500V L-L MCOV 840V 100 kA LED + Audible
Mersen

Part#:STXT600Y10A

Manufacturer:Mersen

Alt. Part#:782001471187

Product Lifecycle:Active

Get a quick Quote!

SPD - Type 1 ST-XT 600Y/347V L-L VPR 2500V L-L MCOV 840V 100 kA LED + Audible

About the manufacturer: Mersen is one of the manufacturers that offers Electronic Components that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the STXT600Y10A Mersen price in the box on the right side or send a quick quote.

Product Details

  • Sell Pack Length
    9.19 in
  • Sell Pack Height
    4 in
  • Sell Pack Weight
    3.99 lb
  • Sell Pack Width
    9.19 in
  • Sell Pack Quantity
    1 Each
  • Product Length
    7.4 in
  • Product Height
    3.68 in
  • Product Width
    7.08 in
  • Product Weight
    3.8 lb
  • VPR L-N
    1500 V
  • VPR N-G
    1500 V
  • VPR L-L
    2500 V
  • VPR L-G
    1500 V
  • MCOV L-N
    420 V
  • MCOV N-G
    420 V
  • MCOV L-L
    840 V
  • Connection/Terminal Type
    Box
  • Installation Mounting
    Panel or Wall Mount
  • MCOV L-G
    420 V
  • Short Circuit Current Rating (SCCR)
    200 kA
  • Housing Material
    Polycarbonate
  • Enclosure NEMA Type
    4X Non-Metallic
  • Indication System
    Yes
  • Indication System Type
    LED and Remote Audible Alarm
  • Frequency
    50/60 Hz
  • AC or DC
    AC
  • System Configuration
    3-Phase Wye
  • Nominal Discharge Current (In) (8/20)
    20 kA
  • Max Discharge Current : Imax (8/20)
    100 kA per phase
  • Protection Modes
    L-G, L-L, L-N, N-G
  • ROHS Compliant
    Yes
  • UL SPD Type
    Type 1
  • Nominal Operating Volt Rating (Un)
    600Y/347 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
