T300466 Mersen Fuses

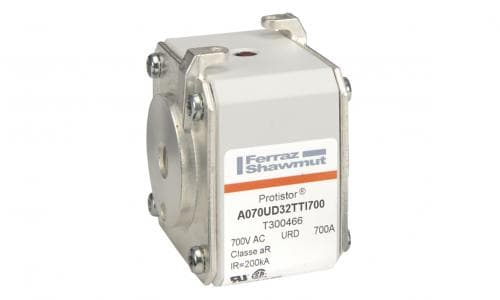

Mersen T300466 T300466 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 700A With Striker Flush ends UNC threads
Mersen

Part#:T300466

Manufacturer:Mersen

Alt. Part#:3605340328912

Product Lifecycle:Active

Get a quick Quote!

T300466 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 700A With Striker Flush ends UNC threads

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the T300466 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    700 A
  • Terminal Type
    End Contact with Threaded Holes
  • Weight
    603.82 g
  • Trip Class
    High Speed
  • Country Of Origin
    FR
  • Fuse Class
    Semiconductor
  • Sell Pack Height
    3.54 in
  • Sell Pack Length
    9.65 in
  • Product Height
    2.56 in
  • Sell Pack Weight
    3.99 lb
  • Sell Pack Width
    5.71 in
  • Sell Pack Quantity
    3 EACH
  • Product Length
    1.99 in
  • Product Width
    2.32 in
  • Product Weight
    1.33 lb
  • Body/Insulating Material
    Ceramic
  • Indication System
    Yes
  • Indication System Type
    Striker
  • Connection/Terminal Material
    Silver-Plated Brass
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Connection/Terminal Type
    End Contact with Threaded Holes
  • Design Details
    Standard Terminal
  • Power Dissipation at Rated Current Value
    100 W
  • Melting I2t
    76 kA²s
  • ROHS Compliant
    Yes
  • Rated voltage AC IEC
    690 V
  • Fuse Size
    32
  • Mounting
    Bolted
  • Ampere Rating
    700 A
  • Speed/Characteristic
    aR
  • Catalogue No.
    A070UD32TTI700
  • Rated voltage AC UL
    700 V
  • Clearing I2t At Rated Voltage
    440 kA²s

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


T300466 Description

T300466 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 700A With Striker Flush ends UNC threads

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability
