T301018 Mersen Fuses
Product Details
- Current Rating 125 A
- Terminal Type End Contact with Threaded Holes
- Weight 350.488 g
- Trip Class High Speed
- Country Of Origin FR,MX
- Fuse Class Semiconductor
- Rated voltage AC IEC 1250 V
- Indication System Type Striker
- Product Length 2.91 in
- Melting I2t 1310 A²s
- Catalogue No. A130UD70TTI125
- Sell Pack Width 3.35 in
- Rated voltage AC UL 1300 V
- Connection/Terminal Material Silver-Plated Brass
- Sell Pack Weight 2.315 lb
- Fuse Size 70
- Body/Insulating Material Ceramic
- Sell Pack Height 21.65 in
- Mounting Bolted
- Indication System Yes
- Product Height 1.95 in
- Ampere Rating 125 A
- AC Max I.R./Breaking Capacity: I1 200 kA
- Product Width 1.57 in
- Sell Pack Length 5.31 in
- Clearing I2t At Rated Voltage 10500 A²s
- Connection/Terminal Type End Contact with Threaded Holes
- Sell Pack Quantity 3 EACH
- Speed/Characteristic aR
- Power Dissipation at Rated Current Value 38 W
- Product Weight 0.772 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T301018 on Advantage Electric Supply is $921.61. Order now.
About the product

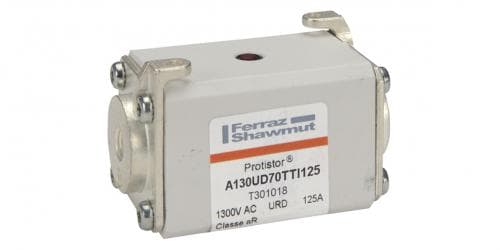

T301018 Mersen - Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 125A With Striker Flush ends UNC threads
Product type: Semiconductor Protection Fuses
The 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to VDE 636-23 and IEC 60269-4
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
*Increased technical performances: higher ratings and reduction in volume and weight
