T301294 Mersen Fuses
Product Details
- Current Rating 1000 A
- Terminal Type End Contact with Threaded Holes
- Weight 800.856 g
- Trip Class High Speed
- Country Of Origin FR,MX
- Fuse Class Semiconductor
- Rated voltage AC IEC 850 V
- Melting I2t 439 kA²s
- Connection/Terminal Type End Contact with Threaded Holes
- Product Height 2.48 in
- Sell Pack Weight 1.764 lb
- Speed/Characteristic aR
- Indication System Type Striker
- Sell Pack Quantity 1 EACH
- Mounting Bolted
- Catalogue No. PC72UD85V1000TF
- Power Dissipation at Rated Current Value 136 W
- Product Weight 1.764 lb
- Sell Pack Length 5.12 in
- Clearing I2t At Rated Voltage 2150 kA²s
- AC Max I.R./Breaking Capacity: I1 100 kA
- Product Length 2.91 in
- Sell Pack Height 3.15 in
- Rated voltage AC UL 900 V
- Ampere Rating 1000 A
- Connection/Terminal Material Silver-Plated Brass
- Body/Insulating Material Ceramic
- Fuse Size 72
- Indication System Yes
- Product Width 2.32 in
- Sell Pack Width 4.33 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T301294 on Advantage Electric Supply is $1,761.97. Order now.
About the product

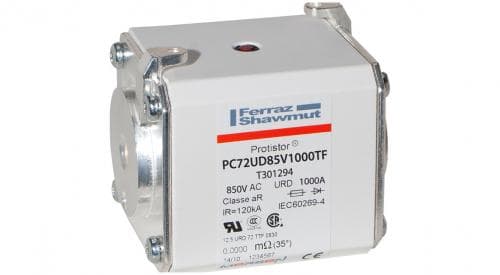

T301294 Mersen - Square Body High-Speed Fuse Protistor® Size 72 aR 850VAC IEC 900VAC UL 1000A With Striker Flush ends metric threads
Product type: Semiconductor Protection Fuses
These 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
