T331102 Mersen Fuse Holders
Part#:T331102
Alt. Part#:8430399000497
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description

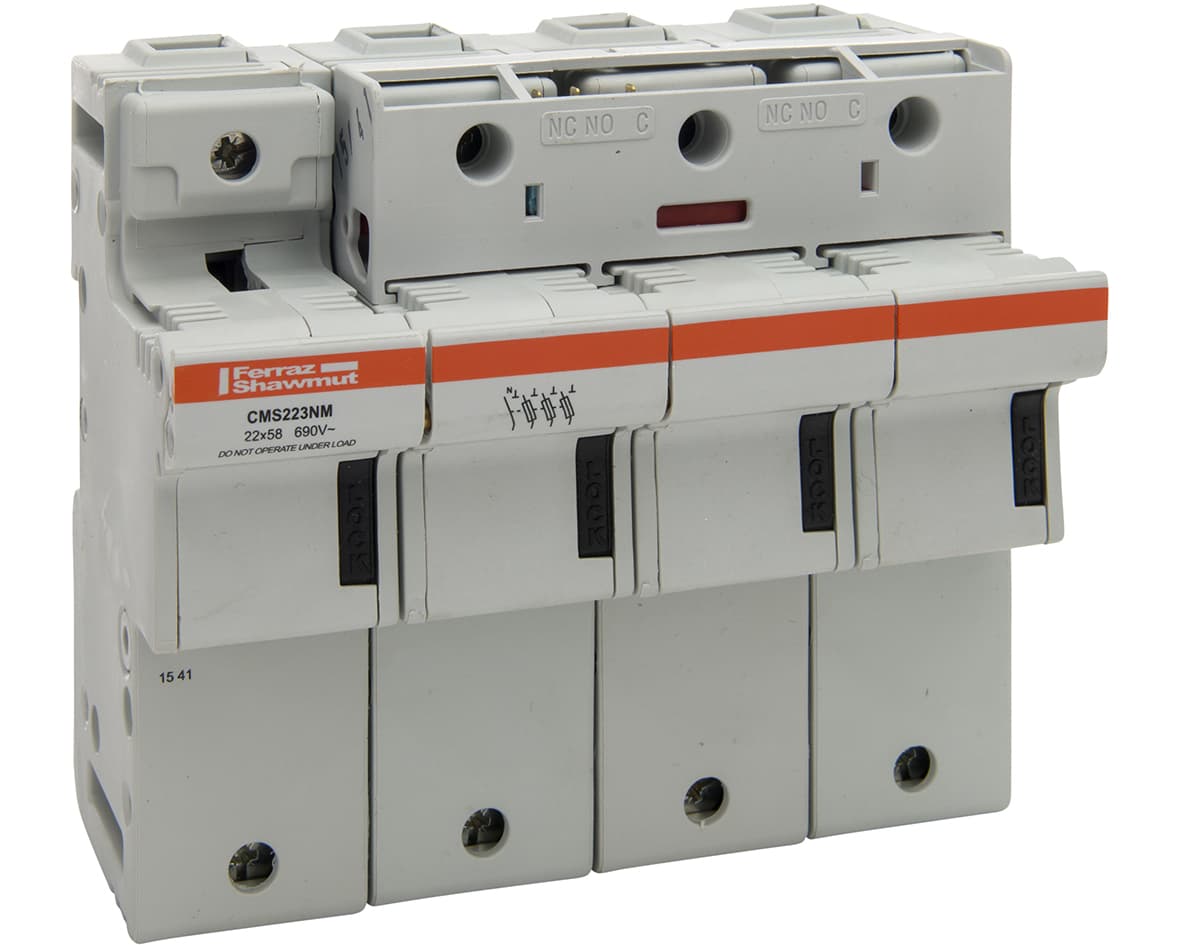

T331102 Mersen - Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N IP20 With Microswitch
Product Details
- Number of Poles 3+N Pole
- Current Rating 125 A
- Weight 861.692 g
- Fuse Size 22x58
- Indication System Type Microswitch
- Installation Mounting DIN rail acc. EN 60715
- Sell Pack Length 9.25 in
- Torque Rating 35.4 lb-in
- Comments Wiring tool : PZ2 or flat 6.5x1.2mm screw drivers recommended (max. diameter 7mm)
- Short Circuit Current Rating (SCCR) 100 kA
- Design Details CMS22 triple pole + neutral conductor
- Product Weight 1.898 lb
- Sell Pack Weight 1.898 lb
- Rated voltage DC IEC 690 V
- Rated Impulse Withstand Voltage 8
- Conventional Free Air thermal Current With Fuse-Links Ith 125 A
- Sell Pack Quantity 1 EACH
- Catalogue No. CMS223NM
- Indication System Yes
- Product Width 5.51 in
- Sell Pack Width 5.31 in
- Ampere Rating 125 A
- Number of Poles 3-Pole+N
- Product Length 3.01 in
- Sell Pack Height 3.35 in
- ROHS Compliant Yes
- Rated voltage AC IEC 690 V
- Rated Insulation Voltage 690 V
- Product Height 5.02 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of T331102 on Advantage Electric Supply is $841.92. Order now.
About the product
T331102 Mersen - Fuse Holder Modulostar® Size 22x58 IEC 690VAC 690VDC 3-Pole+N IP20 With Microswitch | The innovative and comprehensive Modulostar® range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in IEC version or IEC + UL version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In size 14 or 22, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. Modulostar® range is made of tough and durable thermoplastic or thermoset material. | Features: *Finger safe
*Degree of protection: IP20
*Optional visual blown fuse indicator
*DIN rail mounting
*Modular design
*Lockable
*Multi-pole assembly kit available
*Sealable in closed and open position
*Plastic material UL94V2 mini
*Flame retardant materials with glow wire flammability index to 960°C
*Shock and vibration tested for marine and railway applications | Application: *All circuits up to 690V for protection of motors, transformers, low voltage distribution, control circuits.
*Non-load operation
T331102 Related Documents
