TR175R Mersen Fuses

Name: TR175R
Brand: Mersen
Price: 245.61 USD
Availability: BackOrder

Part#:TR175R

Alt. Part#:782001748074

Manufacturer:Mersen

Category:Fuses

Product Lifecycle:Active

Product description

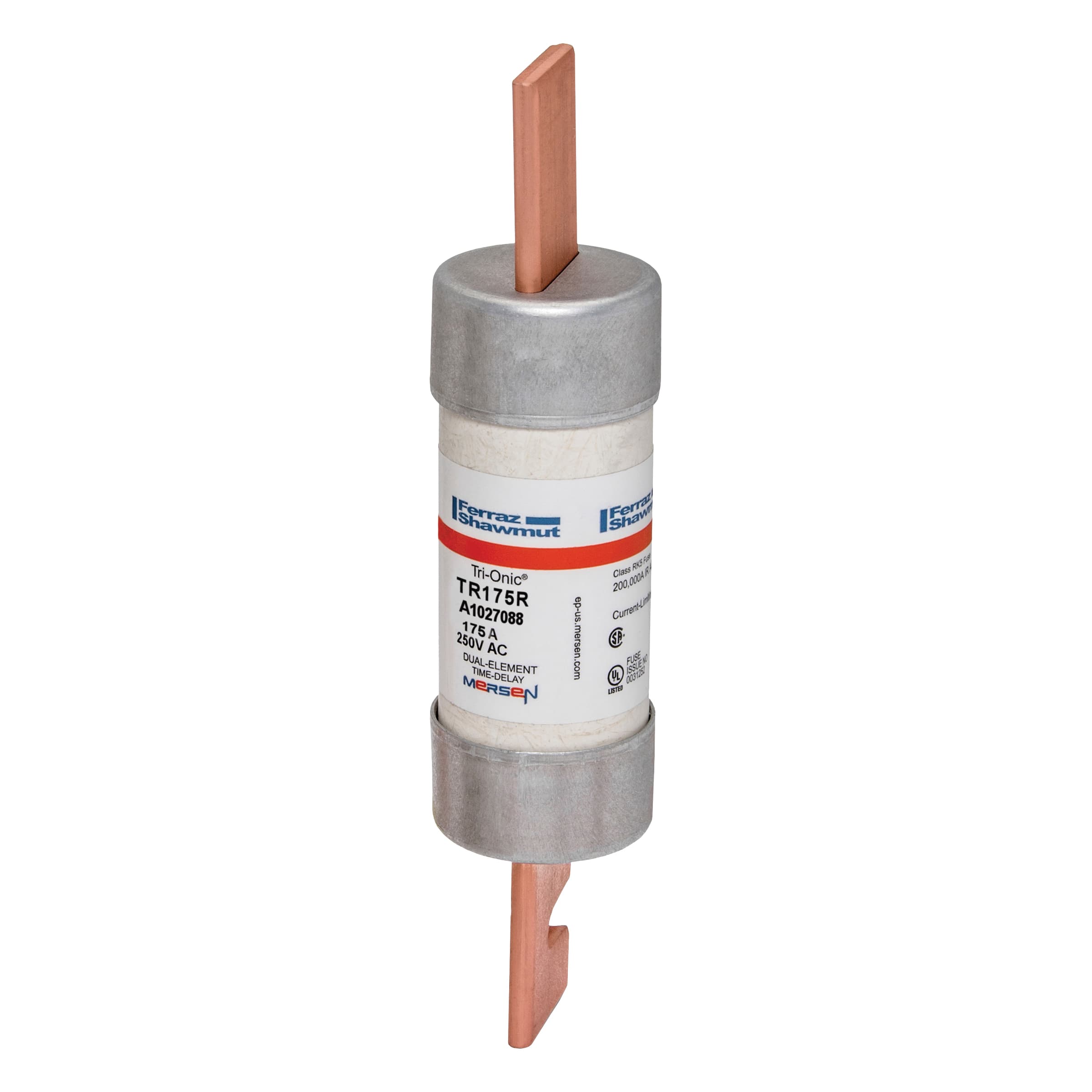

TR175R Mersen - Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 175A Blade Tri-Onic®

Product Details

Current Rating
175 A
Terminal Type
Blade
Material
PolyTube
Type
Low Voltage UL/CSA Fuses
Weight
341.032 g
Voltage
250 VAC / 250 VDC
Approvals
*UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
UL Certification
YES
Trip Class
Time Delay
Fuse Class
Class RK5
Mounting
Clip
Sell Pack Width
1.56 in
ROHS Compliant
Yes
Connection/Terminal Type
Blade
Fuse Class
Class RK5
Body/Insulating Material
PolyTube
Sell Pack Height
7.31 in
Rated voltage DC UL
250 V
Rated voltage AC UL
250 V
Sell Pack Length
1.56 in

Frequency

50/60 Hz

Product Length

7.13 in

Speed/Characteristic

Time Delay

Product Weight

0.9 lb

Ampere Rating

175 A

Connection/Terminal Material

Tin-Plated Copper

Sell Pack Weight

0.95 lb

AC Max I.R./Breaking Capacity: I1

200 kA

Product Diameter

1.56 in

Sell Pack Quantity

1 Each

Amps:

32 A

Shipping Length:

8.00 In.

Shipping Height:

2.00 In.

Characteristics:

Time Delay

Series:

TR-R

Time Delay:

Voltage Rating

UPC:

782001748074

Terminal Type:

Blade

Shipping Weight:

0.90 lbs.

Diameter:

1-9/16 Inch

Volts:

250 VAC/DC

Type:

Class RK5

Interrupting Rating:

200 kA (AC)

Approval:

UL 248-12

Shipping Width:

2.00 In.

Length:

7-1/8 Inch

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of TR175R on Advantage Electric Supply is $245.61. Order now.
