TRS110RID Mersen Fuses

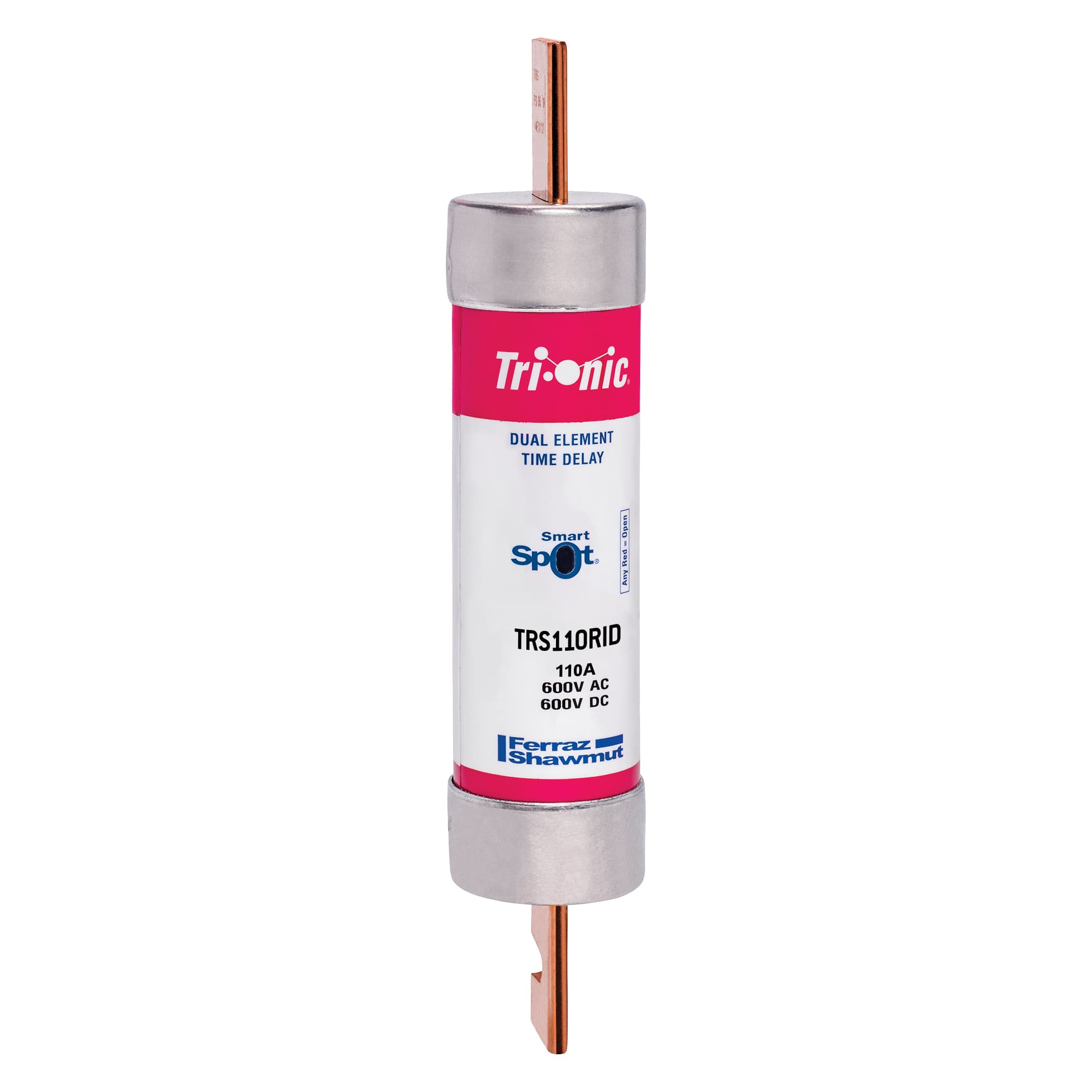

Mersen TRS110RID TRS110RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 110A Blade SmartSpot® Tri-Onic®
Mersen

Part#:TRS110RID

Manufacturer:Mersen

Alt. Part#:782001415181

Product Lifecycle:Active

Get a quick Quote!

TRS110RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 110A Blade SmartSpot® Tri-Onic®

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the TRS110RID Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    110 A
  • Terminal Type
    Blade
  • Material
    PolyTube
  • Type
    Low Voltage UL/CSA Fuses
  • Weight
    598.62 g
  • Voltage
    600 VAC / 600 VDC
  • Approvals
    *UL listed to standard 248-12 File E2137 *CSA certified to standard C22.2 no. 248.12 *DC listed to UL standard 248 TRS only
  • UL Certification
    YES
  • Trip Class
    Time Delay
  • Fuse Class
    Class RK5
  • Sell Pack Length
    1.94 in
  • Sell Pack Height
    10 in
  • Sell Pack Width
    1.94 in
  • Sell Pack Weight
    1.64 lb
  • Sell Pack Quantity
    1 Each
  • Product Length
    9.63 in
  • Product Weight
    1.56 lb
  • Product Diameter
    1.81 in
  • Connection/Terminal Type
    Blade
  • Indication System Type
    SmartSpot®
  • Body/Insulating Material
    PolyTube
  • Connection/Terminal Material
    Tin-Plated Copper
  • Indication System
    Yes
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Mounting
    Clip
  • Speed/Characteristic
    Time Delay
  • Rated voltage DC UL
    600 V
  • Fuse Class
    Class RK5
  • Frequency
    50/60 Hz
  • Rated voltage AC UL
    600 V
  • ROHS Compliant
    Yes
  • Ampere Rating
    110 A

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


TRS110RID Description

TRS110RID Mersen - Fuse TRS-R - Class RK5 - Time-Delay 600VAC 600VDC 110A Blade SmartSpot® Tri-Onic®
