USGM4 Mersen Fuse Holders

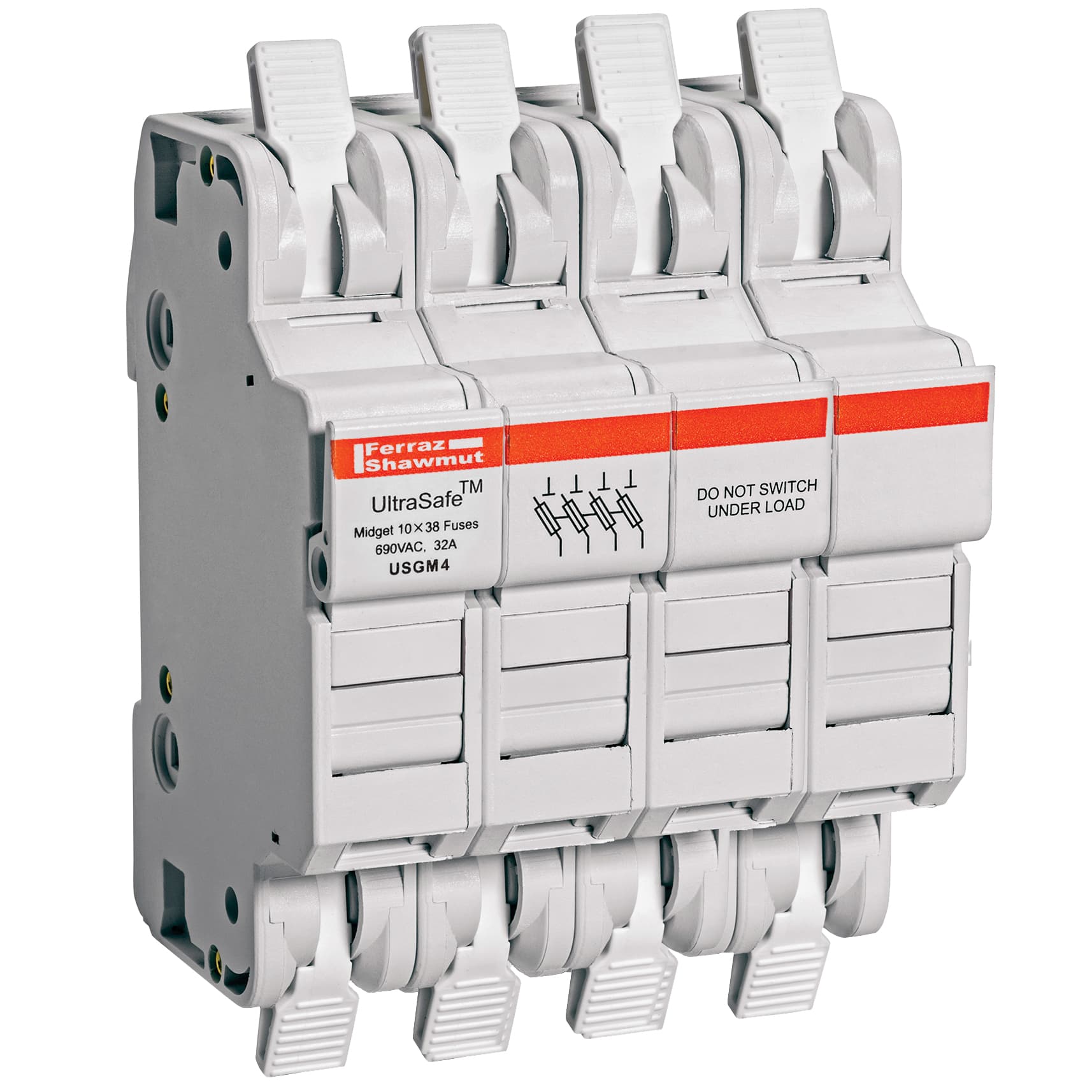

Mersen USGM4 USGM4 Mersen - Fuse Holder UltraSafe™ 750VAC 1000VDC Midget 30A 4-Pole Cage Clamp IP65
Mersen

Part#:USGM4

Manufacturer:Mersen

Alt. Part#:782001437916

Product Lifecycle:Active

Get a quick Quote!

USGM4 Mersen - Fuse Holder UltraSafe™ 750VAC 1000VDC Midget 30A 4-Pole Cage Clamp IP65

About the manufacturer: Mersen is one of the manufacturers that offers Fuse Holders that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the USGM4 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Number of Poles
    4 Pole
  • Current Rating
    30 A
  • Weight
    254.24 g
  • Voltage
    750 VAC
  • Sell Pack Height
    2.75 in
  • Sell Pack Width
    4.5 in
  • Sell Pack Length
    8.75 in
  • Sell Pack Weight
    1.76 lb
  • Sell Pack Quantity
    3 Each
  • Installation Mounting
    DIN Rail
  • Product Height
    2.17 in
  • Body/Insulating Material
    Polyamide
  • Fuse Installation Method
    Clip-in
  • Product Width
    2.72 in
  • Product Length
    4.13 in
  • Product Weight
    0.56 lb
  • Max Fuse Rating
    30 A
  • Number of Poles
    4-pole
  • Rated voltage AC UL
    750 V
  • Wiring range
    #6 to #14 Solid or Stranded
  • Short Circuit Current Rating (SCCR)
    200
  • Fuse Type/Class
    Midget
  • Ampere Rating
    30 A
  • ROHS Compliant
    Yes
  • Fuse Class
    Midget
  • Rated voltage DC UL
    1000 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


USGM4 Description

USGM4 Mersen - Fuse Holder UltraSafe™ 750VAC 1000VDC Midget 30A 4-Pole Cage Clamp IP65 | Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology. | Features: • Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance)

• Reduce wire installation time by up to 75%

• Highly reliable, maintenance free wire contact

• Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection

• Quick, tool-free, easy fuse change-outs

• IP20 finger-safe protection

• Option visual blown fuse indicator

• DIN-rail mounting

• Compact footprint

• Environmentally conscious, RoHS compliant and lead free

*USGM use with Midget Fuses: ATQ, ATM, TRM, OTM, A60Q-2, DCT-2

*USGM-HEL use with Photovoltaic Fuses: HP6M, HP10M | Application: *All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics

*Non-load disconnect
