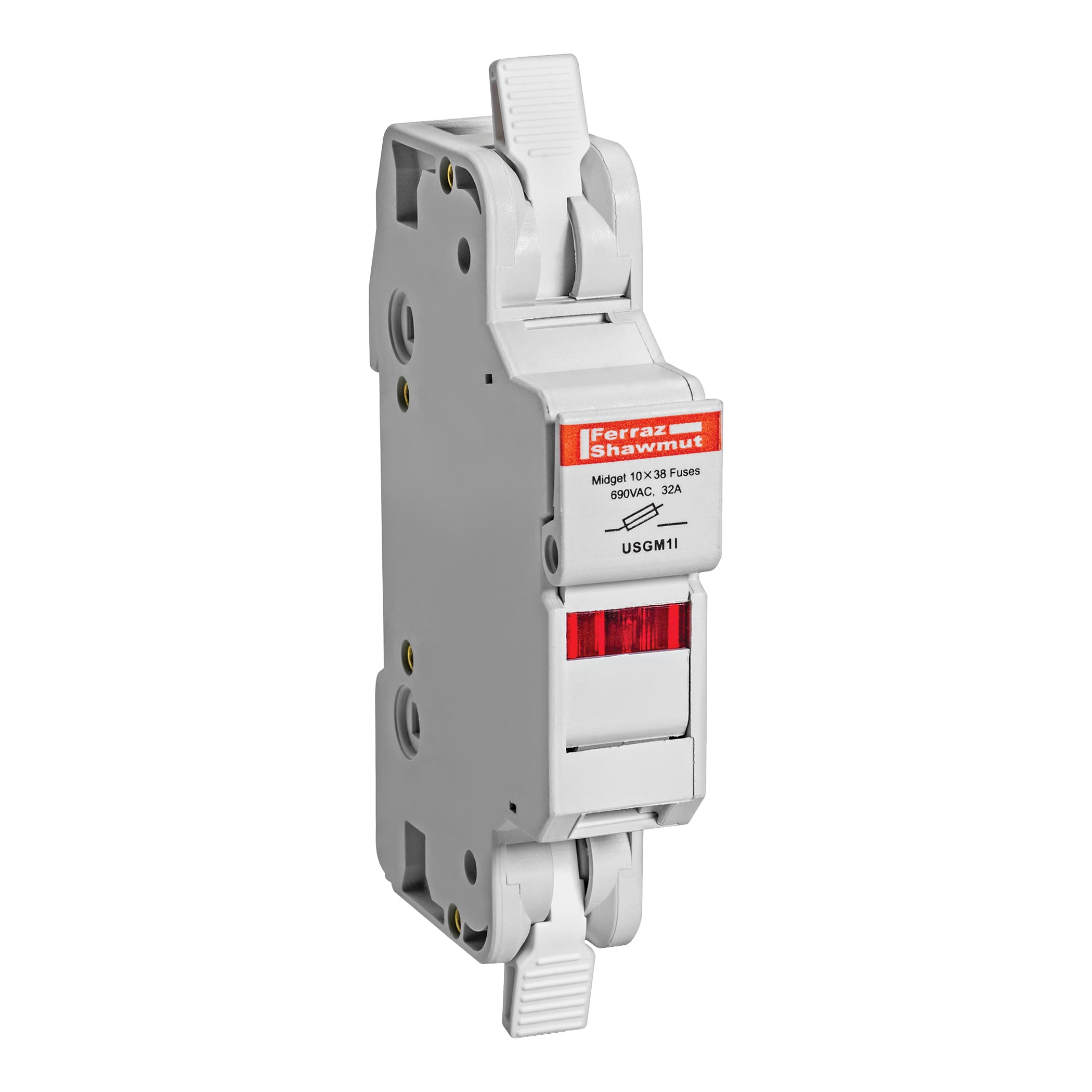

USGM1I-DC24 Mersen Fuse Holders
Part#:USGM1I-DC24
Alt. Part#:782001437961
Manufacturer:Mersen
Category:Fuse Holders
Product Lifecycle:Active
Product description
USGM1I-DC24 Mersen - Fuse Holder UltraSafe™ 24VDC Midget 30A 1-Pole LED Cage Clamp IP65
Product Details
- Number of Poles 1 Pole
- Current Rating 30 A
- Weight 63.56 g
- Voltage 24 VDC
- Ampere Rating 30 A
- Wiring range #6 to #14 Solid or Stranded
- Product Height 2.17 in
- Indication System Yes
- Number of Poles 1-pole
- Product Width 0.68 in
- Fuse Installation Method Clip-in
- Fuse Class Midget
- Sell Pack Height 2.75 in
- Body/Insulating Material Polyamide
- Rated voltage DC UL 24 V
- Sell Pack Width 4.5 in
- Short Circuit Current Rating (SCCR) 200
- Installation Mounting DIN Rail
- Sell Pack Length 8.75 in
- Rated voltage AC UL 0 V
- Fuse Type/Class Midget
- Product Length 4.13 in
- ROHS Compliant Yes
- Product Weight 0.14 lb
- Sell Pack Weight 1.76 lb
- Indication System Type LED
- Max Fuse Rating 30 A
- Sell Pack Quantity 12 Each
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of USGM1I-DC24 on Advantage Electric Supply is $61.41. Order now.
About the product
USGM1I-DC24 Mersen - Fuse Holder UltraSafe™ 24VDC Midget 30A 1-Pole LED Cage Clamp IP65 | Mersen’s USGM series fuse holders deliver the ultimate ease-of-use, time (labor) saving and reliable solution available in the marketplace. Mersen is the first manufacturer to offer screw-less, spring pressure, wire termination technology into a power fuse holder, delivering the best of both technologies to its customers. Now you can experience the combined benefits of safety, ease-of-use, labor savings and reliability of UltraSafe fuse holders and spring pressure technology. | Features: • Equipped with industry proven, patented WAGO CAGE CLAMP® technology (over 25 years of field experience and acceptance)
• Reduce wire installation time by up to 75%
• Highly reliable, maintenance free wire contact
• Secure, vibration proof, corrosion resistant, temperature cycling resistant, cost saving wire connection
• Quick, tool-free, easy fuse change-outs
• IP20 finger-safe protection
• Option visual blown fuse indicator
• DIN-rail mounting
• Compact footprint
• Environmentally conscious, RoHS compliant and lead free
*USGM use with Midget Fuses: ATQ, ATM, TRM, OTM, A60Q-2, DCT-2
*USGM-HEL use with Photovoltaic Fuses: HP6M, HP10M | Application: *All circuits up to 750VAC / 1000VDC for power control, power distribution and power electronics
*Non-load disconnect
USGM1I-DC24 Related Documents
Similar products from: Mersen Fuse Holders
Manufacturer warranty
USGM1I-DC24 Mersen
$61.41
Your price can be lower.
Log in or Create account to check your discount
Backordered – place your order now, and we’ll take care of the rest
Select Qty:
$61.41
$61.41 each
Your order is guaranteed – we’ll keep you updated on delivery timelines
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
Compare USGM1I-DC24 with other Fuse Holders products
Number of Poles
Current Rating
Weight
Voltage
Ampere Rating
Wiring range
Product Height
Indication System
Product Width
Fuse Installation Method
Selected product
USGM1I-DC24
Mersen
USGM1I-DC24 Mersen - Fuse Holder UltraSafe™ 24VDC Midget 30A 1-Pole LED Cage Clamp IP65
Number of Poles1 Pole
Current Rating30 A
Weight63.56 g
Voltage24 VDC
Ampere Rating30 A
Wiring range#6 to #14 Solid or Stranded
Product Height2.17 in
Indication SystemYes
Product Width0.68 in
Fuse Installation MethodClip-in

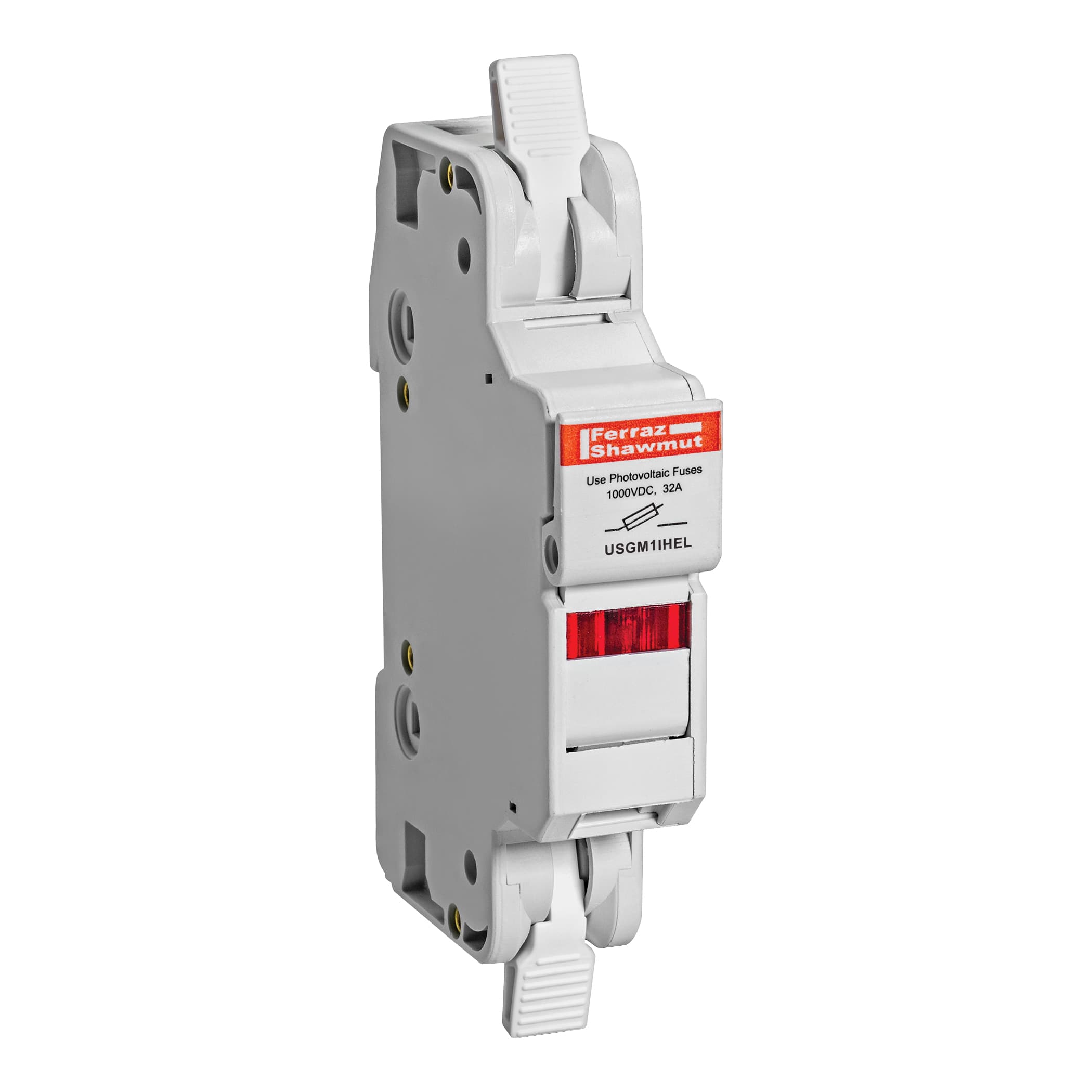

USGM1IHEL
