V079460 Mersen Fuses
Product Details
- Current Rating 200 A
- Terminal Type L Brackets
- Weight 900.736 g
- Trip Class High Speed
- Country Of Origin FR
- Fuse Class Semiconductor
- Rated voltage DC IEC 2000 V
- Mounting Bolted
- Design Details aR
- Connection/Terminal Type L Brackets
- Product Length 8.54 in
- Product Height 2.47 in
- Sell Pack Height 2.76 in
- ROHS Compliant Yes
- Clearing I2t At Rated Voltage 45000 A²s
- Indication System Type Striker
- Product Width 1.73 in
- Sell Pack Quantity 1 EACH
- Sell Pack Width 4.33 in
- Catalogue No. D120SC20C200QF
- Fuse Size 120
- Power Dissipation at Rated Current Value 101 W
- Connection/Terminal Material Silver-Plated Brass
- Product Weight 1.984 lb
- Sell Pack Length 10.24 in
- Ampere Rating 200 A
- Speed/Characteristic aR
- Max. Rated Breaking Capacity DC 100kA
- Indication System Yes
- Body/Insulating Material Ceramic
- Sell Pack Weight 1.984 lb
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V079460 on Advantage Electric Supply is $6,317.90. Order now.
About the product

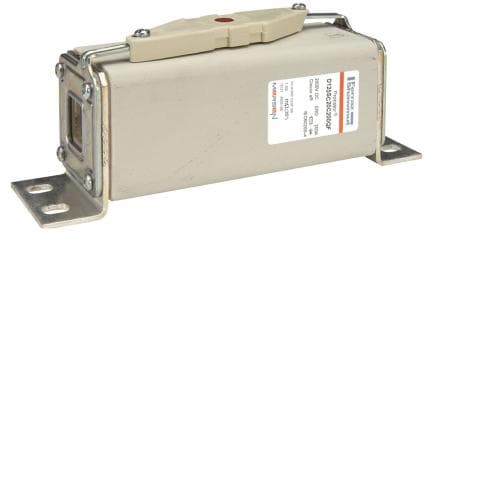

V079460 Mersen - Square Body High-Speed Fuse Protistor® Size 120 aR 2000VDC IEC 200A With Striker L Brackets
Product type: Semiconductor Protection Fuses
Mersen DC offers provide a very high performant protection for railway power and auxiliary circuits. Mersen DC Semiconductor fuse-links were developed to provide improved performance required by today's new DC equipment. These fuse-links are typically operated at more elevated temperature than other fuse type, have lower I²t to minimize damage to protected components on short circuits, lower watts loss and longer life.
To complete these fuse-links Mersen recommende to use the standard microswitch (ref. G310023, MCR3E1-5N).
*Extremely fast acting
*Extremely current limiting
*Very low I²t
*Worldwide acceptability
*Superior cycling ability
