V300168 Mersen Fuses

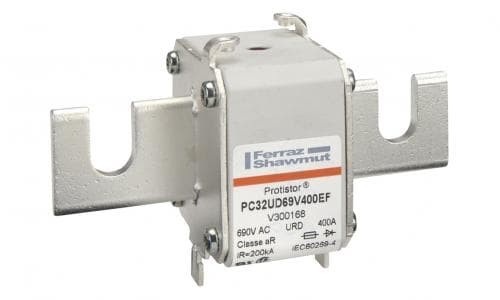

Mersen V300168 V300168 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 400A With Striker Open Slot Blades
Mersen

Part#:V300168

Manufacturer:Mersen

Alt. Part#:3605340324143

Product Lifecycle:Active

Get a quick Quote!

V300168 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 400A With Striker Open Slot Blades

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the V300168 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    400 A
  • Terminal Type
    Open Slot Blades
  • Weight
    572.04 g
  • Trip Class
    High Speed
  • Country Of Origin
    FR
  • Fuse Class
    Semiconductor
  • Sell Pack Height
    3.15 in
  • Sell Pack Length
    7.95 in
  • Sell Pack Weight
    3.78 lb
  • Sell Pack Width
    6.3 in
  • Sell Pack Quantity
    3 EACH
  • Product Height
    2.56 in
  • Product Length
    4.96 in
  • Product Weight
    1.26 lb
  • Product Width
    2.32 in
  • Body/Insulating Material
    Ceramic
  • Connection/Terminal Material
    Silver-Plated Copper
  • Connection/Terminal Type
    Open Slot Blades
  • Indication System
    Yes
  • Indication System Type
    Striker
  • Power Dissipation at Rated Current Value
    75 W
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Clearing I2t At Rated Voltage
    90 kA²s
  • Speed/Characteristic
    aR
  • Melting I2t
    15 kA²s
  • Fuse Size
    32
  • Catalogue No.
    PC32UD69V400EF
  • ROHS Compliant
    Yes
  • Mounting
    Bolted
  • Ampere Rating
    400 A
  • Rated voltage AC IEC
    690 V
  • Rated voltage AC UL
    700 V

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


V300168 Description

V300168 Mersen - Square Body High-Speed Fuse Protistor® Size 32 aR 690VAC IEC 700VAC UL 400A With Striker Open Slot Blades

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. Fuses are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability
