V300582 Mersen Fuses

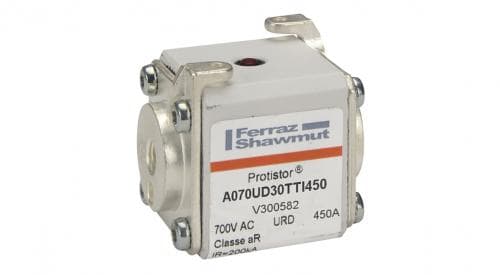

Mersen V300582 V300582 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 450A With Striker Flush ends UNC threads
Mersen

Part#:V300582

Manufacturer:Mersen

Alt. Part#:3605340330625

Product Lifecycle:Active

Get a quick Quote!

V300582 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 450A With Striker Flush ends UNC threads

About the manufacturer: Mersen is one of the manufacturers that offers Fuses that you can order at Advantage Electric Supply site. Mersen offers a diverse range of cooling products, bus bars, and custom fuses to efficiently control power electronics and safeguard them from damaging currents.

Check out the V300582 Mersen price in the box on the right side or send a quick quote.

Product Details

  • Current Rating
    450 A
  • Terminal Type
    End Contact with Threaded Holes
  • Weight
    255.148 g
  • Trip Class
    High Speed
  • Country Of Origin
    FR
  • Fuse Class
    Semiconductor
  • Sell Pack Height
    2.17 in
  • Sell Pack Length
    5.31 in
  • Sell Pack Width
    3.15 in
  • Sell Pack Weight
    1.687 lb
  • Product Width
    1.57 in
  • Sell Pack Quantity
    3 EACH
  • Product Height
    1.89 in
  • Product Length
    1.99 in
  • Product Weight
    0.562 lb
  • Body/Insulating Material
    Ceramic
  • Connection/Terminal Type
    End Contact with Threaded Holes
  • Connection/Terminal Material
    Silver-Plated Brass
  • Indication System Type
    Striker
  • Indication System
    Yes
  • Power Dissipation at Rated Current Value
    80 W
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Rated voltage AC IEC
    690 V
  • Ampere Rating
    450 A
  • Speed/Characteristic
    aR
  • Melting I2t
    26 kA²s
  • Clearing I2t At Rated Voltage
    165 kA²s
  • Mounting
    Bolted
  • Rated voltage AC UL
    700 V
  • Catalogue No.
    A070UD30TTI450
  • Fuse Size
    30

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.


V300582 Description

V300582 Mersen - Square Body High-Speed Fuse Protistor® Size 30 aR 690VAC IEC 700VAC UL 450A With Striker Flush ends UNC threads

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links range provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.

They have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, IGBT and MOSFET devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*Multiple body sizes and terminals or blades combination

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Current limiting

*Superior cycling capability
