V300536 Mersen Fuses
Product Details
- Current Rating 63 A
- Terminal Type DIN Type Blades
- Weight 363.654 g
- Trip Class High Speed
- Country Of Origin FR,MX
- Fuse Class Semiconductor
- Speed/Characteristic aR
- Clearing I2t At Rated Voltage 1680 A²s
- Connection/Terminal Type DIN Type Blades
- Sell Pack Length 5.51 in
- Indication System Type Striker
- Product Height 1.95 in
- Rated voltage AC IEC 1250 V
- Indication System Yes
- Product Weight 0.801 lb
- Sell Pack Height 1.97 in
- Rated voltage AC UL 1300 V
- Power Dissipation at Rated Current Value 26 W
- Product Width 1.57 in
- Sell Pack Quantity 3 EACH
- Catalogue No. PC70UD13C63D1A
- Ampere Rating 63 A
- Body/Insulating Material Ceramic
- Sell Pack Width 5.12 in
- Melting I2t 210 A²s
- Mounting Bolted
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Weight 2.403 lb
- AC Max I.R./Breaking Capacity: I1 126 kA
- Fuse Size 70
- Product Length 5.25 in
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

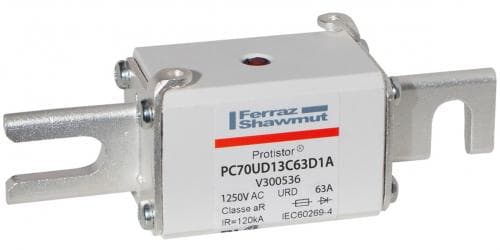

V300536 Mersen - Square Body High-Speed Fuse Protistor® Size 70 aR 1250VAC IEC 1300VAC UL 63A With Striker DIN 110 Blades
Product type: Semiconductor Protection Fuses
The 1250/1300V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for today's power conversion equipment. These aR ultra-fast acting square body fuse-links are available in different body sizes, each size having multiple worldwide acceptable mounting styles.
The Protistor® have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors, GTO's and IGBT devices. Fuses are assembled with pure silver, die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
All fuse-links can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*Multiple body sizes and terminals or blades combination
*aR Class according to VDE 636-23 and IEC 60269-4
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Current limiting
*Superior cycling capability
*Increased technical performances: higher ratings and reduction in volume and weight
