V330114 Mersen Fuses
Product Details
- Current Rating 350 A
- Terminal Type DIN Type Blades
- Weight 132.114 g
- Trip Class High Speed
- Country Of Origin TN
- Fuse Class Semiconductor
- Ampere Rating 350 A
- Body/Insulating Material Ceramic
- Product Length 3.94 in
- Mounting Bolted
- Connection/Terminal Material Silver-Plated Copper
- Sell Pack Length 5.12 in
- AC Max I.R./Breaking Capacity: I1 120 kA
- Speed/Characteristic aR
- Product Height 1.52 in
- Melting I2t 22400 A²s
- Product Width 0.79 in
- Sell Pack Height 3.15 in
- Catalogue No. DN000UB50V350
- Sell Pack Quantity 3 EACH
- Fuse Size NH000
- Connection/Terminal Type DIN Type Blades
- Sell Pack Weight 0.873 lb
- Rated voltage AC IEC 500 V
- Product Weight 0.291 lb
- Sell Pack Width 4.33 in
- Clearing I2t At Rated Voltage 110000 A²s
- Power Dissipation at Rated Current Value 58 W
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
About the product

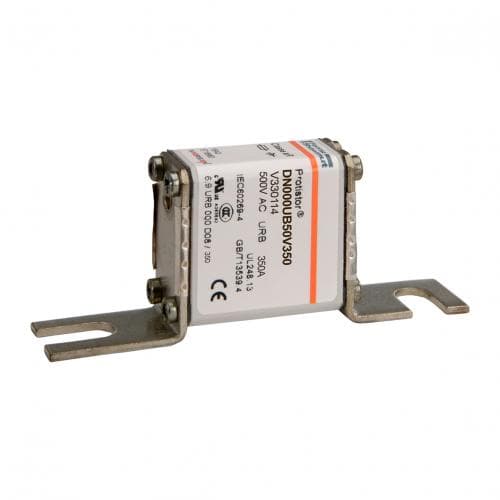

V330114 Mersen - Square Body High-Speed Fuse Protistor® Size NH 000 aR 500VAC IEC 350A DIN 80 Blades
Product type: Semiconductor Protection Fuses
The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.
Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.
*aR Class according to IEC 60269-4 and VDE 636-23
*Very low I²t for improved semiconductor protection
*Ultra fast acting
*Superior cycling capability
