V330183 Mersen Fuses

V330183 on Advantage Electric Supply
Mersen

Part#:V330183

Alt. Part#:3605340363081

Manufacturer:Mersen

Category:Fuses

Product Lifecycle:Active

Product description

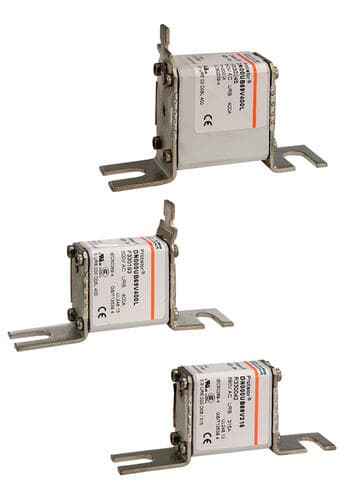

V330183 Mersen - Square Body High-Speed Fuse Protistor® Size NH 000 aR 690VAC IEC 100A With Striker DIN 80 Blades

Product Details

  • Current Rating
    100 A
  • Terminal Type
    DIN Type Blades
  • Weight
    128.482 g
  • Trip Class
    High Speed
  • Country Of Origin
    TN
  • Fuse Class
    Semiconductor
  • Rated voltage AC IEC
    690 V
  • Connection/Terminal Material
    Silver-Plated Copper
  • Sell Pack Weight
    0.849 lb
  • Mounting
    Bolted
  • Indication System Type
    Striker
  • Product Height
    2.19 in
  • Catalogue No.
    DN000UB69V100L
  • Connection/Terminal Type
    DIN Type Blades
  • Sell Pack Quantity
    3 EACH
  • Clearing I2t At Rated Voltage
    4200 A²s
  • Ampere Rating
    100 A
  • Product Length
    3.94 in
  • Sell Pack Height
    3.15 in
  • Fuse Size
    NH000
  • Body/Insulating Material
    Ceramic
  • Melting I2t
    690 A²s
  • Product Width
    0.79 in
  • Sell Pack Length
    5.12 in
  • AC Max I.R./Breaking Capacity: I1
    200 kA
  • Indication System
    Yes
  • Power Dissipation at Rated Current Value
    23 W
  • Speed/Characteristic
    aR
  • Product Weight
    0.283 lb
  • Sell Pack Width
    4.33 in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of V330183 on Advantage Electric Supply is $238.29. Order now.


About the product

V330183 Mersen - Square Body High-Speed Fuse Protistor® Size NH 000 aR 690VAC IEC 100A With Striker DIN 80 Blades

Product type: Semiconductor Protection Fuses

The 690/700V Protistor® fuse-links provide maximum flexibility in equipment design and ultimate protection for small power conversion equipment. These ultra-fast acting aR fuses have been engineered to provide state-of-the-art protection for semiconductors: diodes, thyristors and IGBT devices. They are assembled with die-cut elements embedded in solidified sand, which helps control arcing characteristics for a lower I²t and high interrupting rating level. All contact surfaces are silver plated and all hardware is non-magnetic.

Each fuse-link can be equipped with a low voltage trip-indicator which can operate a field mountable microswitch.

*aR Class according to IEC 60269-4 and VDE 636-23

*Very low I²t for improved semiconductor protection

*Ultra fast acting

*Superior cycling capability
