W1048681 Mersen Fuses

Name: W1048681
Brand: Mersen
Price: 1204.83 USD
Availability: BackOrder

Part#:W1048681

Alt. Part#:3605340578027

Manufacturer:Mersen

Category:Fuses

Product Lifecycle:Active

Product description

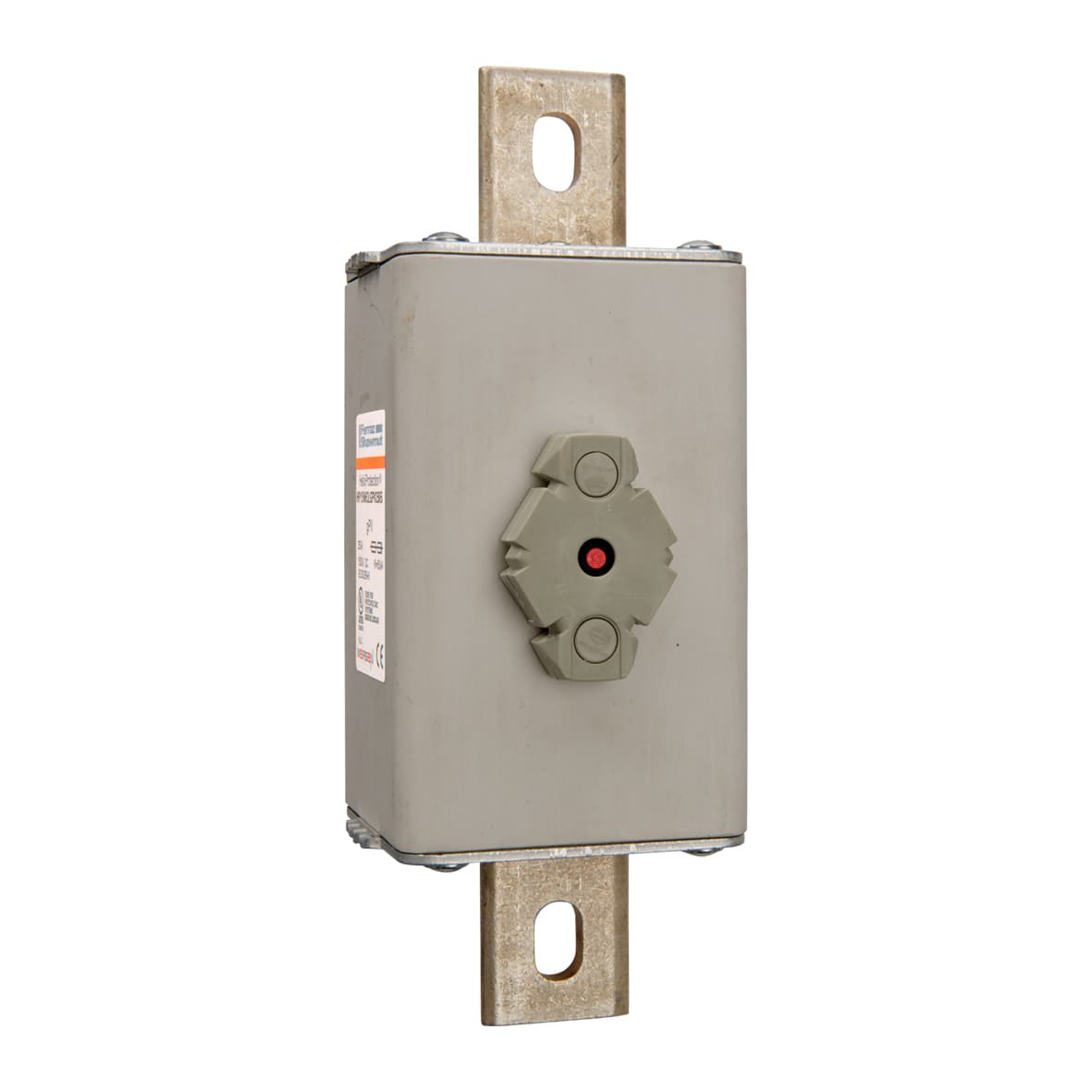

W1048681 Mersen Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 250A With DIN Type Blades For Direct Mount

Product Details

Current Rating
250 A
Terminal Type
DIN Type Blades
Type
Photovoltaic Fuses
Weight
3.66 lb
Voltage
1500 VDC
UL Certification
YES
Country Of Origin
FR,TN
Fuse Class
Special Purpose Fuses
Speed/Characteristic
gPV
Fuse Size
3L
Sell Pack Width
4.72 in
Catalogue No.
HP15NH3LGPV250B
Connection/Terminal Material
Silver-Plated Copper
Sell Pack Weight
3.66 lb
Power Dissipation at Intermediate Current Value
20W @ 0.7 In W
Sell Pack Quantity
1 EACH
Rated voltage DC UL
1500 V
Product Width
2.76 in
Connection/Terminal Type
DIN Type Blades
Power Dissipation at Rated Current Value
50 W

Mounting

Clip

Product Weight

3.66 lb

Sell Pack Height

4.33 in

Ampere Rating

250 A

Sell Pack Length

9.06 in

Product Height

2.91 in

Rated voltage DC IEC

1500 V

Product Length

8.07 in

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
The price of W1048681 on Advantage Electric Supply is $1,204.83. Order now.

About the product

W1048681 Mersen Photovoltaic fuse gPV 1500VDC IEC 1500VDC UL Size 3L 250A With DIN Type Blades For Direct Mount

Mersen HP15NH photovoltaic (PV) fuse serie was engineered and designed specifically for the protection of photovoltaic systems. Helio-Protection® HP15NH fuse links are designed for the protection of cables in a PV group of chains when a short circuit occurs in a panel (main fuse category). This HelioProtection® main fuse range enlarges our PV fuse links offering on 1XL/2XL/3L sizes having a worldwide acceptance. They are of the gPV type and comply with both IEC 60269-6 and UL 2579 PV standards.

They are available with plain blades, bolted blades for direct mounting with and without striker.

*Global acceptance

*Low fault current interrupting capability

*Temperature cycle withstand capability

*Durable construction for enhanced system longevity

*High efficiency with low power losses

*Available in 3 versions: plain blade, direct mounted, direct mounted with striker

*All photovoltaic applications

*Inverter DC input protection

*Re-combiner applications (sub combiner, array combiner, master combiner)

W1048681 Related Documents

DS-Special-Purpose-Fuse-Links-HelioProtection-Photovoltaic-Fuses-HP15NH-1500VDC-EN (EN,PDF,2198Ko).pdf
