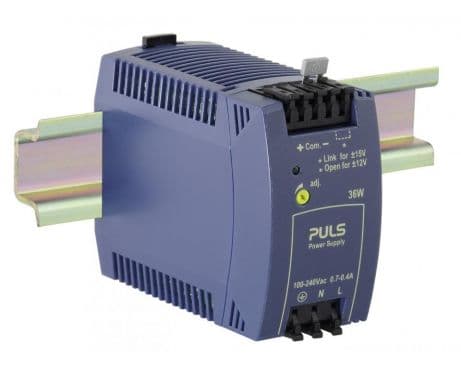

Name: ML30.102
Brand: Puls
Price: 184 USD
Availability: BackOrder

ML90.200

PULS ML90.200 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3.75A at 24Vdc with a derating of 2W from +60°C to +70°C. It features spring-clamp connections for secure and efficient connectivity. The supply voltage accommodates a wide range from 323Vac to 576Vac, supporting various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac, with a frequency range of 47-63Hz and a 2-phase input. The dimensions of the ML90.200 are W72.5mm x H75mm x D103mm, constructed from a PC / ABS blend housing for durability. It is designed for a 2-phase AC network, with a net width of 72.5 mm. The rated power is 90W, and the output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency rates are 0.89 at 480Vac input and 0.895 at 400Vac input. Current consumption can reach up to 36A max inrush at 2x400Vac input and 45A peak max inrush at 2x480Vac input. Power dissipation/losses are calculated at 10.5 W, with a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

SL40.300

Verified stock: 0

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A

Puls

ML100.200

Verified stock: 0

PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

FPT300.246-042-101

Verified stock: 0

PULS FPT300.246-042-101 is a power supply unit from the FPT300 eFused NEC Class 2 3AC series, designed to convert field AC to DC power with 4 individually protected switchable NEC Class 2 outputs and an IO-Link interface. It features a robust aluminium housing with dimensions of W182mm x H272mm x D70mm. The unit connects via a HanQ5/0 female connector for input, a 5-pin M12 connector for the IO-Link interface, and 4 x M12 A-coded connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a supply voltage of 323Vac-552Vac across various nominal voltages and maintains functionality under a single-phase loss if loaded below limits. It cannot operate in series or parallel and is designed for hanging or screw mounting with an IP54 degree of protection. The ambient air temperature for operation ranges from -25 to +70°C with linear derating above +55°C. It has a rated power of 300W at temperatures up to +55°C, with short-term capabilities up to 600W, and features a 24Vdc-28Vdc adjustable output voltage. The unit's efficiency is noted at 0.952 for 3x400Vac input and 0.95 for 3x480Vac input, with a current consumption of 0.5A at full output for 3x400Vac and 0.42A for 3x480Vac, peaking at 2A inrush. Electrical durability is extensive, with hours ranging based on conditions and input, and power dissipation/losses are specified for full output load conditions.

Puls

ML30.241

Verified stock: 1

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

Puls

QS10.301

Verified stock: 0

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

ML100.105

Verified stock: 0

PULS ML100.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 2.1A at 48Vdc, with a power derating from 2.5W at +60°C to +70°C. The unit features spring-clamp connections for secure and reliable connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.105 measures 73mm in width, 75mm in height, and 103mm in depth, and is housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, has a net width of 73 mm, and provides a rated power of 100W. The output voltage is adjustable between 48Vdc and 56Vdc, achieving an efficiency of 0.91 with a 230Vac input. The unit's current consumption includes a maximum inrush of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10W, and the ripple is specified at 50mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML90.200

Verified stock: 0

PULS ML90.200 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3.75A at 24Vdc with a derating of 2W from +60°C to +70°C. It features spring-clamp connections for secure and efficient connectivity. The supply voltage accommodates a wide range from 323Vac to 576Vac, supporting various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac, with a frequency range of 47-63Hz and a 2-phase input. The dimensions of the ML90.200 are W72.5mm x H75mm x D103mm, constructed from a PC / ABS blend housing for durability. It is designed for a 2-phase AC network, with a net width of 72.5 mm. The rated power is 90W, and the output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency rates are 0.89 at 480Vac input and 0.895 at 400Vac input. Current consumption can reach up to 36A max inrush at 2x400Vac input and 45A peak max inrush at 2x480Vac input. Power dissipation/losses are calculated at 10.5 W, with a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

SL40.300

Verified stock: 0

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A

Puls

ML100.200

Verified stock: 0

PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

FPT300.246-042-101

Verified stock: 0

PULS FPT300.246-042-101 is a power supply unit from the FPT300 eFused NEC Class 2 3AC series, designed to convert field AC to DC power with 4 individually protected switchable NEC Class 2 outputs and an IO-Link interface. It features a robust aluminium housing with dimensions of W182mm x H272mm x D70mm. The unit connects via a HanQ5/0 female connector for input, a 5-pin M12 connector for the IO-Link interface, and 4 x M12 A-coded connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a supply voltage of 323Vac-552Vac across various nominal voltages and maintains functionality under a single-phase loss if loaded below limits. It cannot operate in series or parallel and is designed for hanging or screw mounting with an IP54 degree of protection. The ambient air temperature for operation ranges from -25 to +70°C with linear derating above +55°C. It has a rated power of 300W at temperatures up to +55°C, with short-term capabilities up to 600W, and features a 24Vdc-28Vdc adjustable output voltage. The unit's efficiency is noted at 0.952 for 3x400Vac input and 0.95 for 3x480Vac input, with a current consumption of 0.5A at full output for 3x400Vac and 0.42A for 3x480Vac, peaking at 2A inrush. Electrical durability is extensive, with hours ranging based on conditions and input, and power dissipation/losses are specified for full output load conditions.

Puls

ML30.241

Verified stock: 1

PULS ML30.241 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit provides a rated current of 1.3A at 24Vdc and features screw-clamp connections for secure installation. It supports a wide supply voltage range from 85Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages at 46Vac and 44Vac, respectively. Additionally, it can accept DC supply voltages between 88Vdc and 375Vdc. The ML30.241 is housed in a PC/ABS blend material and is suitable for single-phase (1AC) or DC networks. It measures 23mm in width, 75mm in height, and 91mm in depth. The unit's rated power is 30W, and it offers an adjustable output voltage range from 24Vdc to 28Vdc. It incorporates an NTC for input inrush current limiting, achieves an efficiency of up to 0.894 depending on the input voltage, and has a maximum inrush current consumption of 35A at 230Vac input. The power supply features a 90ms start-up delay, with rise times varying based on input conditions and load capacitance. Power dissipation is noted at 3.7W, and it boasts an electrical durability of at least 174,000 hours at +40°C. The ripple is maintained at 50mVpp across a 20Hz to 20MHz range, and the output stage capacitance is 900µF.

Puls

QS10.301

Verified stock: 0

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

ML100.105

Verified stock: 0

PULS ML100.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 2.1A at 48Vdc, with a power derating from 2.5W at +60°C to +70°C. The unit features spring-clamp connections for secure and reliable connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.105 measures 73mm in width, 75mm in height, and 103mm in depth, and is housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, has a net width of 73 mm, and provides a rated power of 100W. The output voltage is adjustable between 48Vdc and 56Vdc, achieving an efficiency of 0.91 with a 230Vac input. The unit's current consumption includes a maximum inrush of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10W, and the ripple is specified at 50mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

Puls

ML90.200

Verified stock: 0

PULS ML90.200 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and adheres to NEC Class 2 design specifications. This unit offers a rated current of 3.75A at 24Vdc with a derating of 2W from +60°C to +70°C. It features spring-clamp connections for secure and efficient connectivity. The supply voltage accommodates a wide range from 323Vac to 576Vac, supporting various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac, with a frequency range of 47-63Hz and a 2-phase input. The dimensions of the ML90.200 are W72.5mm x H75mm x D103mm, constructed from a PC / ABS blend housing for durability. It is designed for a 2-phase AC network, with a net width of 72.5 mm. The rated power is 90W, and the output voltage is adjustable between 24Vdc and 28Vdc. Protection functions include an NTC for input inrush current limiting. The efficiency rates are 0.89 at 480Vac input and 0.895 at 400Vac input. Current consumption can reach up to 36A max inrush at 2x400Vac input and 45A peak max inrush at 2x480Vac input. Power dissipation/losses are calculated at 10.5 W, with a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

SL40.300

Verified stock: 0

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A

Puls

ML100.200

Verified stock: 0

PULS ML100.200 is a power supply unit designed for AC/DC conversion with DIN rail mounting capabilities. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 4.2A at 24Vdc, with a derating of 2.5W from +60°C to +70°C. The unit features spring-clamp connections for secure installation and supports a wide supply voltage range of 323Vac to 576Vac, accommodating various nominal voltages such as 380Vac, 400Vac, 415Vac, 440Vac, 480Vac, 500Vac, and 525Vac across a frequency range of 47-63Hz, suitable for 2-phase input networks. With dimensions of W72.5mm x H75mm x D103mm and constructed from a PC/ABS blend housing, the ML100.200 has a net width of 72.5 mm. It delivers a rated power of 100W and an adjustable output voltage range of 24Vdc to 28Vdc. The unit is equipped with an NTC for input inrush current limitation, achieving efficiencies of 0.895 and 0.89 at 400Vac and 480Vac inputs, respectively. It has a maximum inrush current consumption of 36A at 2x400Vac input and 45A peak at 2x480Vac input, with power dissipation/losses of 11.7W and a ripple of 50mVpp across a frequency range of 20Hz to 20MHz at 50Ω.

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

FPT300.246-042-101

Verified stock: 0

PULS FPT300.246-042-101 is a power supply unit from the FPT300 eFused NEC Class 2 3AC series, designed to convert field AC to DC power with 4 individually protected switchable NEC Class 2 outputs and an IO-Link interface. It features a robust aluminium housing with dimensions of W182mm x H272mm x D70mm. The unit connects via a HanQ5/0 female connector for input, a 5-pin M12 connector for the IO-Link interface, and 4 x M12 A-coded connectors for output. It supports the IO-Link communication protocol and includes protection functions such as output overvoltage protection, overload/short-circuit protection with an individual inverse time curve for each output, and over-temperature protection with automatic restart. The device operates on a supply voltage of 323Vac-552Vac across various nominal voltages and maintains functionality under a single-phase loss if loaded below limits. It cannot operate in series or parallel and is designed for hanging or screw mounting with an IP54 degree of protection. The ambient air temperature for operation ranges from -25 to +70°C with linear derating above +55°C. It has a rated power of 300W at temperatures up to +55°C, with short-term capabilities up to 600W, and features a 24Vdc-28Vdc adjustable output voltage. The unit's efficiency is noted at 0.952 for 3x400Vac input and 0.95 for 3x480Vac input, with a current consumption of 0.5A at full output for 3x400Vac and 0.42A for 3x480Vac, peaking at 2A inrush. Electrical durability is extensive, with hours ranging based on conditions and input, and power dissipation/losses are specified for full output load conditions.

Puls
