Name: QS40.241
Brand: Puls
Price: 1185 USD
Availability: BackOrder

QS40.484

PULS QS40.484 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a power derating applicable from 24W at +60°C to +70°C. Connection is facilitated through screw-clamp connections, and it supports a supply voltage range of 180Vac to 264Vac, accommodating various nominal voltages within this range at a frequency of 47-63Hz. The QS40.484, part of the Q-series, measures 125mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. It is designed for single-phase network operation and delivers a rated power of 960W, with a short-term capacity of 1440W for up to 4 seconds. The output voltage is adjustable between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. Efficiency is rated at 0.95 with a 230Vac input, and the unit exhibits a peak current consumption of 18A. Start-up and rise times are specified as 750ms and 18-35ms respectively, with a hold time of 30ms at 230Vac input. Power dissipation losses are detailed for both 230Vac and 120Vac inputs, and the electrical durability spans from 65,000 to 345,000 hours under various conditions. Ripple is maintained at 150mVpp across a 20Hz to 20MHz range, with an output stage capacitance of 3700µF.

Puls

QS10.301

Verified stock: 0

PULS QS10.301 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion capabilities with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 8.6A at 28Vdc, 8A at 30Vdc, and 7.5A at 32Vdc, with spring-clamp connections for secure attachment. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, accommodating various network types including single-phase (1AC) or DC. The QS10.301 is housed in an aluminium casing, measuring 60mm in width, 124mm in height, and 117mm in depth. It delivers an adjustable output voltage of 28Vdc-32Vdc, with a rated power of 240W and a short-term capacity of 360W for up to 4 seconds. Protection features include output overvoltage protection and active input inrush current limiting, with overload and short-circuit protection ensuring operational stability. The unit is designed for series or parallel operation to increase output power, with a high efficiency of up to 0.935 depending on the input voltage. It exhibits a peak current consumption of 10A, a start-up delay of 340-800ms, and a hold time of 23ms at 230Vac input. Power dissipation is noted at 16.7W for 230Vac input under full load. The QS10.301 demonstrates electrical durability with operational lifespans ranging up to 200,000 hours under specific conditions, and features a ripple of 50mVpp across a wide frequency range, with an output stage capacitance of 7000µF.

Puls

ML100.105

Verified stock: 0

PULS ML100.105 is a power supply unit (PSU) / converter designed for AC/DC applications with DIN rail mounting. It operates within an ambient air temperature range of -10 to +70°C and offers a rated current of 2.1A at 48Vdc, with a power derating from 2.5W at +60°C to +70°C. The unit features spring-clamp connections for secure and reliable connectivity. It supports a wide range of supply voltages, including AC inputs from 85Vac to 132Vac and 184Vac to 264Vac across various nominal values (100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, 240Vac) with auto-selection and a frequency range of 47-63Hz, as well as DC inputs from 213Vdc to 377Vdc (220Vdc, 250Vdc nominal). The ML100.105 measures 73mm in width, 75mm in height, and 103mm in depth, and is housed in a PC / ABS blend for durability. It is compatible with single-phase (1AC) or DC networks, has a net width of 73 mm, and provides a rated power of 100W. The output voltage is adjustable between 48Vdc and 56Vdc, achieving an efficiency of 0.91 with a 230Vac input. The unit's current consumption includes a maximum inrush of 22A at 120Vac input and 37A peak at 230Vac input. Power dissipation/losses are rated at 10W, and the ripple is specified at 50mVpp over a frequency range of 20Hz to 20MHz at 50Ω.

Puls

SL40.300

Verified stock: 0

Power Supply, 960W, 380-480VAC 3PH, 24-28VDC, 40-35A

Puls

FPT300.242-002-101

Verified stock: 0

PULS FPT300.242-002-101 is a power supply unit from the FPT300 Basic 3AC series, designed to function as a field AC/DC power supply unit (PSU) / converter with an IO-Link interface output on X3 pins 1&2. It features a robust aluminium housing with dimensions of W182mm x H183mm x D59mm. The unit offers a variety of connection types including a HanQ4/2 connector for input (X1), a 5-pin M12 connector for the IO-Link interface (X2), and a HanQ4/0 connector for output (X3; pin 3 = "+", pin 4 = "-"). It operates on an IO-Link communication protocol and is equipped with protection functions such as output overvoltage protection (31.8Vdc typ. / 32.5Vdc max.), overload/short-circuit current protection, and over-temperature protection with automatic restart. The device is not suitable for series or parallel operation and has a back-feeding load resistance up to 35V 4J / 32V 2.8J. It has a rated current of 12.5A at 24Vdc and can accept a supply voltage (AC) ranging from 323Vac to 552Vac across various nominal voltages, with specific performance during the loss of 1-phase. Mounting can be achieved via hanging and fixing through integrated keyholes or by screw mounting. The unit operates within an ambient air temperature range of -25...+55 °C (with linear derating) to +55...+70 °C and offers a degree of protection of IP65/IP67. Designed for a 3-phase (3AC) network, it has a current consumption of 0.5A/0.42A under full output with symmetrical phases and a peak inrush of 2A. The efficiency rates are 0.952 (3x400Vac input) and 0.95 (3x480Vac input), with a rated power of 300W at operational temperatures up to +55°C, derating linearly to 150W at +70°C, and offering short-term power capabilities. The output voltage is fixed at 24Vdc with a 500mV turn-ON overshoot, and the unit provides a hold time of 25ms at 400/480Vac input. Electrical durability varies with conditions, offering up to 882000 hours of operation under certain conditions. Power dissipation/losses are noted at 15.1 W for 3x400Vac input and 15.8 W for 3x480Vac input, with an output stage capacitance of 18000 µF and a ripple of 100mVpp.

Puls

QS40.244

Verified stock: 0

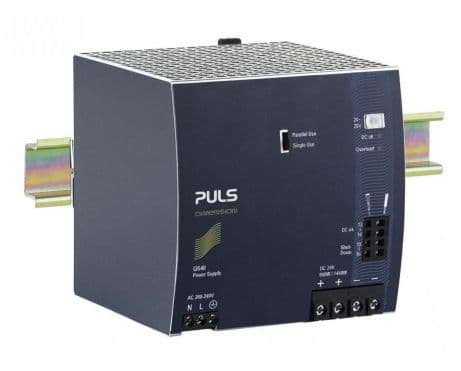

PULS QS40.244 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and offers a design that includes a DC-OK relay contact output. The unit provides a rated current of 40A at 24Vdc and 34.3A at 28Vdc, with screw-clamp connections for secure installation. It supports a supply voltage range of 180Vac to 264Vac across various nominal values and frequencies, with specific turn-ON and shutdown voltages. As part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in an aluminium casing. This single-phase unit delivers a rated power of 960W, with a short-term capacity of 1440W for up to 4 seconds, and an adjustable output voltage between 24Vdc and 28Vdc. It features comprehensive protection functions, including output overvoltage protection and overload/short-circuit current management, and is capable of series or parallel operation for increased output power. The QS40.244 maintains efficiency at 0.946 with a 230Vac input and incorporates a time delay for start-up and rise, alongside a hold time of 30ms at 230Vac input. Power dissipation is noted at 54.8W under full output load with a 230Vac input. Its electrical durability spans up to 311,000 hours at 25°C with a 20A output, and it exhibits a ripple of 100mVpp across a 20Hz to 20MHz range with a 50Ω load. The output stage capacitance is 10200µF, ensuring stable performance across its operational lifespan.

Puls

QS40.361

Verified stock: 0

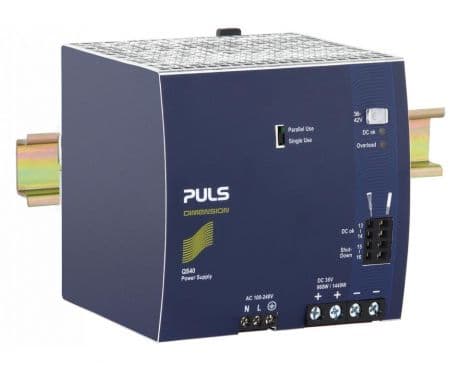

PULS QS40.361 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. This unit is ATEX approved and includes a DC-OK relay contact output. It provides a rated current of 26.7A at 36Vdc and 22.9A at 42Vdc, with screw-clamp connections for installation. The supply voltage ranges from 85Vac to 264Vac across various nominal voltages, with specific turn-ON and shutdown voltages. Part of the Q-series, it measures 125mm in width, 124mm in height, and 127mm in depth, housed in aluminium. Designed for single-phase networks, it offers a rated power of 960W, extendable to 1440W for short-term applications, and an adjustable output voltage between 36Vdc and 42Vdc. Protection features include output overvoltage protection and active input inrush current limiting, with capabilities for overload, short-circuit protection, and series/parallel operation. Efficiency rates vary with input voltage, and it has specific current consumption, time delay, hold time, power dissipation, and electrical durability metrics. The ripple is 130mVpp, and the output stage capacitance is 4700µF.

Puls

QS40.481

Verified stock: 0

PULS QS40.481 is a power supply unit designed for DIN rail mounting, featuring AC/DC conversion with a 50% power reserve. It operates within an ambient air temperature range of -25 to +70°C and is equipped with ATEX approval, a DC-OK relay contact output, and screw-clamp connections. This unit supports a supply voltage range of 85Vac-264Vac across various nominal voltages and frequencies, with specific turn-ON and shutdown voltages. It belongs to the Q-series and is housed in an aluminium casing with dimensions of W125mm x H124mm x D127mm. The QS40.481 is designed for single-phase networks, offering a rated current of 20A at 48Vdc and 17.8A at 54Vdc, with a derating power of 24W at temperatures ranging from +60°C to +70°C. Its rated power is 960W, with a short-term capacity of 1440W for up to 4 seconds, and an adjustable output voltage between 48Vdc and 54Vdc. Protection features include output overvoltage protection and overload/short-circuit protection, with capabilities for series or parallel operation to increase output power. The unit demonstrates high efficiency rates across various input voltages and has specific inrush current, time delay, hold time, power dissipation/losses, and electrical durability metrics. It also features a ripple of 150mVpp and an output stage capacitance of 3700µF.

Puls
