UF20.481 Puls Buffer Modules

UF20.481 on Advantage Electric Supply
Puls

Part#:UF20.481

Manufacturer:Puls

Category:Buffer Modules

Product Lifecycle:Active

Get a quick Quote!

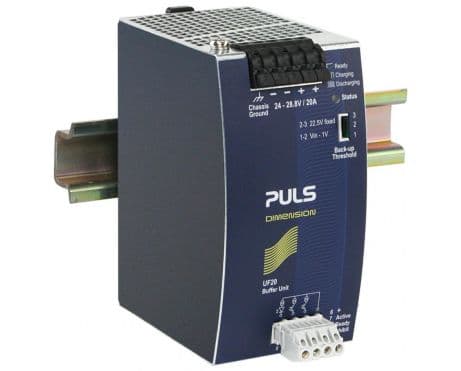

PULS UF20.481 is an Uninterruptible Power Supply (UPS) control module, part of the UF-series, designed as a bfr. module with capacitive storage and features a green status LED. It is housed in aluminium and utilizes spring-clamp connections for connectivity. This module measures W64mm x H124mm x D102mm and operates on a supply voltage range of 38.4Vdc to 60Vdc, with a nominal voltage of 48Vdc. It is rated for a current of 20A (bfr.) and is designed for DIN rail mounting. The UF20.481 can operate in ambient air temperatures ranging from -25 to +70°C and is suitable for DC networks. It includes a visual position indicator for Ready, Buffering, and Inhibit statuses. The module offers protection functions including output overvoltage protection, with typical protection at 58Vdc and a maximum of 60Vdc. Buffer modules can be connected in parallel to increase output ampacity or hold-up time. It provides a fixed output voltage of 48Vdc, boasts an efficiency of 0.99 at 48Vdc input, and offers a hold time of 15ms / 0.15s at a 20A load. Power dissipation/losses are 1.9 W at 24Vdc input with 0A output current. Ripple is specified as 250mVpp at 5A, 400mVpp at 10A, and 600mVpp at 20A, across a frequency range of 20Hz to 20MHz at 50Ω. Its electrical durability is rated at 161,000 hours at 40°C and 457,000 hours at 25°C in standby mode.

About the manufacturer: Puls is one of the manufacturers that offers Buffer Modules that you can order at Advantage Electric Supply site. Puls specializes in AC/DC power supplies, dedicating its efforts solely to the development of premium DIN rail power supplies. As a leading authority in power conversion, Puls distinguishes itself through focused engineering and an unwavering commitment to quality, positioning itself as the top leader in the field. This dedication ensures the highest standard in the industry, reflecting in every product they offer.

Check out the UF20.481 Puls price in the box on the right side or send a quick quote.

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.



Related documents UF20.481 Specs

Manufacturer warranty

$485.00

Request a quote, and we will send availability within minutes.

Select Qty:

$485.00

$485.00 each

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international


Secure Payment Processing

with money back guarantee


Warranty On All Parts

Manufacturer warranty
