509FXE-ST-40 Red Lion Industrial Automation Components

509FXE-ST-40 on Advantage Electric Supply
Red Lion

Part#:509FXE-ST-40

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion 509FXE-ST-40 is an industrial Ethernet switch designed for robust networking applications. It operates on a supply voltage range of 10-30Vdc, including redundant power inputs to enhance reliability in critical systems. This model features 8 RJ45 ports supporting 10/100BaseTX and one fiber optic ST connector for single-mode fiber with a 40km range, ensuring long-distance communication capabilities. The switch is designed for a storage ambient air temperature range of -40 to +85 degrees Celsius and achieves a maximum throughput of 2.6Gbit/s, suitable for high-speed data transmission requirements. It is housed in a metallic case, adheres to IP20 rating for protection against objects larger than 12.5mm but not against water, and is mounted using DIN rail technology for easy installation in industrial environments. The 509FXE-ST-40 is part of the N-Tron 500 series, classified under the UNSPSC code specific to its category, without normally closed (NC) auxiliary contacts.

Product Details

  • Main function
    Ethernet Switch
  • Functions
    Industrial Ethernet switch
  • Communication protocol
    Ethernet
  • Order code / Manufacturer SKU
    509FXE-ST-40
  • Sub-range name
    N-Tron 500 series
  • Product series / family name
    Ethernet switches
  • Supply voltage (DC)
    10-30Vdc (12Vdc / 24Vdc) (redundant pwr. inputs)
  • Mounting mode
    DIN rail
  • Ambient air temperature for operation
    -40...+85 °C
  • Secondary brand
    N-Tron
  • Primary brand
    Red Lion
  • Connection capacity
    9-ports
  • Degree of protection
    IP20
  • Equivalent to
    509FXEST40
  • Connection type
    8 x RJ45 ports (10/100BaseTX) 1 x Fiber optic ST connector (single-mode; 100BaseFX; 40km rated optical fiber)
  • Material
    Metallic case
  • Compliant with standard(s)
    CE IEC 1613 EN 61000-6-2 EN 61000-6-4 EN 55011 cUL RoHS compliant UL Class 1 Division 2 Hazardous locations
  • Speed
    Maximum throughput 2.6Gbit/s
  • Benefits
    Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged industrial DIN rail enclosure Bi-Color LEDs For Link / Speed / Activity / Duplex Status

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

509FXE-ST-40 Related Documents

Red Lion - N-Tron 500 Series Ethernet switches - Product Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

509FXE-ST-40 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare 509FXE-ST-40 with other Industrial Automation Components products

Main function

Functions

Communication protocol

Order code / Manufacturer...

Sub-range name

Product series / family n...

Supply voltage (DC)

Mounting mode

Ambient air temperature f...

Secondary brand

Selected product

509FXE-ST-40
Backordered
509FXE-ST-40
Red Lion

Red Lion 509FXE-ST-40 is an industrial Ethernet switch designed for robust networking applications. ...

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Communication protocolEthernet

Order code / Manufacturer SKU509FXE-ST-40

Sub-range nameN-Tron 500 series

Product series / family nameEthernet switches

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Mounting modeDIN rail

Ambient air temperature for operation-40...+85 °C

Secondary brandN-Tron

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Main functionEthernet Switch

FunctionsIndustrial process control m...

Communication protocolEthernet

Order code / Manufacturer SKU-

Sub-range nameN-Tron 500-A series

Product series / family nameEthernet switches

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Mounting modeDIN rail

Ambient air temperature for operation-

Secondary brandN-Tron

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Main functionEthernet Switch

FunctionsIndustrial Ethernet switch

Communication protocolEthernet

Order code / Manufacturer SKU-

Sub-range nameN-Tron 100 series

Product series / family nameEthernet switches

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Mounting modeDIN rail

Ambient air temperature for operation-

Secondary brandN-Tron

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

QS10.121 on Advantage Electric Supply

QS10.121

Puls

PULS QS10.121 is a power supply unit designed for AC/DC conversion with a 50% power reserve. It features DIN rail mounting and operates within an ambient air temperature range of -25 to +70°C. The unit is equipped with a DC-OK relay contact output and offers a rated current of 15A at 12Vdc and 13.5A at 15Vdc, utilizing spring-clamp connections for connectivity. It supports a supply voltage range of 85Vac-264Vac for AC and 88Vdc-188Vdc for DC, with specific nominal values across a wide spectrum. The QS10.121, part of the Q-series, measures 60mm in width, 124mm in height, and 117mm in depth, housed in an aluminium casing. It is compatible with single-phase (1AC) or DC networks, delivering a rated power of 203W at 15V, 180W at 12V, and can momentarily supply up to 270W for 4 seconds. The output voltage is adjustable between 12Vdc and 15Vdc, featuring comprehensive protection functions including overvoltage and overload/short-circuit protection. The unit allows for series or parallel operation to increase output power and is designed to handle back-feeding loads without malfunctioning. Efficiency rates vary with input voltage, achieving up to 0.918 at 230Vac. It exhibits a peak current consumption of 10A, with a start-up delay between 340-800ms and a hold time of 32ms at nominal input conditions. Power dissipation stands at approximately 16.1W to 16.7W under full load conditions, and the electrical durability ranges significantly based on operating conditions, with up to 215000 hours at 25°C and 30A output with 1AC 230Vac input. The output stage capacitance is 7000µF, and ripple is maintained at 50mVpp across a 20Hz to 20MHz range.

0 in stock

Relevant products

509FXE-A-ST-15 on Advantage Electric Supply

509FXE-A-ST-15

Verified stock: 0

Red Lion 509FXE-A-ST-15 is an Ethernet switch designed for industrial process control with monitored Ethernet switch capabilities. It features IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. This model operates on a supply voltage of 10-30Vdc, including redundant power inputs, and offers connectivity through 8 RJ45 ports (10/100BaseTX) and 1 Fiber optic ST connector (single-mode) with a 15km rated optical fiber length for 100BaseFX. It includes advanced management firmware, supports an ambient air temperature for storage of -40 to +85 degrees Celsius, and achieves a maximum throughput of 2.6Gbit/s. The component utilizes DIN rail technology, is encased in a metallic case, and is specified as a 9-port device within the N-Tron 500-A series, adhering to the UNSPSC code.

Red Lion

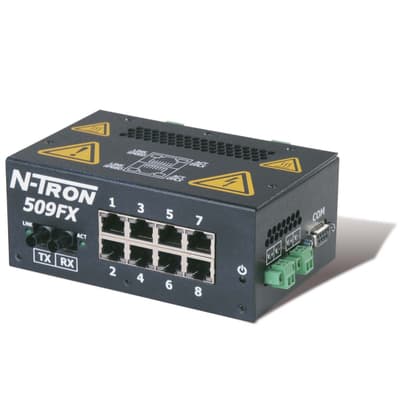

509FXE-A-ST-40 on Advantage Electric Supply
