711FXE3-SC-40-HV Red Lion Industrial Automation Components

711FXE3-SC-40-HV on Advantage Electric Supply
Red Lion

Part#:711FXE3-SC-40-HV

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

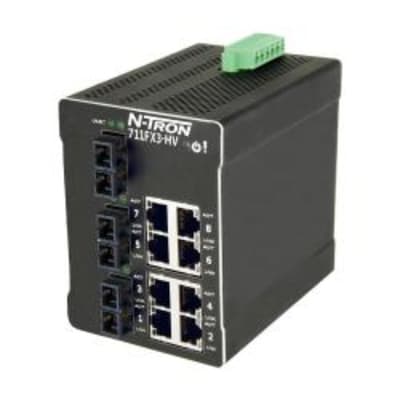

Red Lion 711FXE3-SC-40-HV is an industrial managed Ethernet switch designed for robust and complex network environments. It features SNMP v1, v2, and v3 along with Web Browser Management for comprehensive control and monitoring. The switch incorporates N-Ring Technology ensuring a 30ms healing time for network recovery, N-Link Redundant Ring Technology for enhanced network reliability, and N-View Monitoring Technology for real-time network status. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for advanced network management. The switch is equipped with 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for efficient IP management. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The configurable alarm output contact is Normally Open (NO) supporting auxiliary contacts ranging from 43-300Vdc. It has 8 x RJ45 ports (10/100BaseTX) and 3 x Fiber optic SC connectors (single-mode, 100BaseFX) with a 40km rated optical fiber distance. The switch operates within a temperature range of -40 to +70°C and features ESD + Surge protection on power inputs. It is designed for DIN rail mounting in a metallic case, accommodating an 11-port configuration within the N-Tron 700 series.

Product Details

  • Primary brand
    Red Lion
  • Sub-range name
    N-Tron 700 series
  • Mounting mode
    DIN rail
  • Equivalent to
    711FXE3SC40HV
  • Secondary brand
    N-Tron
  • Product series / family name
    Ethernet switches
  • Communication protocol
    Ethernet
  • Compliant with standard(s)
    CE EN 55011 EN 61000-6-2 EN 61000-6-4 RoHS compliant ABS ATEX
  • Main function
    Ethernet Switch
  • Connection type
    8 x RJ45 ports (10/100BaseTX) 3 x Fiber optic SC connectors (single-mode; 100BaseFX; 40km rated optical fiber)
  • Protection functions
    ESD + Surge protection on power inputs
  • Benefits
    ESD and surge protection diodes on all ports Auto-sensing 10/100BaseTX / Duplex / MDIX Store-and-Forward technology Rugged DIN rail enclosure Configurable Alarm Contact Configurable Bi-Color Fault Status LED
  • Supply voltage (DC)
    43-300Vdc (48Vdc / 60Vdc / 72Vdc / 100Vdc / 110Vdc / 120Vdc / 127Vdc / 200Vdc / 220Vdc / 250Vdc)
  • Functions
    Industrial managed Ethernet switch SNMP v1; v2; v3 and Web Browser Management N-Ring Technology with 30ms Healing N-Link Redundant Ring Technology N-View Monitoring Technology EtherNet/IP CIP Messaging Web configuration IGMP Auto Configuration 802.1Q tag
  • Ambient air temperature for operation
    -40...+70 °C
  • Connection capacity
    11-ports
  • Material
    Metallic case
  • Order code / Manufacturer SKU
    711FXE3-SC-40-HV

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
