PXU11AC0 Red Lion Industrial Automation Components

PXU11AC0 on Advantage Electric Supply
Red Lion

Part#:PXU11AC0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU11AC0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This model, part of the PXU PID controllers series, features a 1/8 DIN vertical design measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for clear display. It offers a degree of protection rated at IP65 NEMA 4X and is powered by a 24Vdc supply voltage. The PXU11AC0 supports a 10Hz analog input sampling rate and utilizes the RS-485 communication protocol. It includes 1 x digital output (contact type 250Vac 3A) and 1 x secondary control output, alongside 1 x analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring protection and 2 x digital inputs for user-defined functions.

Product Details

  • Main function
    Temperature controller (Digital)
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Sub-range name
    PXU PID controllers series
  • Communication protocol
    RS-485
  • Degree of protection
    IP65 NEMA 4X
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Primary brand
    Red Lion
  • Supply voltage (DC)
    24Vdc
  • Digital inputs
    2 x digital inputs (user inputs)
  • Ambient air temperature for operation
    0...+50 °C
  • Product series / family name
    Process controllers
  • Design
    2 user inputs RS-485 rly. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Frequency
    10Hz analog input sampling rate
  • Functions
    Digital temperature / process PID controller
  • Mounting mode
    Flush
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Digital outputs
    1 x digital output (contact type 250Vac 3A) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Protection functions
    Heater current monitoring
  • Order code / Manufacturer SKU
    PXU11AC0
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU11AC0 Related Documents

Red Lion - PXU - Manual.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Data Sheet.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

PXU11AC0 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare PXU11AC0 with other Industrial Automation Components products

Main function

Display

Sub-range name

Communication protocol

Degree of protection

Analog inputs

Primary brand

Supply voltage (DC)

Digital inputs

Ambient air temperature f...

Selected product

PXU11AC0
Backordered
PXU11AC0
Red Lion

Red Lion PXU11AC0 is a digital temperature/process PID controller designed for flush mounting and op...

Main functionTemperature controller (Digi...

Display2 rows x 4-digits negative i...

Sub-range namePXU PID controllers series

Communication protocolRS-485

Degree of protectionIP65 NEMA 4X

Analog inputs1 x analog input (4-20mA / 0...

Primary brandRed Lion

Supply voltage (DC)24Vdc

Digital inputs2 x digital inputs (user inp...

Ambient air temperature for operation0...+50 °C

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Main functionEthernet Switch

Display-

Sub-range nameN-Tron 500-A series

Communication protocolEthernet

Degree of protection-

Analog inputs-

Primary brandRed Lion

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Digital inputs-

Ambient air temperature for operation-

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Main functionEthernet Switch

Display-

Sub-range nameN-Tron 100 series

Communication protocolEthernet

Degree of protection-

Analog inputs-

Primary brandRed Lion

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Digital inputs-

Ambient air temperature for operation-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

PXU10020 on Advantage Electric Supply

PXU10020

Verified stock: 0

Red Lion PXU10020 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It supports a network frequency of 50/60 Hz and features a design with relay control output, fitting a 1/8 DIN vertical slot (48x96mm) with 12mm orange/green digits. The supply voltage accommodates a wide range from 100 to 240Vac, including specific values such as 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, its dimensions are specified as 1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77"), and it offers a degree of protection rated at IP65 NEMA 4X. The frequency for analog input sampling is 10Hz, and it includes 1 x digital output (contact type 250Vac 3A) and 2 x digital outputs (contact type) for alarms. The analog input supports a variety of signals including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, and multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK) as well as RTD, with a 100ms sample period and 0.1 to 1° accuracy. Additionally, it features protection functions such as heater current monitoring.

Red Lion

PXU11A30 on Advantage Electric Supply

PXU11A30

Verified stock: 0

Red Lion PXU11A30 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. The controller is equipped with 2 user inputs, RS-485 relay control output, and a secondary relay control output, supporting a supply voltage (AC) of 100-240Vac across various standard voltages. As part of the PXU PID controllers series, it offers a degree of protection rated at IP65 NEMA 4X. The PXU11A30 has a frequency of 10Hz for analog input sampling rate and utilizes the RS-485 communication protocol. It includes 1 x digital output (contact type 250Vac 3A), 1 x secondary control output digital output (contact type), and 1 x analog input compatible with multiple signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, various thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring and 2 x digital inputs for user inputs.

Red Lion

PXU11AE0 on Advantage Electric Supply

PXU11AE0

Verified stock: 0

Red Lion PXU11AE0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C. It features 2 user inputs, RS-485 relay control output, and a secondary relay control output, all within a 1/4 DIN (96x96mm) form factor. The display consists of 22mm orange and 14mm green digits, ensuring clear visibility. As part of the PXU PID controllers series, it measures 1/4 DIN in dimensions (W96mm x H96mm / 3.77" x 3.77") and offers an IP65 NEMA 4X degree of protection. The supply voltage requirement is 24Vdc with a 10Hz analog input sampling rate. Communication is facilitated via RS-485 protocol. It includes 1 x digital output (contact type 250Vac 3A) and 1 x digital output for secondary control. The analog input supports a variety of signals including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. Heater current monitoring is included as a protection function, alongside 2 x digital inputs for user-defined applications.

Red Lion

PXU100C0 on Advantage Electric Supply

PXU100C0

Verified stock: 0

Red Lion PXU100C0 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/16 DIN size (48x48mm) with an 11mm orange and 7mm green digit display. The controller is equipped with 2 user inputs, RS-485 relay control output, and a secondary relay control output. It operates on a supply voltage of 100-240Vac, accommodating a wide range of AC inputs. Part of the PXU PID controllers series, it measures 1/16 DIN (W48mm x H48mm / 1.89" x 1.89") and offers a degree of protection rated at IP65 NEMA 4X. With a frequency of 10Hz for analog input sampling rate and RS-485 communication protocol, it includes 1 x digital output (contact type 250Vac 3A), 1 x secondary control output digital output (contact type), and 1 x analog input supporting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD with a 100ms sample period and 0.1 to 1° accuracy. The controller also features heater current monitoring and 2 digital inputs for user inputs.

Red Lion

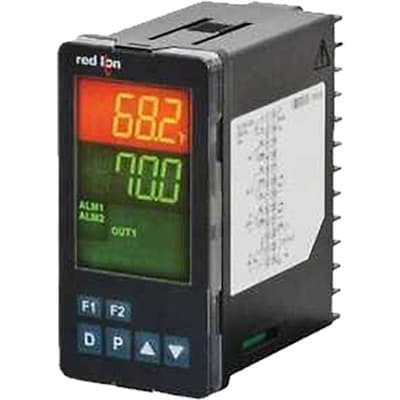

PXU11BC0 on Advantage Electric Supply
