PXU21AC0 Red Lion Industrial Automation Components

PXU21AC0 on Advantage Electric Supply
Red Lion

Part#:PXU21AC0

Manufacturer:Red Lion

Category:Industrial Automation Components

Product Lifecycle:Active

Product description

Red Lion PXU21AC0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for clear display. This model is part of the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. It is powered by a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. Communication is facilitated through an RS-485 protocol. The PXU21AC0 includes 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. For outputs, it features 1 digital output (S.S.R.) and 1 digital output (contact type) for secondary control. Additionally, it has 2 user inputs for digital inputs and incorporates heater current monitoring as a protection function.

Product Details

  • Primary brand
    Red Lion
  • Digital inputs
    2 x digital inputs (user inputs)
  • Dimensions
    1/8 DIN vertical (W49.5mm x H96.5mm / 1.89" x 3.77")
  • Product series / family name
    Process controllers
  • Functions
    Digital temperature / process PID controller
  • Communication protocol
    RS-485
  • Frequency
    10Hz analog input sampling rate
  • Main function
    Temperature controller (Digital)
  • Supply voltage (DC)
    24Vdc
  • Design
    2 user inputs RS-485 logic/S.S.R. control output secondary rly. control output 1/8 DIN vertical (48x96mm) 12mm orange / green digits
  • Protection functions
    Heater current monitoring
  • Compliant with standard(s)
    CE EN 61326-1 immunity to industrial locations EN 61010-1 UL Listed RoHS compliant
  • Display
    2 rows x 4-digits negative image backlit LCD display with orange characters (top row; 12mm high) and green characters (bottom row; 12mm high)
  • Digital outputs
    1 x digital output (S.S.R.) 1 x digital output (contact type) (SECONDARY CONTROL OUTPUT 2)
  • Degree of protection
    IP65 NEMA 4X
  • Sub-range name
    PXU PID controllers series
  • Mounting mode
    Flush
  • Analog inputs
    1 x analog input (4-20mA / 0-20mA / 0-50mVdc / 0-5Vdc / 0-10Vdc / Thermocouple types T; E; J; K; R; S; B; N; L; U; TXK / RTD; 100ms sample period; 0.1...1° accuracy)
  • Order code / Manufacturer SKU
    PXU21AC0
  • Ambient air temperature for operation
    0...+50 °C
  • Benefits
    Universal inputs Full PID control Easy programming Digital pot functionality AC / DC-powered models Reduced case depth IP65 ingress protection

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

PXU21AC0 Related Documents

Red Lion - PXU - Data Sheet.pdfRed Lion - PXU - Installation Guide.pdfRed Lion - PXU - Manual.pdf

Similar products from: Red Lion Industrial Automation Components

508TX-A on Advantage Electric Supply

508TX-A

Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features including IGMP Auto Configuration, VLAN, QoS, Trunking or Link aggregation, Port Mirroring, and N-View Remote Monitoring Technology. It operates with a supply voltage of 10-30Vdc, including redundant power inputs, and does not specify an AC supply voltage range. This model offers 8 RJ45 ports supporting 10/100BaseTX for connectivity and boasts a maximum throughput of 2.6Gbit/s. It uses Ethernet as its communication protocol and is designed for DIN rail mounting. The 508TX-A, part of the N-Tron 500-A series, is encased in a metallic housing and can operate within an ambient air temperature range of -40 to +85 degrees Celsius.

1 in stock
2ZR6AA-10 on Advantage Electric Supply

2ZR6AA-10

Red Lion

Red Lion 2ZR6AA-10 is a duplex fiber optic cable designed for multi-mode network applications. It features ST connectors on both ends, ensuring compatibility with a wide range of fiber optic equipment. The cable is 10 feet (3.05 meters) in length and is constructed with a 62.5/125 micron diameter, suitable for 1310nm wavelength networks. Its design focuses on connecting devices within a multi-mode fiber optic network using ST-ST connectors.

1 in stock
106FX2-ST on Advantage Electric Supply

106FX2-ST

Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates with a supply voltage range of 10-30Vdc, including redundant power inputs to enhance system reliability. This model features 4 RJ45 ports supporting 10/100BaseTX and 2 fiber optic ST connectors for multi-mode fiber with a 2km rated optical fiber length, ensuring broad compatibility and network extension capabilities. The switch is designed for a storage ambient air temperature range of -40 to +70 degrees Celsius and achieves a maximum throughput of 1.2Gbit/s, suitable for high-speed data transmission requirements. Its rated voltage is classified as IP30, indicating a degree of protection against solid objects. The 106FX2-ST utilizes DIN rail mounting technology for easy installation and comes in a metallic case, providing durability in industrial environments. It is part of the N-Tron 100 series, identified by the UNSPSC code as a 6-port Ethernet switch.

12 in stock
7018TX on Advantage Electric Supply

7018TX

Red Lion

Red Lion 7018TX is an industrial managed Gigabit Ethernet switch designed for robust and high-speed network performance. It features SNMP v1, v2, and Web Browser Management for comprehensive control and monitoring. The switch is equipped with N-Ring Technology ensuring a 30ms healing time for network recovery, alongside N-Link Redundant Ring and N-View Monitoring Technologies for enhanced network reliability and visibility. It supports EtherNet/IP CIP Messaging, IGMP Auto Configuration, 802.1Q tag VLAN, Port VLAN, 802.1p QoS, Port QoS, Port Trunking, and Port Mirroring for versatile network management. The 7018TX also includes 802.1d, 802.1w, and 802.1D RSTP for network resilience, a DHCP Server with Option 82 Relay, and IP Fallback for network flexibility. It offers Local Port IP Addressing, 802.1AB-2005 LLDP for device discovery, and MAC Address Based Filtering for port security. The switch has 16 RJ45 ports (10/100BaseTX) and 2 optional SFP (Mini-GBIC) Gigabit Transceivers slots, supporting a supply voltage of 10-30Vdc (12Vdc / 24Vdc) and operates within a temperature range of -40 to +70°C. It utilizes ESD and Surge protection on power inputs, is housed in a metallic case for durability, and is designed for DIN rail mounting, making it part of the N-Tron 7000 series.

1 in stock
7014FX2-ST on Advantage Electric Supply

7014FX2-ST

Red Lion

N-TRON® 7014FX2 Gigabit Capable Industrial Ethernet Switch

1 in stock

Manufacturer warranty

PXU21AC0 Red Lion

Get a quick Quote!

Request a quote, and we will send you price and availability within minutes.

Select Qty:

Average response time: 11 minutes

Fast Shipping & Delivery

We deliver nationwide and international

Secure Payment Processing

with money back guarantee

Warranty On All Parts

Manufacturer warranty

Responsive Customer Support

Let us know how we can help!

Need more details?

Feel free to chat with us

Compare PXU21AC0 with other Industrial Automation Components products

Primary brand

Digital inputs

Dimensions

Product series / family n...

Functions

Communication protocol

Frequency

Main function

Supply voltage (DC)

Design

Selected product

PXU21AC0
Backordered
PXU21AC0
Red Lion

Red Lion PXU21AC0 is a digital temperature/process PID controller designed for flush mounting and op...

Primary brandRed Lion

Digital inputs2 x digital inputs (user inp...

Dimensions1/8 DIN vertical (W49.5mm x ...

Product series / family nameProcess controllers

FunctionsDigital temperature / proces...

Communication protocolRS-485

Frequency10Hz analog input sampling r...

Main functionTemperature controller (Digi...

Supply voltage (DC)24Vdc

Design2 user inputs RS-485 logic/S...

508TX-A
1 in stock
508TX-A
Red Lion

Red Lion 508TX-A is an Ethernet Switch designed for industrial process control with features includi...

Primary brandRed Lion

Digital inputs-

Dimensions-

Product series / family nameEthernet switches

FunctionsIndustrial process control m...

Communication protocolEthernet

Frequency-

Main functionEthernet Switch

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Design-

106FX2-ST
12 in stock
106FX2-ST
Red Lion

Red Lion 106FX2-ST is an industrial Ethernet switch designed for automation networks. It operates wi...

Primary brandRed Lion

Digital inputs-

Dimensions-

Product series / family nameEthernet switches

FunctionsIndustrial Ethernet switch

Communication protocolEthernet

Frequency-

Main functionEthernet Switch

Supply voltage (DC)10-30Vdc (12Vdc / 24Vdc) (re...

Design-

About the manufacturer

Red Lion

Advantage Electric Supply is an authorized Red Lion distributor, proudly offering their wide range of innovative industrial automation and networking products. As a leading manufacturer in the industry, Red Lion specializes in delivering reliable solutions that enhance connectivity, monitoring, and control within industrial environments. Their extensive product line includes Human Machine Interfac...

Recently viewed products

Relevant products

PXU21CE0 on Advantage Electric Supply

PXU21CE0

Verified stock: 0

Red Lion PXU21CE0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This model, part of the PXU PID controllers series, features a 1/4 DIN size (96mm x 96mm / 3.77" x 3.77") and offers a degree of protection rated at IP65 NEMA 4X. It is equipped with a 24Vdc supply voltage and supports a 10Hz analog input sampling rate. Communication is facilitated through an RS-485 protocol. The PXU21CE0 includes one digital output (S.S.R.), one digital output (contact type) for secondary control, and one analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. It also features heater current monitoring for protection, one digital input for user input, and one analog output for retransmission. The design includes a 22mm orange / 14mm green digit display for clear visibility.

Red Lion

PXU21DE0 on Advantage Electric Supply

PXU21DE0

Verified stock: 0

Red Lion PXU21DE0 is a digital temperature/process PID controller designed for flush mounting and operates within an ambient air temperature range of 0 to +50°C. This controller, part of the PXU PID controllers series, features a logic/S.S.R. control output and a secondary relay control output, with dimensions conforming to 1/4 DIN standards (W96mm x H96mm / 3.77" x 3.77"). It offers an IP65 NEMA 4X degree of protection and requires a 24Vdc supply voltage. The PXU21DE0 supports a 10Hz analog input sampling rate and utilizes RS-485 for communication. It includes 1 x digital output (S.S.R.), 1 x digital output (contact type) for secondary control, and 2 x analog inputs supporting various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), RTD, with a 100ms sample period and 0.1 to 1° accuracy, plus an additional analog input for remote setpoint. The controller also features heater current monitoring and 1 x digital input for user input.

Red Lion

PXU21A20 on Advantage Electric Supply

PXU21A20

Verified stock: 0

Red Lion PXU21A20 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/16 DIN (48x48mm) design with 11mm orange and 7mm green digits for display. The controller is equipped with 2 user inputs, RS-485 logic, S.S.R. control output, and a secondary relay control output. It supports a supply voltage (AC) of 100-240Vac, accommodating a wide range of voltages including 100Vac, 110Vac, 120Vac, 200Vac, 208Vac, 220Vac, 230Vac, and 240Vac. As part of the PXU PID controllers series, it measures 1/16 DIN (W48mm x H48mm / 1.89" x 1.89") and offers a degree of protection of IP65 NEMA 4X. The controller has a frequency of 10Hz for analog input sampling rate and utilizes the RS-485 communication protocol. It includes 1 x digital output (S.S.R.) and 1 x digital output (contact type) for secondary control output 2, along with 1 x analog input supporting various signal types and thermocouple types with a 100ms sample period and 0.1 to 1° accuracy. The PXU21A20 also features heater current monitoring protection and 2 x digital inputs for user inputs.

Red Lion

PXU21A30 on Advantage Electric Supply

PXU21A30

Verified stock: 0

Red Lion PXU21A30 is a digital temperature/process PID controller designed for flush mounting with an operational ambient air temperature range of 0 to +50°C and a network frequency of 50/60 Hz. It features a 1/8 DIN vertical design, measuring 49.5mm in width and 96.5mm in height, with 12mm orange/green digits for display. The controller is equipped with 2 user inputs, RS-485 logic, a solid-state relay (S.S.R.) control output, and a secondary relay control output, supporting a supply voltage range of 100-240Vac. It falls under the PXU PID controllers series and offers a degree of protection rated at IP65 NEMA 4X. With a 10Hz analog input sampling rate and RS-485 communication protocol, it includes 1 digital output (S.S.R.), 1 digital output (contact type) for secondary control, and 1 analog input compatible with various signal types including 4-20mA, 0-20mA, 0-50mVdc, 0-5Vdc, 0-10Vdc, multiple thermocouple types (T, E, J, K, R, S, B, N, L, U, TXK), and RTD, with a 100ms sample period and 0.1 to 1° accuracy. The PXU21A30 also features heater current monitoring and 2 digital inputs for user-defined functions.

Red Lion

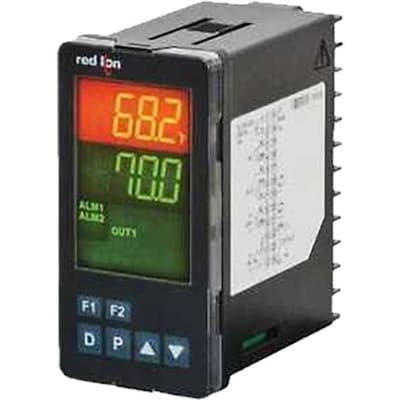

PXU21B30 on Advantage Electric Supply
