Product description

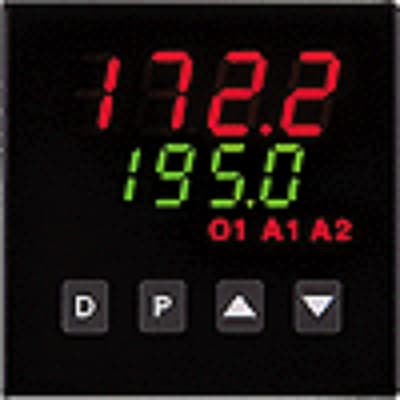

Digital temperature controller with logic/S.S.R. main output + 1 rly. ALARM1 output + 1 rly. ALARM2 (or cooling) output + remote setpoint input - 1/16 DIN (48x48mm) - Red Lion (Process controllers T48 temperature controllers series) - with 1 x analog inpu

Product Details

  • Main function
    Temperature controller (Digital)
  • Supply voltage (AC)
    24Vac
  • Design
    logic/S.S.R. main output 1 rly. ALARM1 output 1 rly. ALARM2 (or cooling) output remote setpoint input 1/16 DIN (48x48mm)
  • Digital outputs
    1 x digital output (S.S.R.) (Main output O1) 1 x digital output (250Vac / 30Vdc; 3A; contact type) (ALARM1) 1 x digital output (250Vac / 30Vdc; 3A; contact type) (O2 / ALARM2)
  • Benefits
    PID control with reduced overshoot On demand auto-tuning of PID control settings NEMA 4x / IP65 bezel Dual led displays for simultaneous indication of temperature and setpoint Status indicators for outputs and control modes Accepts 10 types of sensor inpu
  • Degree of protection
    IP65 NEMA 4X
  • Primary brand
    Red Lion
  • Sub-range name
    T48 temperature controllers series
  • Supply voltage (DC)
    18-36Vdc (24Vdc)
  • Compliant with standard(s)
    CE IEC/EN 61010-1 IEC 60068-2-6 (vibration) EN 61326-1 immunity to industrial locations UL recognized RoHS compliant
  • Product series / family name
    Process controllers
  • Functions
    Digital temperature controller
  • Analog inputs
    1 x analog input (Thermocouple types T; E; J; K; R; S; B; N / Pt100 RTDs / 100ms sample period; 300-400ms response time) (Main temperature input; 0.1...1° accuracy) 1 x analog input (0-20mA / 4-20mA) (Remote setpoint input)
  • Dimensions
    1/16 DIN (W48mm x H48mm / 1.89" x 1.89")
  • Order code / Manufacturer SKU
    T4821113

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
