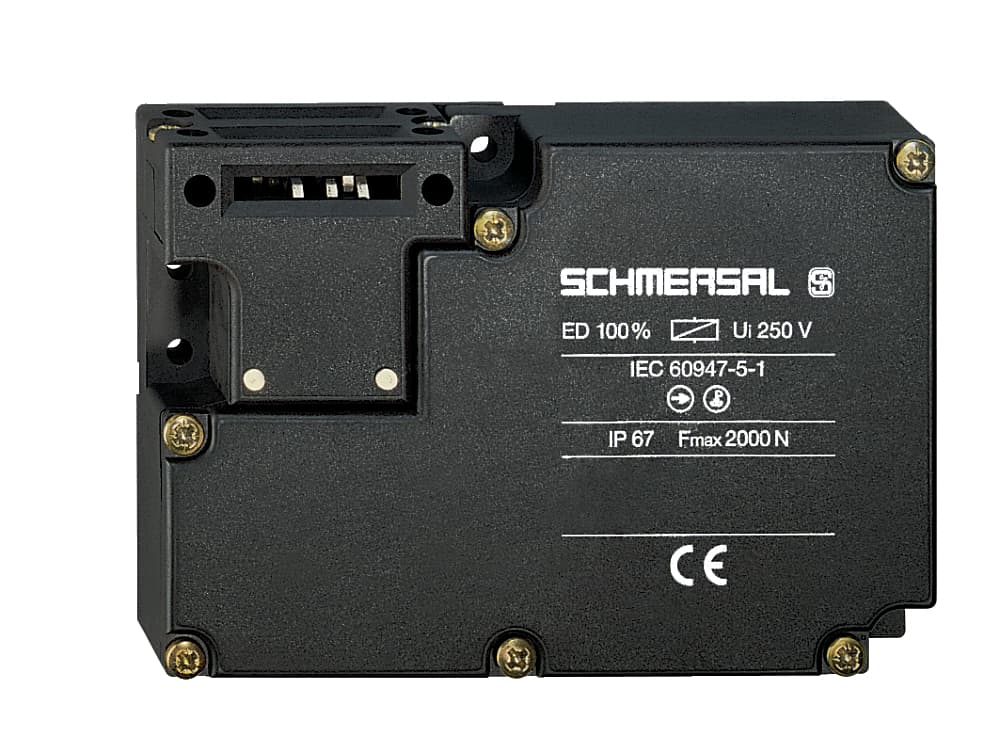

AZM 161CC-12/12RKTD -110/230 Schmersal Safety Switches
Part#:AZM 161CC-12/12RKTD -110/230
Alt. Part#:101187922
Manufacturer:Schmersal
Category:Safety Switches
Product Lifecycle:Active
Product description
Solenoid interlocks; Large wiring compartment; Emergency exit, cover-side; cable entries 4 M 16 x 1.5; Thermoplastic enclosure; Double-insulated; Interlock with protection against incorrect locking.; 130 mm x 90 mm x 30 mm; 6 Contacts; Long life
Product Details
- Manual release Yes
- Actuating speed, maximum 2 m/s
- Note (Cable section) All indications about the cable section are including the conductor ferrules.
- Required rated short-circuit current to EN 60947-5-1 1,000 A
- Electrical power consumption, maximum 10 W
- Standards EN 60947-5-1, BG-GS-ET-19
- Number of safety contacts 4
- Power to unlock Yes
- Positive break force, minimum 20 N
- Ambient temperature, minimum -25 °C
- Switching element NO contact, NC contact
- Active principle electromechanical
- Clamping force in accordance with ISO14119 Fzh 2,000 N
- Width of sensor 130 mm
- Ambient temperature, maximum +60 °C
- Switching principle Creep circuit element
- Number of auxiliary contacts 2
- positive break travel 10 mm
- Enclosure material Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
- Degree of protection IP67 to EN 60529
- Thermal test current 6 A
- Gross weight 460 g
- Material of the contacts, electrical Silver
- Terminal Connector Cage clamps
- Height of sensor 90 mm
- Switching frequency 1,000 /h
- Current, Utilisation category DC13 2.5 A
- Number of actuating directions 3
- Mechanical life, minimum 1,000,000 Operations
- Cable section, minimum 1 x 0.25 mm²
- Rated impulse withstand voltage Uimp 4 kV
- Current, Utilisation category AC-15 4 A
- Coding level according to ISO 14119 Low
- Latching force 30 N
- Length of sensor 30 mm
- Rated control voltage 230 VAC
- Voltage, Utilisation category DC13 24 VDC
- Emergency exit Yes
- Actuating play in direction of actuation 5.5 mm
- Cable section, maximum 1 x 1.5 mm²
- Rated insulation voltage Ui 250 V
- Voltage, Utilisation category AC15 230 VAC
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
