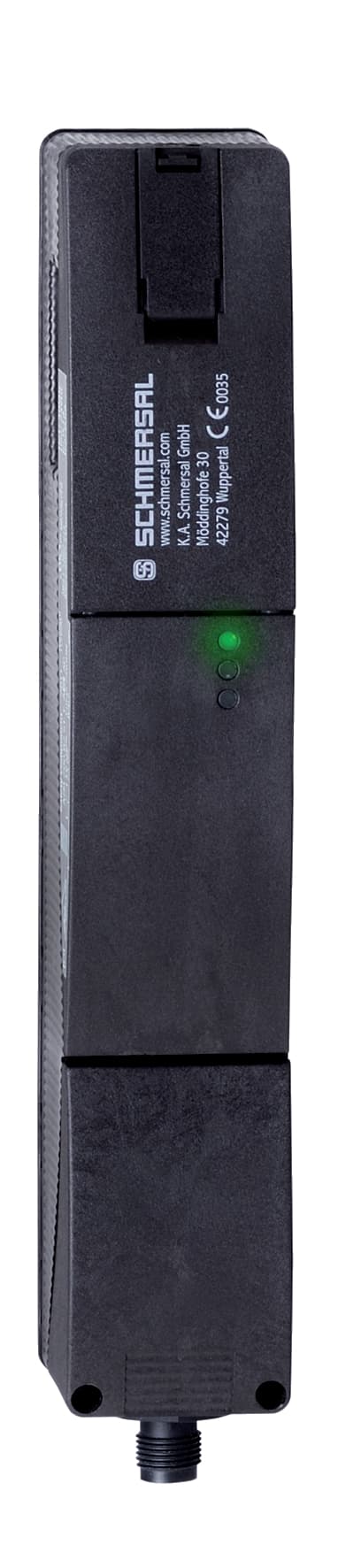

AZM201BZ-I2-ST-T-AS-A-P Schmersal Safety Switch Interlocks

Product Details

• Active principle
  RFID
• Power to lock
  Yes
• Latching force
  30 N
• Height of sensor
  220 mm
• Restistance to shock
  30 g / 11 ms
• Note (AS-i Operating voltage)
  Protection against polarity reversal
• AS-i, ID-Code1
  0xF
• AS-i Parameter bits, P1
  Solenoid interlock locked
• Note (AS-i Parameter bits)
  FID: periphery error
• Coding level according to ISO 14119
  High
• Latching
  Yes
• Tightening torque for the fixing screws, maximum
  8 Nm
• Relative humidity, minimum
  10 %
• Rated insulation voltage Ui
  32 VDC
• AS-i Current consumption, maximum
  100 mA
• AS-i Outputs, DO 1
  No Function
• AS-i Parameter bits, P3
  Internal device error (FID)
• Gross weight
  538.1 g
• Manual release
  Yes
• Actuator and interlock combined monitored
  Yes
Mechanical life, minimum
1,000,000 Operations
Ambient temperature, minimum
-25 °C
Relative humidity, maximum
95 %
Switching frequency, maximum
1 Hz
AS-i Version
V 3.0
AS-i Outputs, DO 0
Solenoid control
Rated operating voltage
24 VDC -15% / +10% (stabilised PELV)
Reaction time, maximum
100 ms
Duration of risk, maximum
200 ms
Actuating speed, maximum
0.2 m/s
Degree of protection
IP66 to EN 60529, IP67 to EN 60529
Protection rating
III
AS-i Operating voltage, minimum
26.5 VDC
AS-i Outputs, DO 3
No Function
Operating current
500 mA
general information
Individual coding, multiple teaching
Safety functions
Yes
Terminal Connector
Connector plug M12, 4-pole, (A-coding)
Width of sensor
40 mm
Note (Relative humidity)
non-condensing, non-icing
AS-i, ID-Code
0xB
AS-i Parameter bits, P0
Safety guard and actuator detected
Resistance to vibrations to EN 60068-2-6
10 … 150 Hz, amplitude 0.35 mm
AS-i, IO-Code
0x7
AS-i Outputs, DO 2
No Function
Standards
EN ISO 13849-1, IEC 61508, IEC 60947-5-3
Enclosure material
Glass-fibre, reinforced thermoplastic
Number of actuating directions
2
Ambient temperature, maximum
+60 °C
Degree of pollution to IEC/EN 60664-1
3
AS-i Profile
S-7.B.F.E
AS-i Input, Channel 1
Data bits DI 0 / DI 1 = dynamic code transmission
AS-i Parameter bits, P2
Magnet voltage in tolerance range
Integral System Diagnostics, status
Yes
Clamping force, maximum Fmax
2,600 N
Storage and transport temperature, maximum
+85 °C
Overvoltage category
III
AS-i Operating voltage AS-i maximum
31.6 VDC
AS-i Input, Channel 2
Data bits DI 2 / DI 3 = dynamic code transmission
Note (AS-i Input module address)
Preset to address 0, can be changed through AS-interface bus master or hand-held programming device
Time to readiness, maximum
4,000 ms
Clamping force in accordance with ISO14119 Fzh
2,000 N
Length of sensor
50 mm
Storage and transport temperature, minimum
-25 °C
Rated impulse withstand voltage Uimp
0.8 kV
AS-i Specification
Safety-Slave
AS-i, ID-Code2
0xE
AS-i Input module address
0
