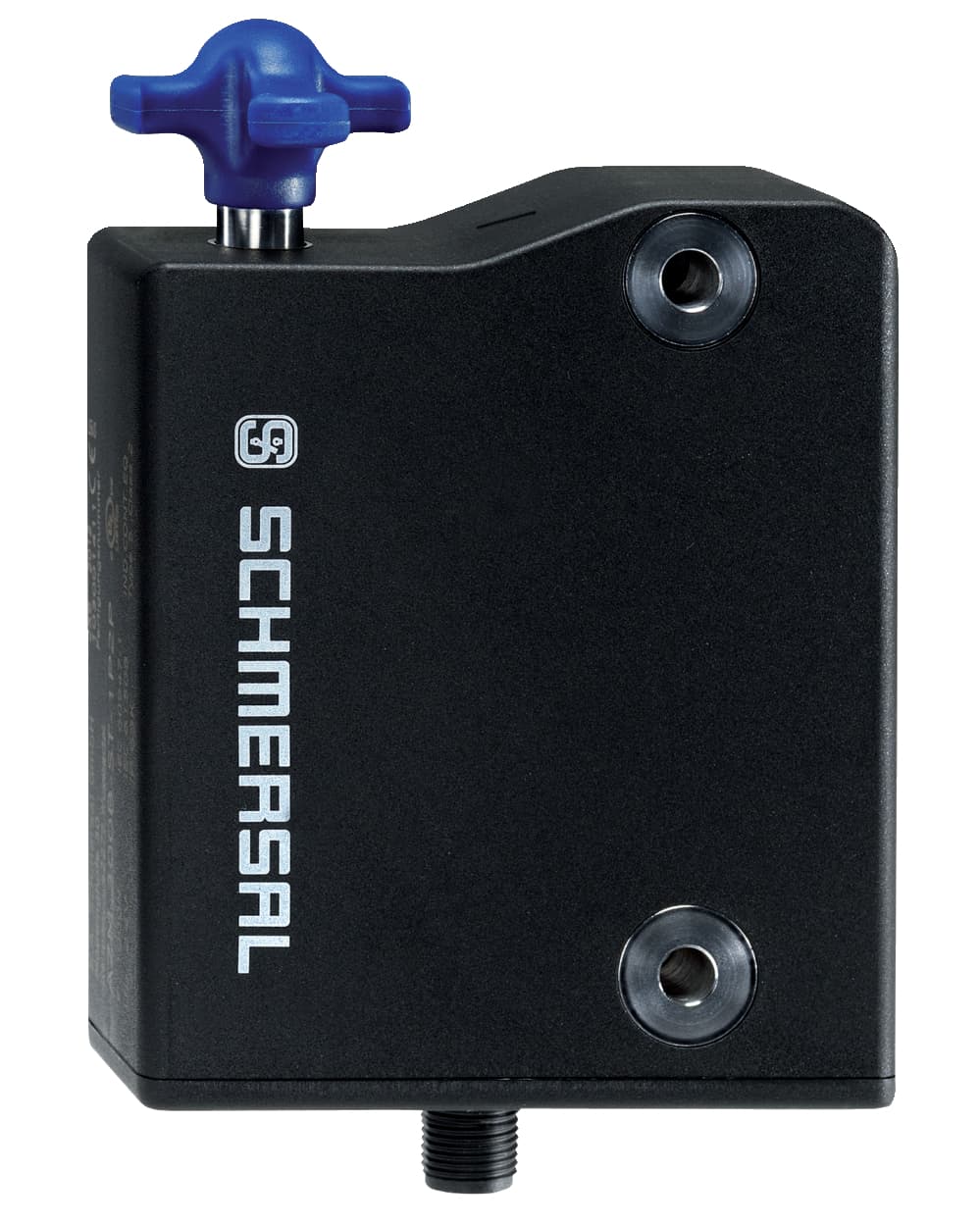

AZM300Z-I2-ST-1P2P-A Schmersal Safety Switches

Product Details

• Standards
  IEC 61508, IEC 60947-5-3, EN ISO 13849-1
• Short-circuit recognition
  Yes
• Latching force, adjustable, position 2
  50 N
• Height of sensor
  35 mm
• Restistance to shock
  30 g / 11 ms
• Operating voltage, maximum
  26.4 VDC
• Current consumption with solenoid ON, average
  200 mA
• Classification ZVEI CB24I, Sink
  C1, C2
• Voltage, Utilisation category DC12
  24 VDC
• Test pulse interval, minimum
  100 ms
• Versions
  short-circuit proof, p-type
• Gross weight
  550 g
• Manual release
  Yes
• Mechanical life, minimum
  1,000,000 Operations
• Switch distance
  2 mm
• Degree of protection
  IP66 to EN 60529, IP67 to EN 60529, IP69 to EN 60529
• Resistance to vibrations to EN 60068-2-6
  10 … 150 Hz, amplitude 0.35 mm
• Active principle
  RFID
• Response time safety outputs in case of switch-off by safety inputs, maximum
  1.5 ms
• Number of fail-safe digital outputs
  2
Tightening torque for the fixing screws, maximum
7 Nm
Note (length of the sensor chain)
Cable length and cross-section change the voltage drop dependiing on the output current
Storage and transport temperature, minimum
-10 °C
Time to readiness, maximum
5,000 ms
Duration of risk, maximum
200 ms
Safety functions
Yes
Angular offset between interlocking device and actuator, maximum
2 °
Ensured switch distance ON Sao
1 mm
Ambient temperature, minimum
+0 °C
Zulässige Aufstellhöhe über NN, maximum
2,000 m
Notes (Power supply, general)
stabilised PELV power supply
Duty cycle solenoid
100 %
Voltage drop Ud, maximum
4 V
Frequency band RFID
125 kHz
Latching
Yes
Clamping force in accordance with ISO14119 Fzh
1,150 N
Ensured switch distance OFF Sar
20 mm
Width of sensor
87.5 mm
Protection rating
III
No-load supply current I0
100 mA
Switching thresholds
−3 V … 5 V (Low), 15 V … 30 V (High)
Test pulse interval, typical
1000 ms
Coding level according to ISO 14119
High
Short circuit detection
Yes
Clamping force, maximum Fmax
1,500 N
Length of sensor
120 mm
Relative humidity, maximum
93 %
Degree of pollution to IEC/EN 60664-1
3
Switching frequency, maximum
0.5 Hz
Ambient temperature, maximum
+60 °C
general information
Individual coding, multiple teaching
Response time safety outputs in case of switch-off by actuator, maximum
100 ms
Note (Mechanical lifetime)
When using as door stop: ≥ 50.000 operations (door mass ≤ 5 kg and actuating speed ≤ 0.5 m/s)
Terminal Connector
Connector M12, 8-pole, A-coded
Rated impulse withstand voltage Uimp
0.8 kV
Current consumption at 24V
5 mA
Current leakage Ir
0.5 mA
Transmit power, maximum
-6 dB/m
Guard locking monitored
Yes
Integral System Diagnostics, status
Yes
Type of the fixing screws
2x M6
Enclosure material
Plastic, glass-fibre reinforced thermoplastic, self-extinguishing
Power to lock
Yes
Series-wiring
Yes
Latching force, adjustable, position 1
25 N
Tightening torque of the fixing screws, minimum
6 Nm
Length of sensor chain, maximum
200 m
Note (Relative humidity)
non-condensing, non-icing
Overvoltage category
III
External wiring and device fuse rating
2 A gG
Current, Utilisation category DC13
0.05 A
Current, Utilisation category DC12
0.05 A
Note (series connection of the sensors)
Unlimited number of devices, oberserve external line fusing, max. 31 devices in case of serial diagnostic SD
Storage and transport temperature, maximum
+90 °C
Current consumption with solenoid ON, peak
350 mA / 200 ms
Test pulse duration, maximum
0.5 ms
Rated insulation voltage Ui
32 VDC
Operating voltage, minimum
20.4 VDC
Required rated short-circuit current to EN 60947-5-1
100 A
Classification ZVEI CB24I, Source
C2
Voltage, Utilisation category DC13
24 VDC
