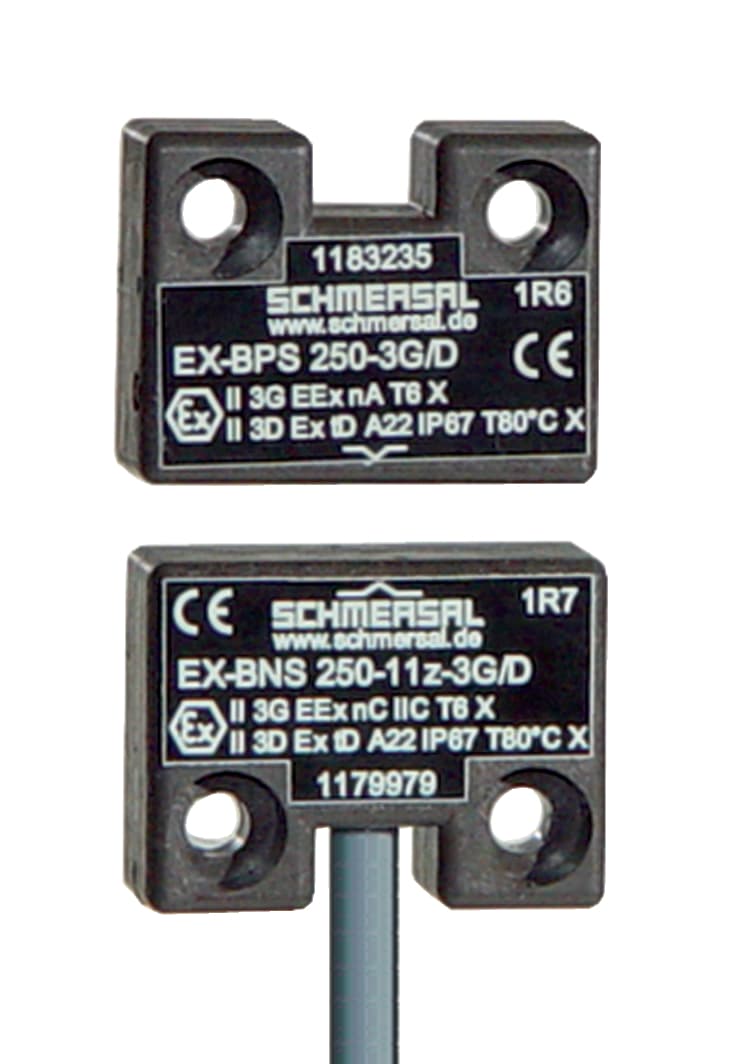

EX-BNS 250-11Z-3G/D 3,0M Schmersal Electronic Components
Part#:EX-BNS 250-11Z-3G/D 3,0M
Alt. Part#:101192532
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Safety sensors; Explosion protection for ATEX Zones 2 and 22; Thermoplastic enclosure; 33 mm x 25 mm x 13 mm; Small body; Concealed mounting possible; Insensitive to transverse misalignment; no mechanical wear; For intrinsically safe current circuits (Ex
Product Details
- Switching current, maximum 0.1 A
- Degree of protection IP67
- Length of cable 3 m
- Installation conditions (mechanical) not flush
- Versions Miscellaneous, Reed contacts
- Switching frequency, maximum 5 Hz
- Switching capacity, maximum 1 W
- Storage and transport temperature, minimum -25 °C
- Switching voltage, maximum 24 VDC
- Restistance to shock 30 g / 11 ms
- Voltage type DC (direct current)
- Storage and transport temperature, maximum +70 °C
- Resistance to vibrations to EN 60068-2-6 10 … 55 Hz, amplitude 1 mm
- Ambient temperature, maximum +70 °C
- Ambient temperature, minimum -25 °C
- Width of sensor 33 mm
- Height of sensor 25 mm
- Length of sensor 13 mm
- Material of the Cable mantle PVC
- Wire cross-section 23 AWG
- Terminal Connector Cable
- Actuating element Magnet
- Impact energy, maximum 1 J
- Direction of motion Head-on to the active surface
- Ensured switch distance OFF Sar 14 mm
- Ensured switch distance ON Sao 4 mm
- Active area front side
- Number of shutters 1
- Enclosure material Glass-fibre, reinforced thermoplastic
- Coding Yes
- Short circuit detection Yes
- Number of openers 1
- Prerequisite evaluation unit Yes
- Short-circuit recognition Yes
- Gross weight 130 g
- Housing construction form Block
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
