SLG 410-E/R0500-02- 12 Schmersal Electronic Components

Name: SLG 410-E/R0500-02- 12
Brand: Schmersal

SLG 410-E/R0500-02- 12 on Advantage Electric Supply

Part#:SLG 410-E/R0500-02- 12

Alt. Part#:101160920

Manufacturer:Schmersal

Category:Electronic Components

Product Lifecycle:Discontinued

Product description

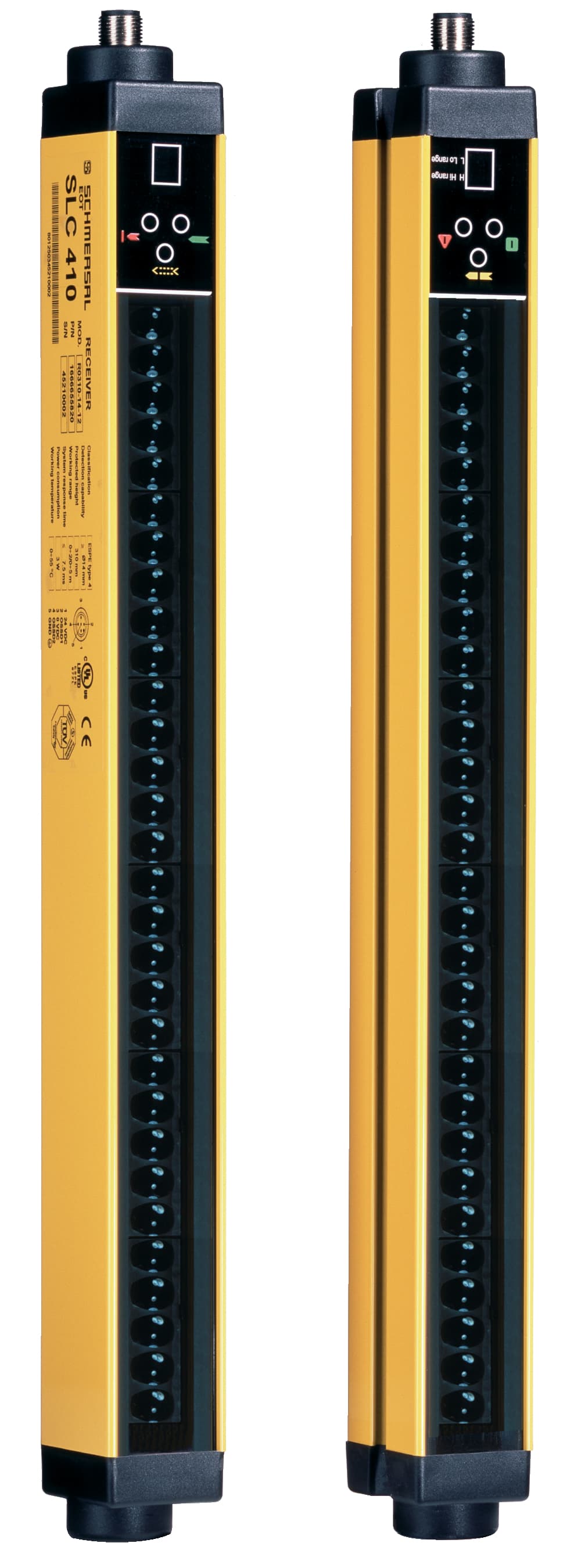

Safety light grids and curtains (Archive); Safety light grids (archive); Control Category 4; NOTICE: Not available! (Replacement: SLG 420)

Product Details

Versions
p-type
Output current, (fail-safe output), maximum
0.5 A
Length of cable, maximum
100 m
Switching voltage OSSD, HIGH signal
24 V
Electrical power consumption of the transmitter
2 W
Electrical power consumption of the receiver
3 W
Voltage type
DC (direct current)
Storage and transport temperature, maximum
+70 °C
Storage and transport temperature, minimum
-20 °C
Protection rating
III
Ambient temperature, maximum
+55 °C
Ambient temperature, minimum
+0 °C
Degree of protection
IP65 to EN 60529
Width of sensor
45 mm
Height of sensor
711 mm
Terminal connector, Recipient
Connector plug M12, 5-pole
Terminal, Connector, Transmitter
Connector plug M12, 5-pole
Terminal Connector
Connector
Length of sensor
35 mm
Wave length of the sensor
950 nm

Height of the protection field

510 mm

Integral System Diagnostics, status

Yes

Range, protection field, maximum

18,000 mm

Gross weight

3,950 g

Standards

IEC/EN 61496-1/-2

Range, protection field, minimum

0 mm

Number of fail-safe digital outputs

Number of beams

Beam coding available

Yes

Integral System Diagnostics

Yes

Beam distance

500 mm

Enclosure material

Aluminium

Reaction time, maximum

6 ms

Design of multi-ray photoelectric barrier

Emitter and receiver, separated

Product condition

New Factory Sealed

New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.

SLG 410-E/R0500-02- 12 Related Documents

Datasheet.pdf
