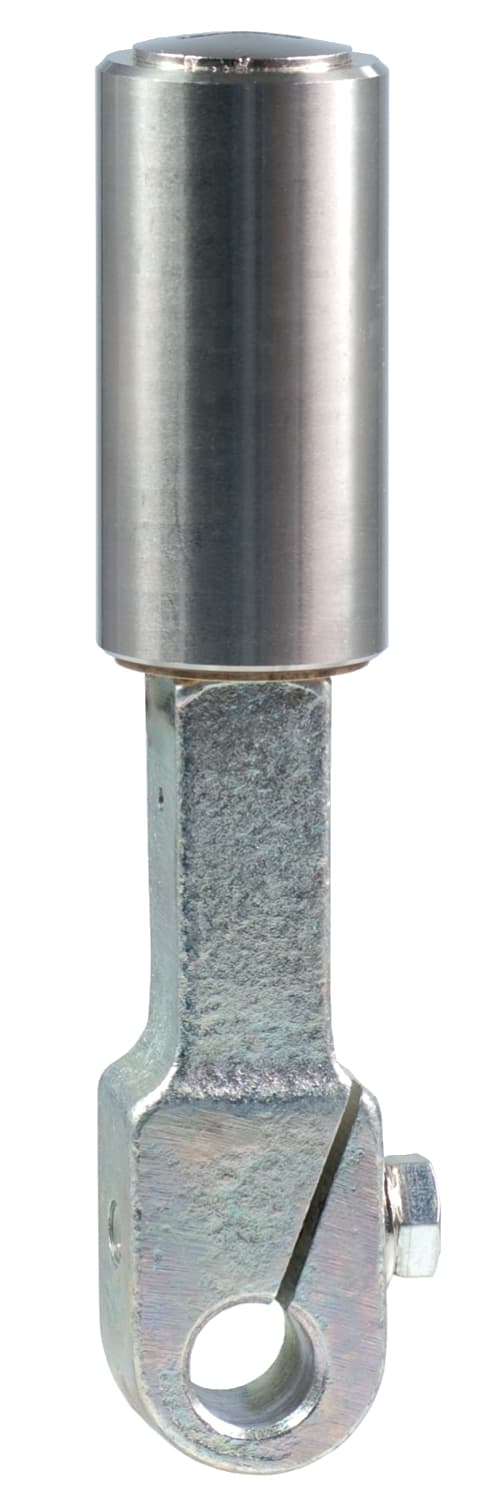

T. 441-11Y-966 Schmersal Electronic Components
Part#:T. 441-11Y-966
Alt. Part#:101081746
Manufacturer:Schmersal
Category:Electronic Components
Product Lifecycle:Active
Product description
Belt alignment switch; 2 cable entries M20; Metal enclosure; 2 Contacts; 106 mm x 99 mm x 63 mm ( basic component); Suitable for heavy duty
Product Details
- Switching frequency 3,000 /h
- Switching principle Creep circuit element
- Ambient temperature, maximum +90 °C
- Rated impulse withstand voltage Uimp 6 kV
- Thermal test current 16 A
- Rated insulation voltage Ui 400 V
- Switching element NO contact, NC contact
- Utilisation category AC-15 400 VAC
- Ambient temperature, minimum -30 °C
- Degree of protection IP65 to EN 60529
- Height of the lever 159 mm
- Width of the lever 32 mm
- Length of the lever 32 mm
- Height of sensor 99 mm
- Active principle mechanical
- Diameter of Castor 32 mm
- Width of sensor 106 mm
- Number of shutters 1
- Standards EN 60947-5-1
- Cable section, maximum 2.5 mm²
- Length of sensor 63 mm
- Cable section, minimum 1.5 mm²
- Gross weight 2,042 g
- Number of openers 1
- Enclosure coating material painted
- Material of the contacts, electrical Silver
- Mechanical life, minimum 10,000,000 Operations
- Actuation direction each time 60° right-hand side and left-hand side rotation
- Terminal Connector Screw connection
- Contact opening 2 x 6 mm
- Enclosure material Grey cast iron, galvanised
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
