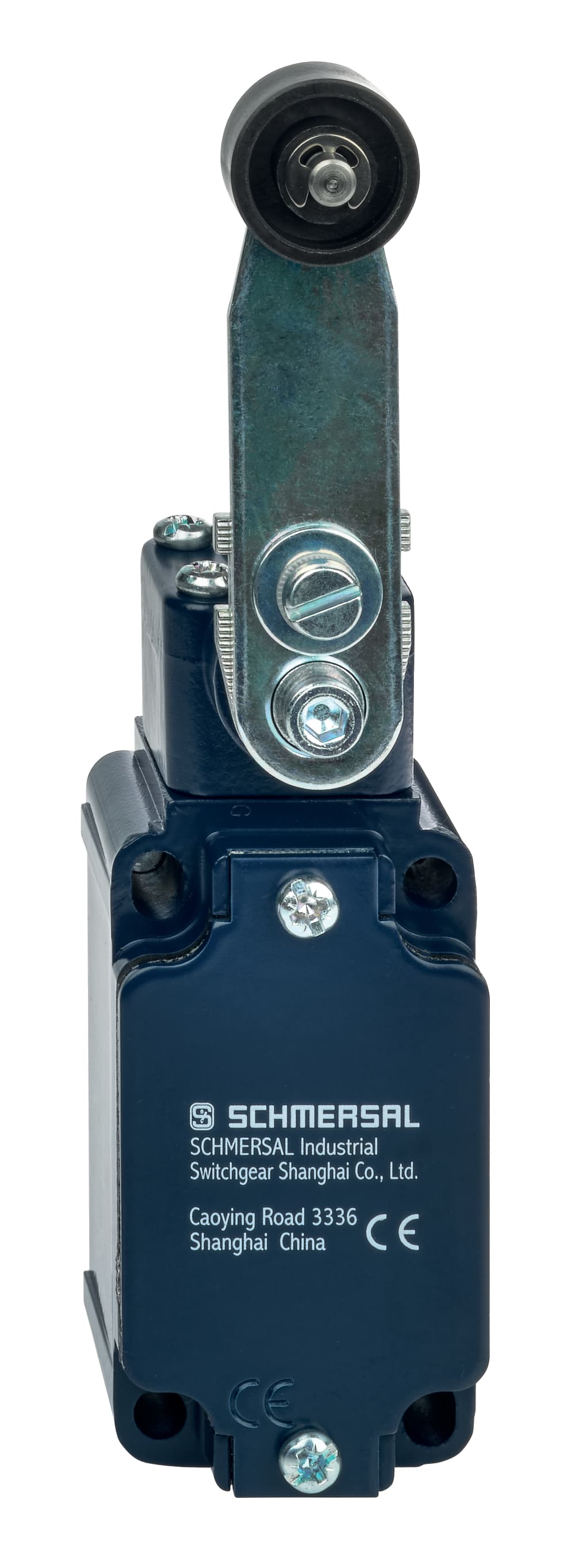

T4V7H 335-12ZUE Schmersal Electronic Components

Product Details

• Gross weight
  270 g
• Actuating element
  Roller lever
• Terminal Connector
  Screw connection
• Rated impulse withstand voltage Uimp
  4 kV
• Lever material
  Metal film
• Number of auxiliary contacts
  1
• Cable section, minimum
  0.75 mm²
• Ambient temperature, maximum
  +80 °C
• Switching frequency
  5,000 /h
• Number of safety contacts
  2
• Roller material
  Plastic
• Enclosure material
  Light alloy die-casting
• Note (Switchover time)
  Switchover time in accordance with actuating speed
• Length of sensor
  57.3 mm
• Width of sensor
  40.5 mm
• Thermal test current
  10 A
• Utilisation category DC-13
  24 VDC
• Switching principle
  Slow action with overlapping contacts
• Enclosure coating material
  painted
• Actuating torque, minimum
  0.3 Nm
Rated insulation voltage Ui
500 V
Actuating speed, maximum
2.5 m/s
Cable section, maximum
2.5 mm²
Ambient temperature, minimum
-30 °C
Utilisation category AC-15
230 VAC
Material of the contacts, electrical
Silver
Housing construction form
Norm construction design
Note (Cable section)
All indications about the cable section are including the conductor ferrules.
Height of sensor
173.5 mm
Required rated short-circuit current to EN 60947-5-1
1,000 A
Mechanical life, minimum
30,000,000 Operations
Note (Actuating speed)
Actuating speed with actuating angle 30° to switch axis
Degree of protection
IP65 to EN 60529, IP67 to EN 60529
Switching element
NO contact, NC contact
Bounce duration, maximum
2 ms
