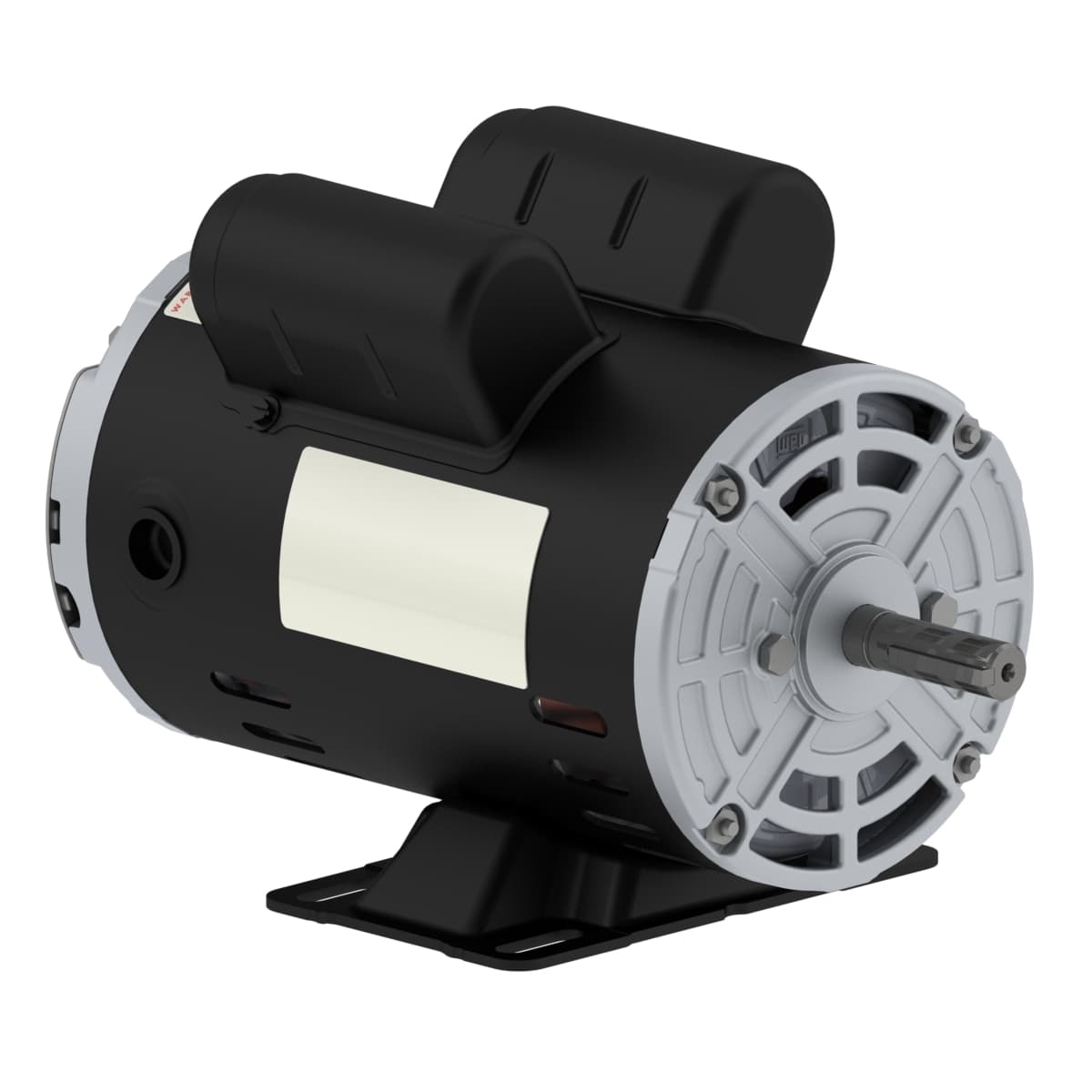

.2536OT1BW56-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 115/208-230 V
- Output Rating 0.25 HP
- Rated Speed 3510 rpm
- Flange Type Without
- Approx. weight³ 17.2 lb
- Terminal box¹ Without Terminal Box
- Flange Without
- Output rating 0.25 HP
- Synchronous speed 3600 rpm
- Number of poles 2
- Voltage 115/208-230 V
- Noise level² 56.0 dB(A)
- Standard NEMA MG-1
- Duty Cycle Cont.(S1)
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Rotation¹ Both (CW and CCW)
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Enclosure IC01 - ODP
- Temperature rise 80 K
- Service factor 1.35 (1.00 @ 208V)
- Insulation Class F
- Design N
- Moment of inertia (J) 0.0211 sq.ft.lb
- Locked rotor time 32s (cold) 18s (hot)
- Rated torque 0.374 ft.lb
- Breakdown torque 310 %
- Locked rotor torque 280 %
- LRC 8.8x(Code M)
- No load current 1.00/0.431-0.500 A
- L. R. Amperes 22.0/12.1-11.0 A
- Rated current 2.50/1.38-1.25 A
- Slip 2.50 %
- Rated voltage 115/208-230 V
- Frequency 60 Hz
- Rated speed 3510 rpm
- Frame W56
- Output 0.25 HP (0.18 kW)
- Number of Poles 2
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
