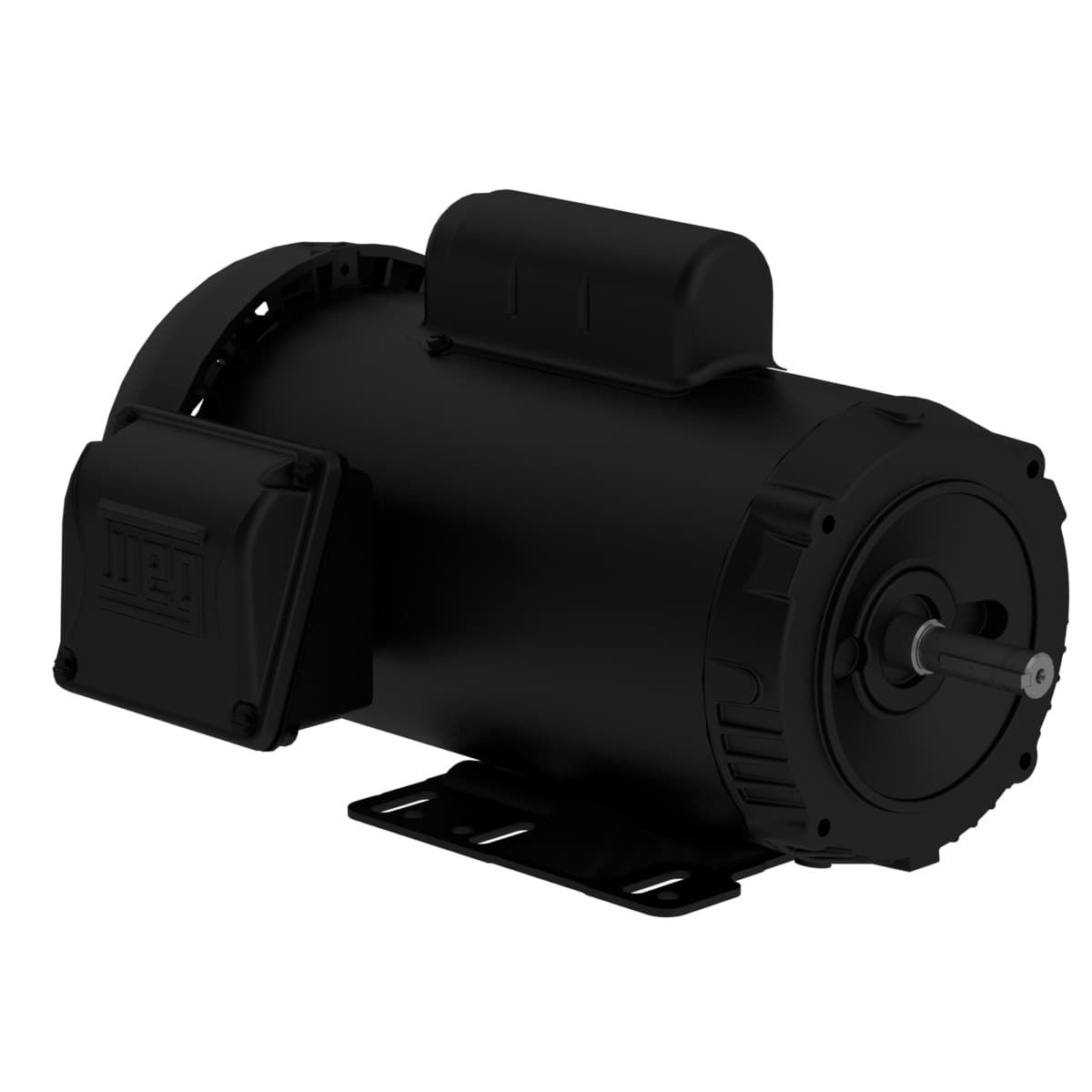

.3318ES1BW56C-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 115/208-230 V
- Output Rating 0.33 HP
- Rated Speed 1735 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 0.33 HP
- Number of poles 4
- Approx. weight³ 19.2 lb
- Voltage 115/208-230 V
- Synchronous speed 1800 rpm
- Standard NEMA MG-1
- Enclosure IC411 - TEFC
- Noise level² 52.0 dB(A)
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Temperature rise 80 K
- Service factor 1.15 (1.00 @ 208V)
- Insulation Class F
- Design N
- Locked rotor torque 320 %
- LRC 5.6x(Code N)
- Moment of inertia (J) 0.0399 sq.ft.lb
- Breakdown torque 280 %
- Rated torque 0.999 ft.lb
- Locked rotor time 21s (cold) 12s (hot)
- No load current 5.40/2.33-2.70 A
- Rated speed 1735 rpm
- Slip 3.61 %
- Frequency 60 Hz
- Number of Poles 4
- Rated voltage 115/208-230 V
- Frame W56C
- Rated current 6.00/3.32-3.00 A
- L. R. Amperes 33.6/18.6-16.8 A
- Output 0.33 HP (0.25 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
