00136ET3E143T-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 1 HP
- Rated Speed 3500 rpm
- Flange Type Without
- Number of poles 2
- Terminal box¹ Left position
- Standard NEMA MG-1
- Output rating 1 HP
- Flange Without
- Voltage 230/460//380 V
- Synchronous speed 3600 rpm
- Approx. weight³ 39.1 lb
- Degree of Protection IP55
- Noise level² 68.0 dB(A)
- Mounting F-1
- Rotation¹ Both (CW and CCW)
- Enclosure IC411 - TEFC
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Duty Cycle Cont.(S1)
- Locked rotor time 36s (cold) 20s (hot)
- Breakdown torque 310 %
- No load current 1.54/0.770 A
- Moment of inertia (J) 0.0332 sq.ft.lb
- Service factor 1.25
- Locked rotor torque 220 %
- Rated torque 1.50 ft.lb
- Insulation Class F
- Frame 143/5T
- Slip 2.78 %
- Number of Poles 2
- Rated speed 3500 rpm
- Frequency 60 Hz
- Rated current 2.94/1.47 A
- L. R. Amperes 24.1/12.1 A
- Output 1 HP (0.75 kW)
- Rated voltage 230/460 V
- LRC 8.2x(Code L)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00136ET3E143T-W22 Related Documents
Manufacturer warranty
00136ET3E143T-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

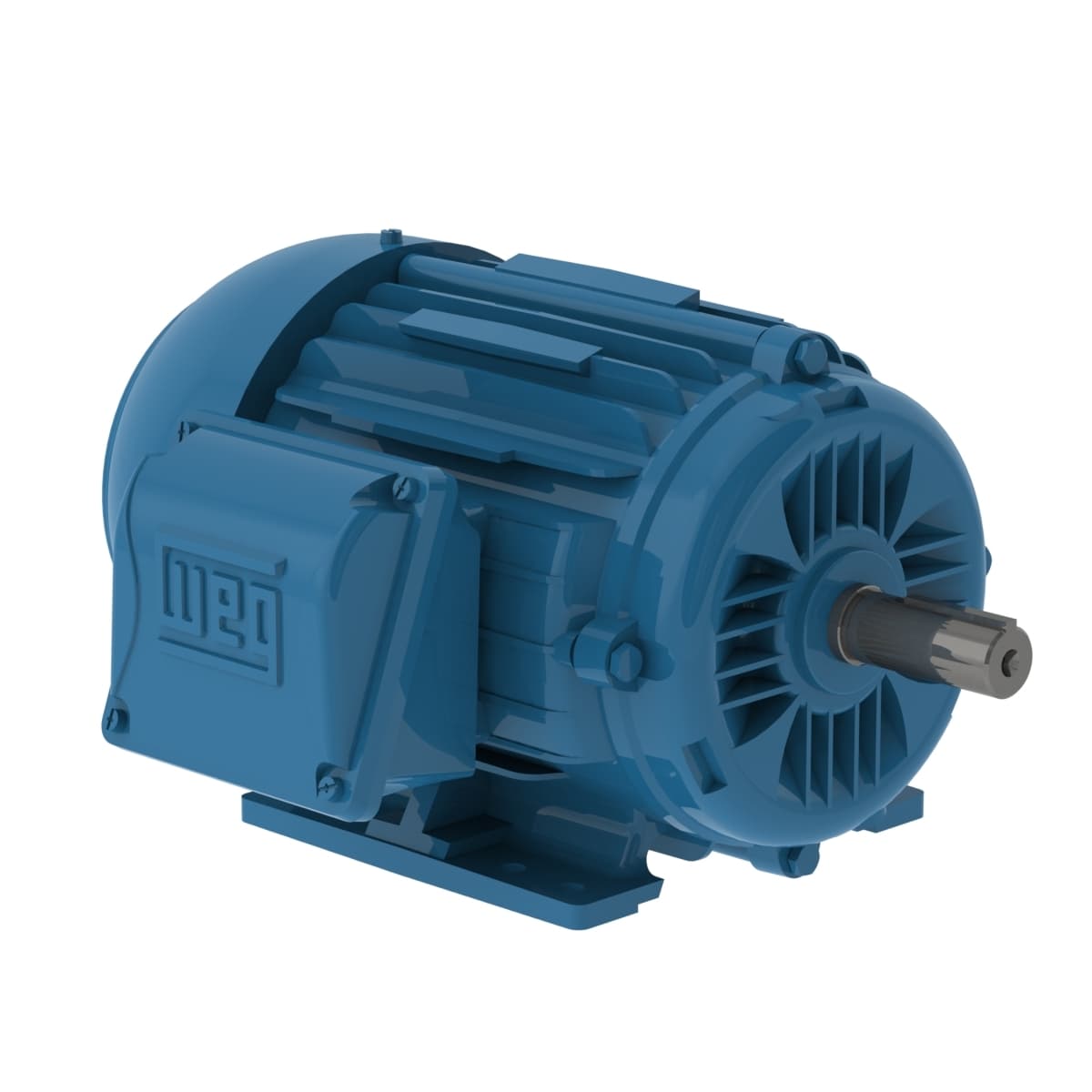

W22 NEMA Premium Efficiency 1 HP 2P 143/5T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
