00236XT3H145T WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 2 HP
- Rated Speed 3495 rpm
- Flange Type Without
- Voltage 575 V
- Output rating 2 HP
- Flange Without
- Terminal box¹ Left position
- Approx. weight³ 71.6 lb
- Synchronous speed 3600 rpm
- Number of poles 2
- Service factor 1.15
- Rotation¹ Both (CW and CCW)
- Noise level² 68.0 dB(A)
- Standard NEMA MG-1
- Mounting F-1
- Enclosure IC411 - TEFC
- Ambient temperature -20°C to +40°C
- Degree of Protection IP55
- Locked rotor time 27s (cold) 15s (hot)
- Altitude 1000 m.a.s.l.
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Temperature rise 80 K
- Insulation Class F
- Design B
- Moment of inertia (J) 0.0551 sq.ft.lb
- Breakdown torque 420 %
- LRC 9.2x(Code L)
- Rated torque 3.01 ft.lb
- No load current 0.960 A
- Locked rotor torque 370 %
- Rated voltage 575 V
- Rated current 2.15 A
- L. R. Amperes 19.8 A
- Rated speed 3495 rpm
- Slip 2.92 %
- Frequency 60 Hz
- Number of Poles 2
- Frame 143/5T
- Output 2 HP (1.5 kW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00236XT3H145T Related Documents
Manufacturer warranty
00236XT3H145T WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

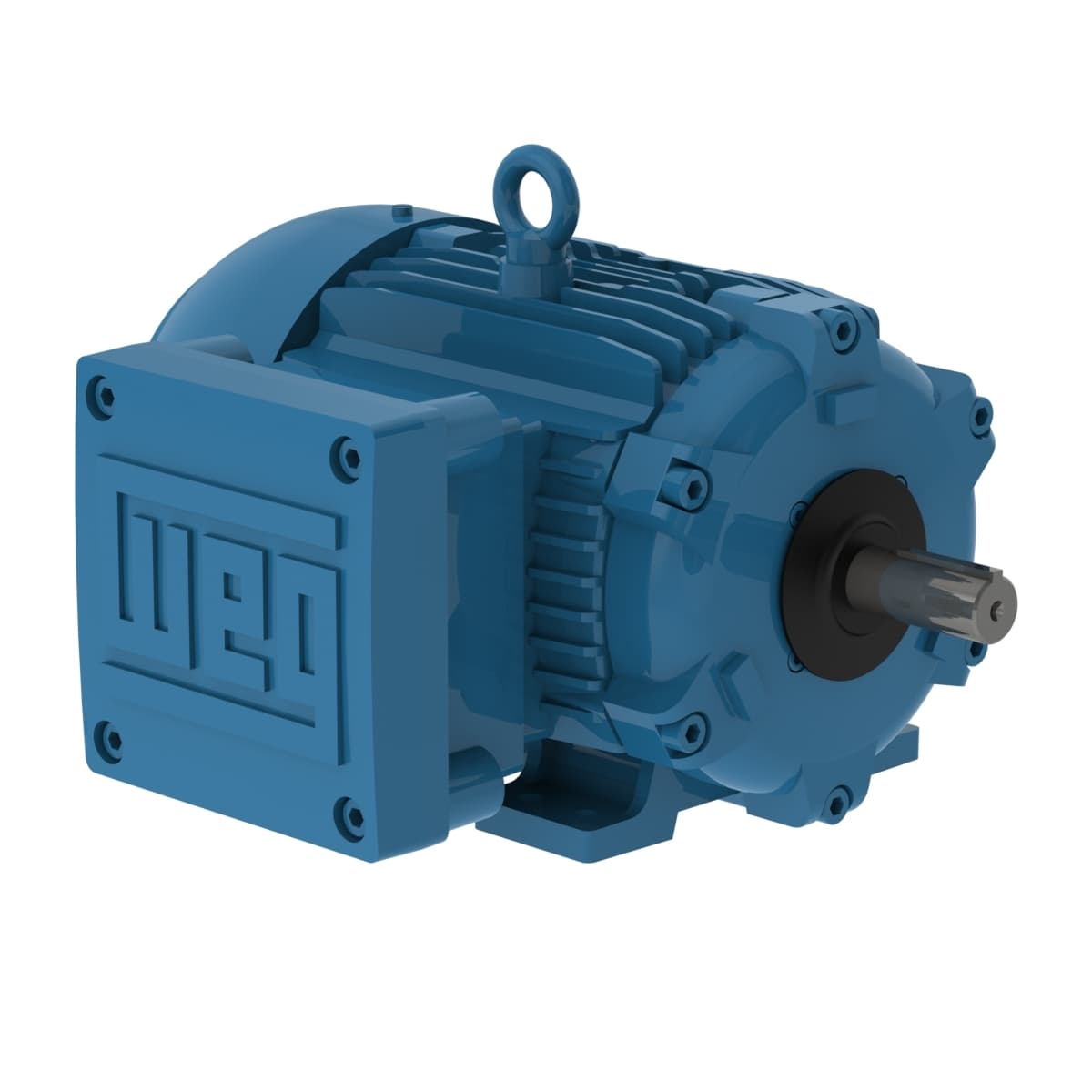

W21 Explosion-proof Motor NEMA Premium Efficiency 2 HP 2P 143/5T 3Ph 575 V 60 Hz IC411 - TEFC - Foot-mounted
