00336ET3E182T-W22 WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 230/460 V
- Output Rating 3 HP
- Rated Speed 3515 rpm
- Flange Type Without
- Slip 2.36 %
- Design B
- Altitude 1000 m.a.s.l.
- LRC 8.6x(Code K)
- Rated torque 4.48 ft.lb
- Rotation¹ Both (CW and CCW)
- Number of Poles 2
- Breakdown torque 380 %
- Ambient temperature -20°C to +40°C
- Number of poles 2
- Output 3 HP (2.2 kW)
- Flange Without
- L. R. Amperes 64.7/32.3 A
- Insulation Class F
- Degree of Protection IP55
- Service factor 1.25
- Noise level² 66.0 dB(A)
- No load current 3.20/1.60 A
- Temperature rise 80 K
- Enclosure IC411 - TEFC
- Moment of inertia (J) 0.1889 sq.ft.lb
- Mounting F-1
- Output rating 3 HP
- Frequency 60 Hz
- Standard NEMA MG-1
- Frame 182/4T
- Rated voltage 230/460 V
- Duty Cycle Cont.(S1)
- Approx. weight³ 77.2 lb
- Terminal box¹ Left position
- Rated current 7.52/3.76 A
- Locked rotor torque 250 %
- Voltage 230/460//380 V
- Rated speed 3515 rpm
- Synchronous speed 3600 rpm
- Locked rotor time 46s (cold) 26s (hot)
- Starting Method Direct On Line
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
00336ET3E182T-W22 Related Documents
Manufacturer warranty
00336ET3E182T-W22 WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

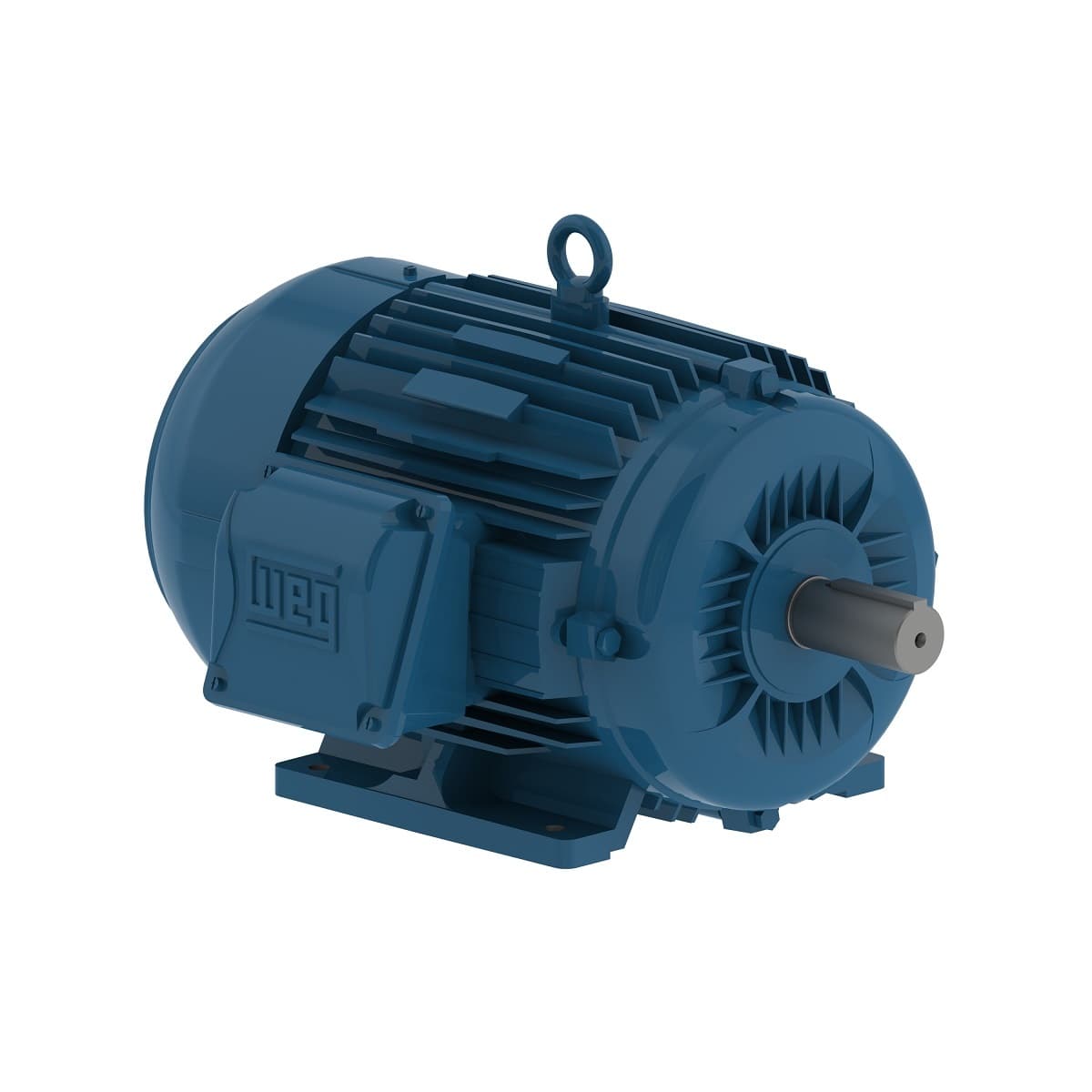

W22 NEMA Premium Efficiency 3 HP 2P 182/4T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
