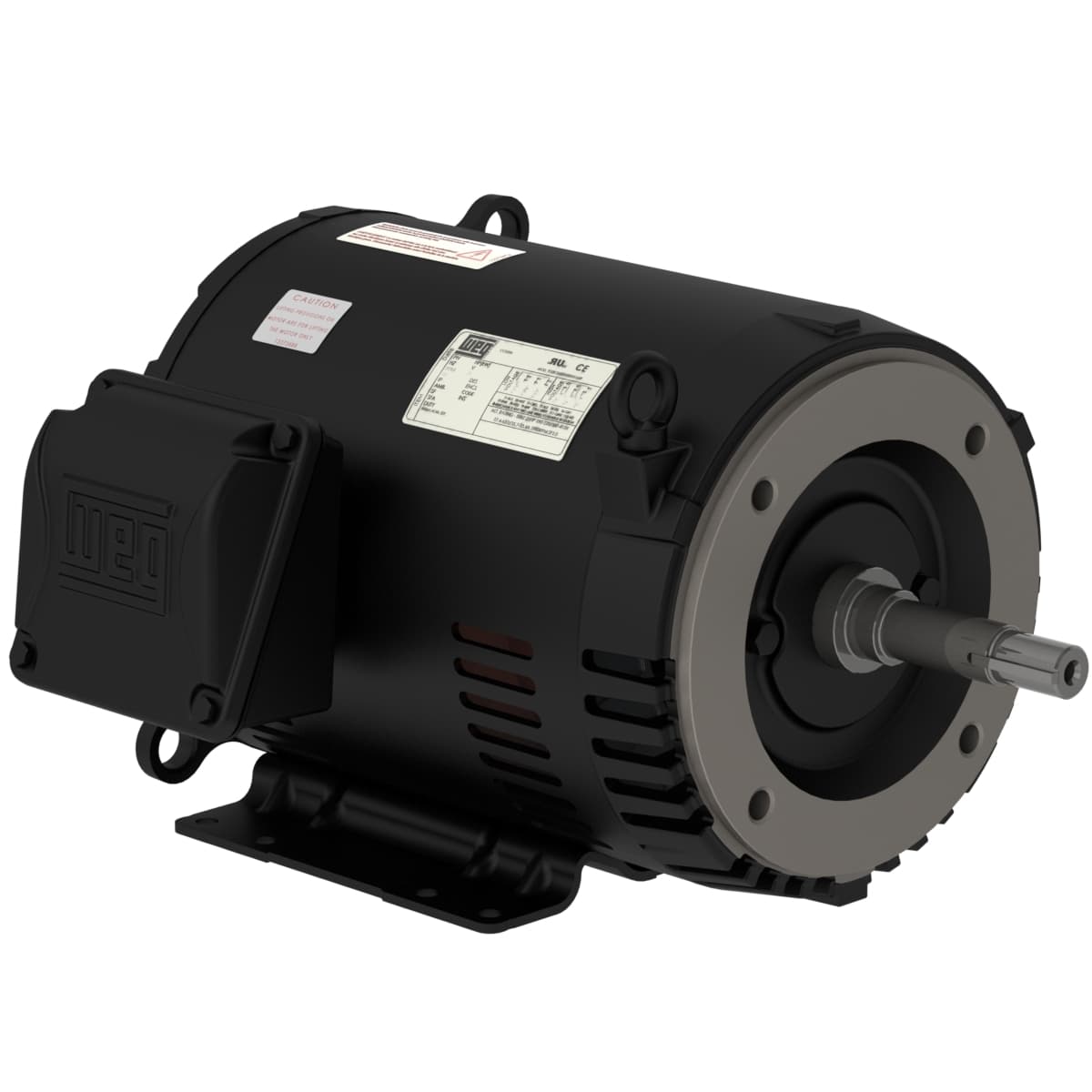

00718OT3H213JM-S WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 575 V
- Output Rating 7.5 HP
- Rated Speed 1770 rpm
- Flange Type C
- Terminal box¹ Left position
- Flange C
- Output rating 7.5 HP
- Number of poles 4
- Synchronous speed 1800 rpm
- Approx. weight³ 126 lb
- Standard NEMA MG-1
- Voltage 575 V
- Noise level² 59.0 dB(A)
- Enclosure IC01 - ODP
- Rotation¹ Both (CW and CCW)
- Mounting F-1
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Starting Method Direct On Line
- Insulation Class F
- Duty Cycle Cont.(S1)
- Design B
- Service factor 1.15
- LRC 7.2x(Code H)
- Moment of inertia (J) 1.03 sq.ft.lb
- Breakdown torque 320 %
- No load current 3.51 A
- Rated torque 22.3 ft.lb
- Locked rotor time 23s (cold) 13s (hot)
- Locked rotor torque 240 %
- Number of Poles 4
- Frequency 60 Hz
- Rated speed 1770 rpm
- Rated voltage 575 V
- Output 7.5 HP (5.5 kW)
- L. R. Amperes 53.3 A
- Slip 1.67 %
- Rated current 7.40 A
- Frame 213/5JM
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
