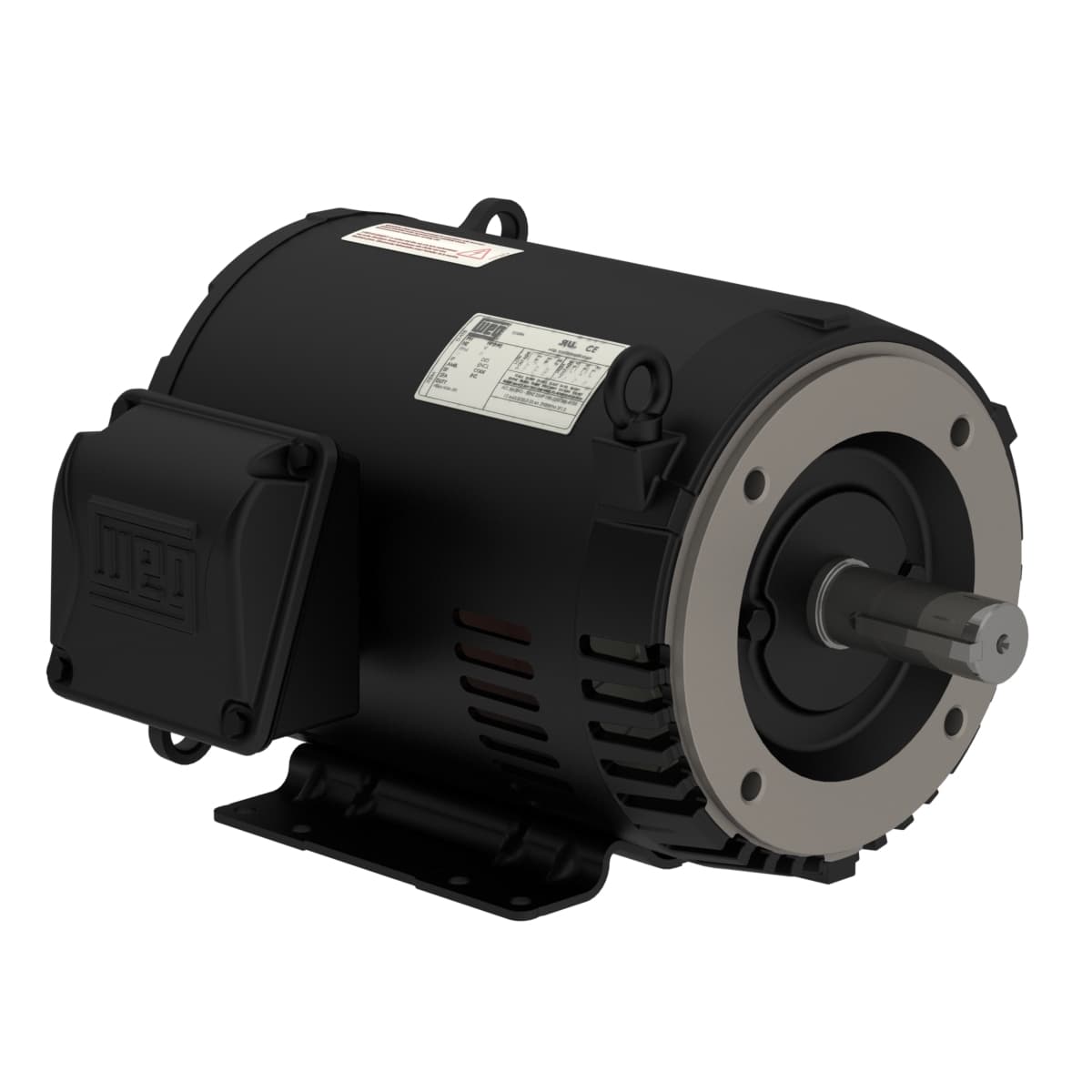

01036OT3H213TC-S WEG AC Motors
Product Details
- Number of Poles 2 Pole
- Voltage 575 V
- Output Rating 10 HP
- Rated Speed 3535 rpm
- Flange Type C
- Flange C
- L. R. Amperes 65.3 A
- Locked rotor torque 200 %
- Mounting F-1
- Synchronous speed 3600 rpm
- Rated voltage 575 V
- Rated torque 14.9 ft.lb
- Ambient temperature -20°C to +40°C
- Rated speed 3535 rpm
- Service factor 1.15
- Approx. weight³ 125 lb
- Frequency 60 Hz
- No load current 3.73 A
- Starting Method Direct On Line
- Terminal box¹ Left position
- Rated current 9.60 A
- LRC 6.8x(Code H)
- Locked rotor time 19s (cold) 11s (hot)
- Temperature rise 80 K
- Altitude 1000 m.a.s.l.
- Noise level² 66.0 dB(A)
- Number of poles 2
- Slip 1.81 %
- Output 10 HP (7.5 kW)
- Breakdown torque 280 %
- Insulation Class F
- Duty Cycle Cont.(S1)
- Enclosure IC01 - ODP
- Voltage 575 V
- Output rating 10 HP
- Number of Poles 2
- Moment of inertia (J) 0.4651 sq.ft.lb
- Standard NEMA MG-1
- Frame 213/5TC
- Design B
- Rotation¹ Both (CW and CCW)
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
