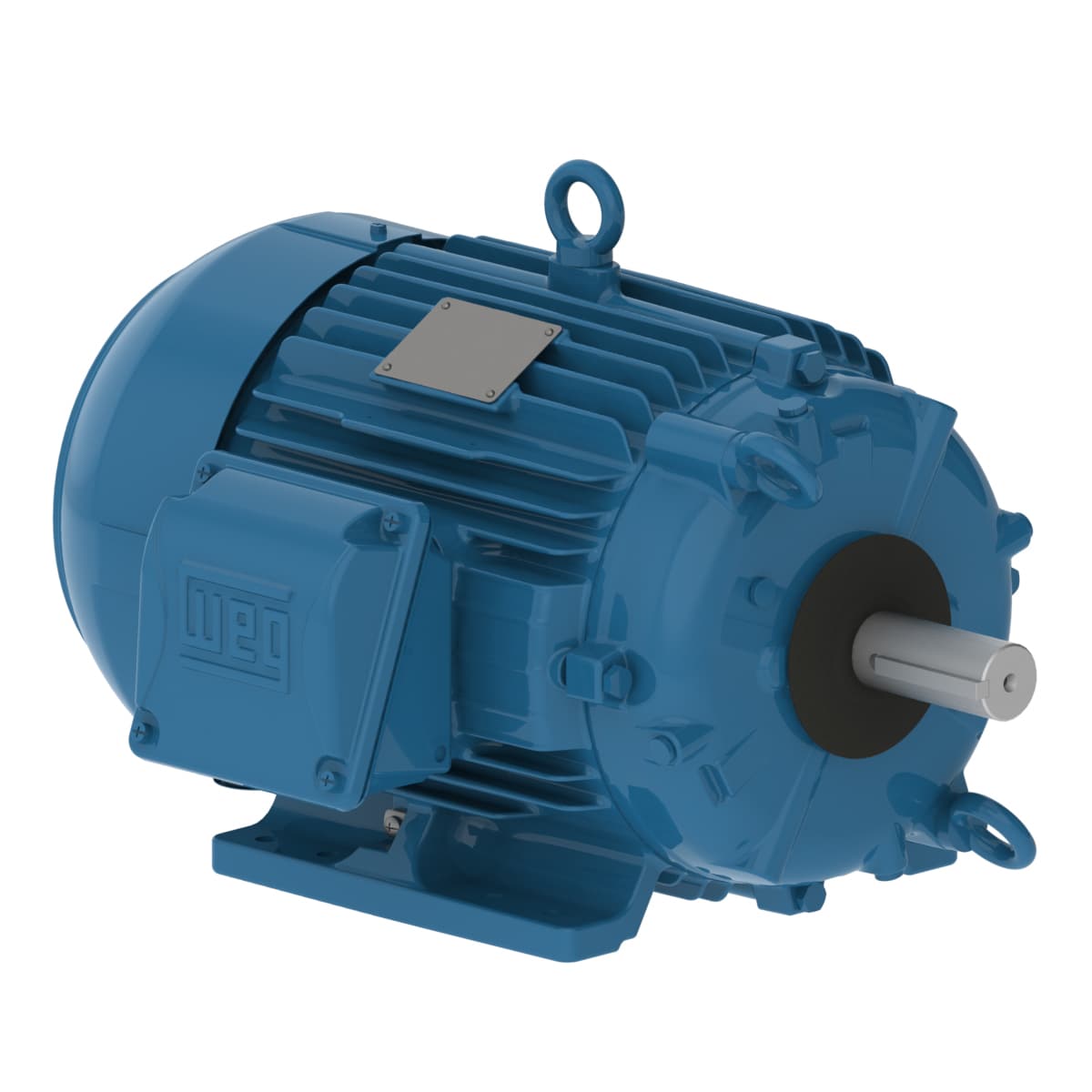

01089EP3HCT215VF1-W2 WEG AC Motors
Product Details
- Number of Poles 45508 Pole
- Voltage 575 V
- Output Rating 2.5/10 HP
- Rated Speed 1765 rpm
- Flange Type Without
- Output rating 2.5/10 HP
- Terminal box¹ Left position
- Flange Without
- Voltage 575 V
- Synchronous speed 900/1800 rpm
- Number of poles 8/4
- Standard NEMA MG-1
- Noise level² 61.0 dB(A)
- Approx. weight³ 2.2 lb
- Rotation¹ Both (CW and CCW)
- Duty Cycle Cont.(S1)
- Starting Method Direct On Line
- Mounting F-1
- Enclosure IC411 - TEFC
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Ambient temperature -20°C to +40°C
- Temperature rise 80 K
- Insulation Class F
- Service factor 1.15
- No load current 5.76 A
- Locked rotor time 10s (cold) 6s (hot)
- Breakdown torque 300 %
- Moment of inertia (J) 1.56 sq.ft.lb
- Locked rotor torque 210 %
- Rated torque 29.8 ft.lb
- LRC 7.0x(Code J)
- Frequency 60 Hz
- Number of Poles 8/4
- Output 10 HP (7.5 kW)
- L. R. Amperes 72.8 A
- Rated speed 1765 rpm
- Rated current 10.4 A
- Rated voltage 575 V
- Slip 1.94 %
- Frame 213/5T
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
