02018XT3E256T WEG AC Motors
Product Details
- Number of Poles 4 Pole
- Voltage 230/460 V
- Output Rating 20 HP
- Rated Speed 1770 rpm
- Flange Type Without
- Synchronous speed 1800 rpm
- Terminal box¹ Left position
- Flange Without
- Number of poles 4
- Output rating 20 HP
- Approx. weight³ 375 lb
- Standard NEMA MG-1
- Voltage 230/460//380 V
- Noise level² 69.0 dB(A)
- Mounting F-1
- Enclosure IC411 - TEFC
- Rotation¹ Both (CW and CCW)
- Degree of Protection IP55
- Altitude 1000 m.a.s.l.
- Starting Method Direct On Line
- Temperature rise 80 K
- Ambient temperature -20°C to +40°C
- Duty Cycle Cont.(S1)
- Service factor 1.15
- No load current 23.6/11.8 A
- Locked rotor time 36s (cold) 20s (hot)
- Locked rotor torque 300 %
- Moment of inertia (J) 2.89 sq.ft.lb
- Breakdown torque 300 %
- Rated torque 59.3 ft.lb
- Insulation Class F
- Design B
- LRC 7.5x(Code J)
- Frame 256T
- Rated voltage 230/460 V
- L. R. Amperes 375/188 A
- Slip 1.67 %
- Rated speed 1770 rpm
- Frequency 60 Hz
- Rated current 50.0/25.0 A
- Output 20 HP (15 kW)
- Number of Poles 4
Product condition
New Factory Sealed
New Factory Sealed - New condition, never used, original OEM part with original packaging and factory seal.
02018XT3E256T Related Documents
Manufacturer warranty
02018XT3E256T WEG
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
Fast Shipping & Delivery
We deliver nationwide and international
Secure Payment Processing
with money back guarantee
Warranty On All Parts
Manufacturer warranty
Responsive Customer Support
Let us know how we can help!
Need more details?
Feel free to chat with us
About the manufacturer
Advantage Electric Supply is an authorized WEG distributor, proudly offering a comprehensive range of products from this renowned global manufacturer specializing in electric motors, automation, and energy solutions. WEG stands as a leader in innovation and quality, providing advanced solutions that cater to various industrial needs. Their diverse product portfolio includes low and medium voltage ...
Recently viewed products
Relevant products
FAQ
Out if stock but available for backorder.
We're dedicated to getting your orders to you as fast as possible and offer different shipping options to make sure you get what you need on time.
We're fully committed to delivering quality you can trust. If something isn't quite right, you have 30 days to return it. And should a part be defective, our 1-year warranty ensures you're covered.

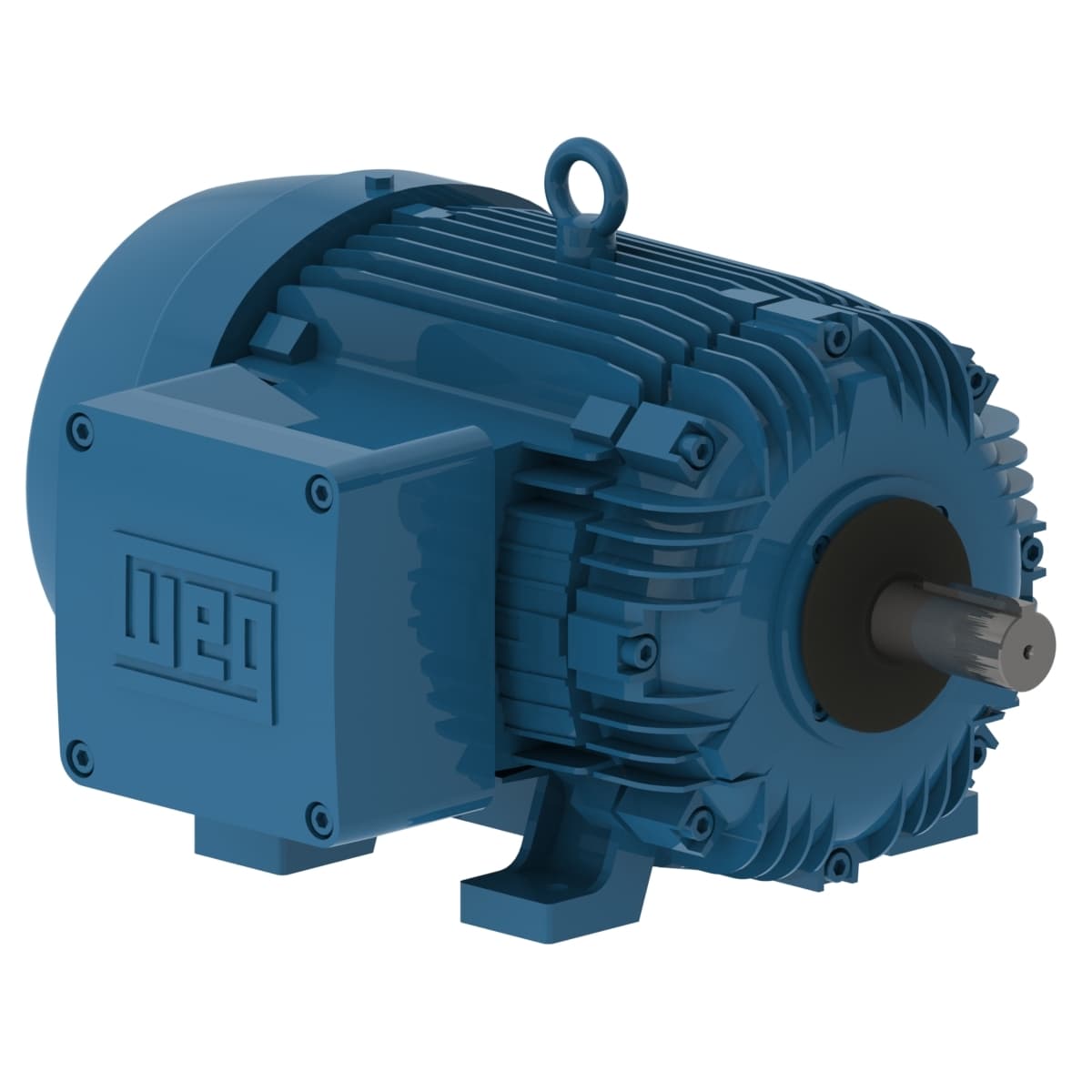

W21 Explosion-proof Motor NEMA Premium Efficiency 20 HP 4P 256T 3Ph 230/460//380 V 60//50 Hz IC411 - TEFC - Foot-mounted
